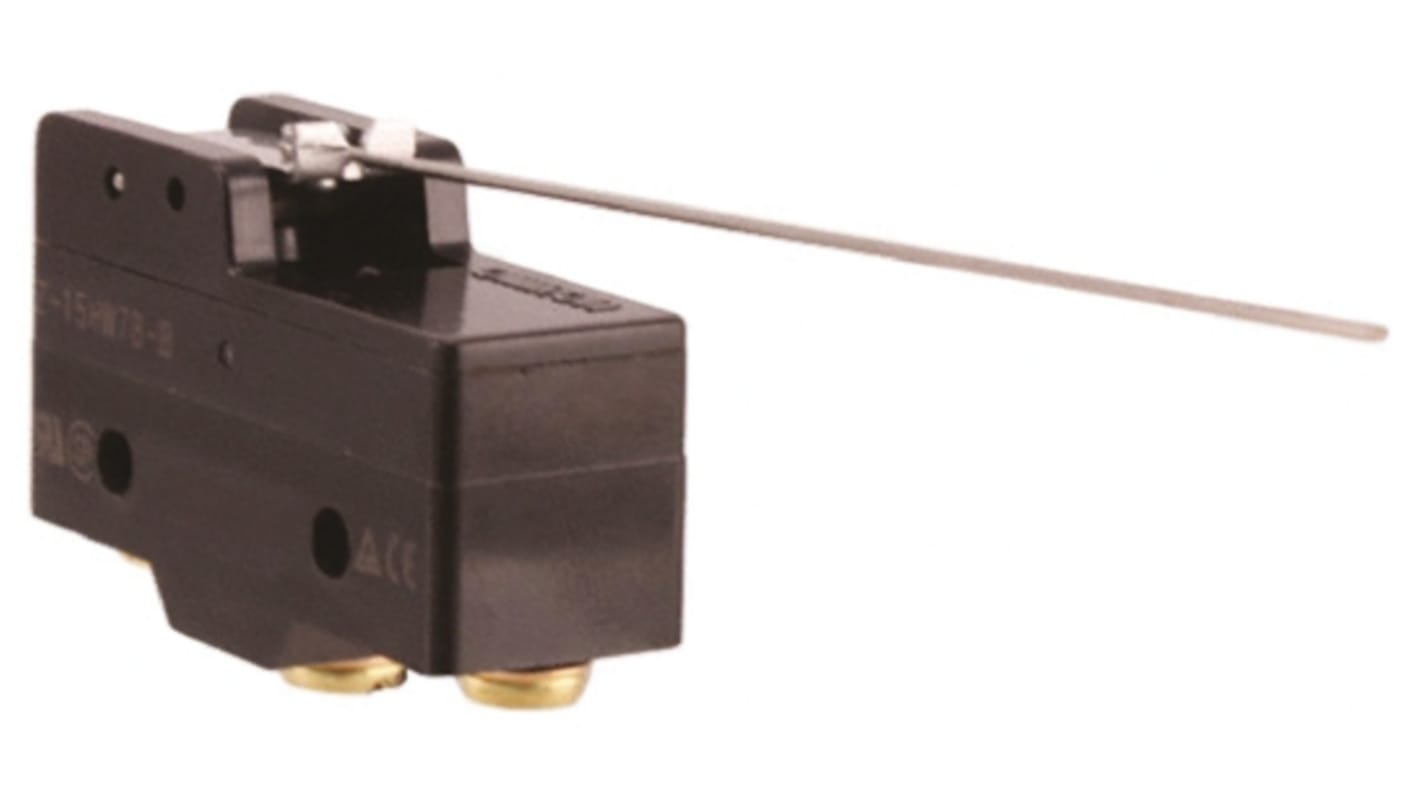

IP00 Snap Action Limit Switch Lever Thermosetting Resin, NO/NC, 250V

  • RS Stock No. 776-8573
  • Mfr. Part No. Z15HW78
  • Manufacturer Omron
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

Z15 Series – Basic Switch

The Z series of basic switches from Omron are in plastic housing however still provide the same electrical and mechanical switching capability and lifetime as standard limit switches. These basic switches are ideal for use in uncritical environments or when separately encased in subassemblies.

High precision basic switch in a wide range of variations
Large switching capacity of 15A with high repeat accuracy
Contact configuration: SPDT
Contact rating: 250Vac 15A, 14Vdc 15A
Contact Gap either 0.5mm (Standard) or 1.8mm (High Capacity)

Approvals

UL recognised, CSA

Specifications
Attribute Value
Actuator Type Lever
Pole and Throw Configuration SPDT
Normal State Configuration NO/NC
IP Rating IP00
Maximum Current 15 A
Housing Material Thermosetting Resin
Maximum AC Voltage 250V
Maximum DC Voltage 250V
Connection Type Solder
Contact Type Snap Action
Terminal Type PCB Pin
Length 49.2mm
Width 32.4mm
Dimensions 49.2 x 32.4 x 17.45 mm
Mechanical Life Minimum 20000000 Operations
Depth 17.45mm
Minimum Operating Temperature -25°C
Maximum Operating Temperature +80°C
