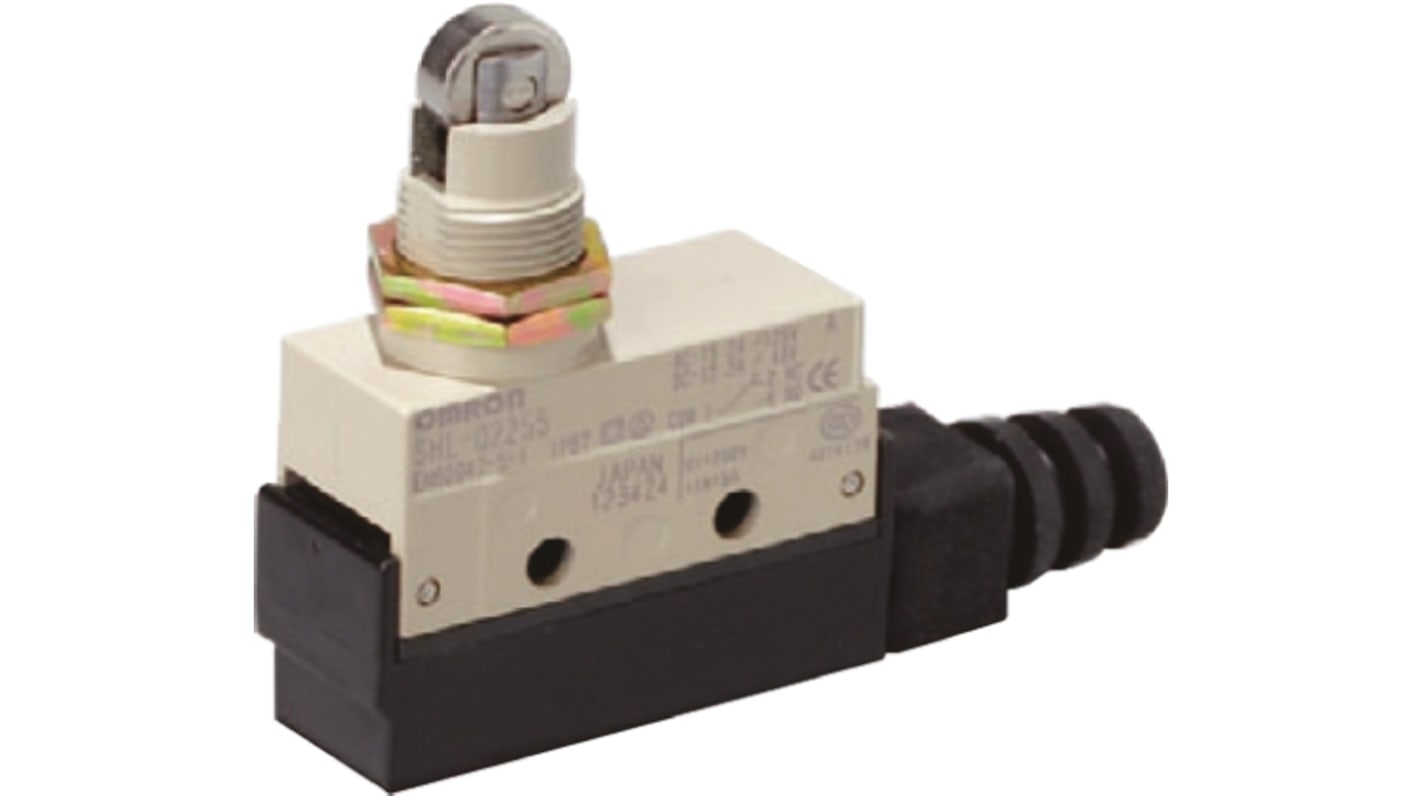

IP67 Snap Action Limit Switch Plunger, NO/NC, 480V

  • RS Stock No. 752-9911
  • Mfr. Part No. SHL-Q2155
  • Manufacturer Omron
Technical data sheets
Legislation and Compliance
Non Compliant
COO (Country of Origin): JP
Product Details

Enclosed Switch Hinge Roller Levers / Plungers

Incorporates a switch with durable coil spring in a high precision case
Compact using a single switch for applications where strength is required
Terminal protective cover can be switched to wire cable from left or right

Standards

EN, UL, CSA, CCC, IEC IP67

Standards

EN, UL, CSA, CCC, IEC IP67

Specifications
Attribute Value
Actuator Type Plunger
Pole and Throw Configuration SPDT
Normal State Configuration NO/NC
IP Rating IP67
Maximum Current 2 A ac, 200 mA dc
Maximum AC Voltage 480V
Maximum DC Voltage 250V
Connection Type Screw
Contact Type Snap Action
Terminal Type Screw
Length 73.5mm
Width 35.9mm
Dimensions 73.5 x 35.9 x 17.5 mm
Minimum Operating Temperature -10°C
Depth 17.5mm
Maximum Operating Temperature +80°C
Mechanical Life Minimum 10000000 Operations
Mounting Orientation Side
18 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 180.03
units
Per unit
1 +
MYR180.03
