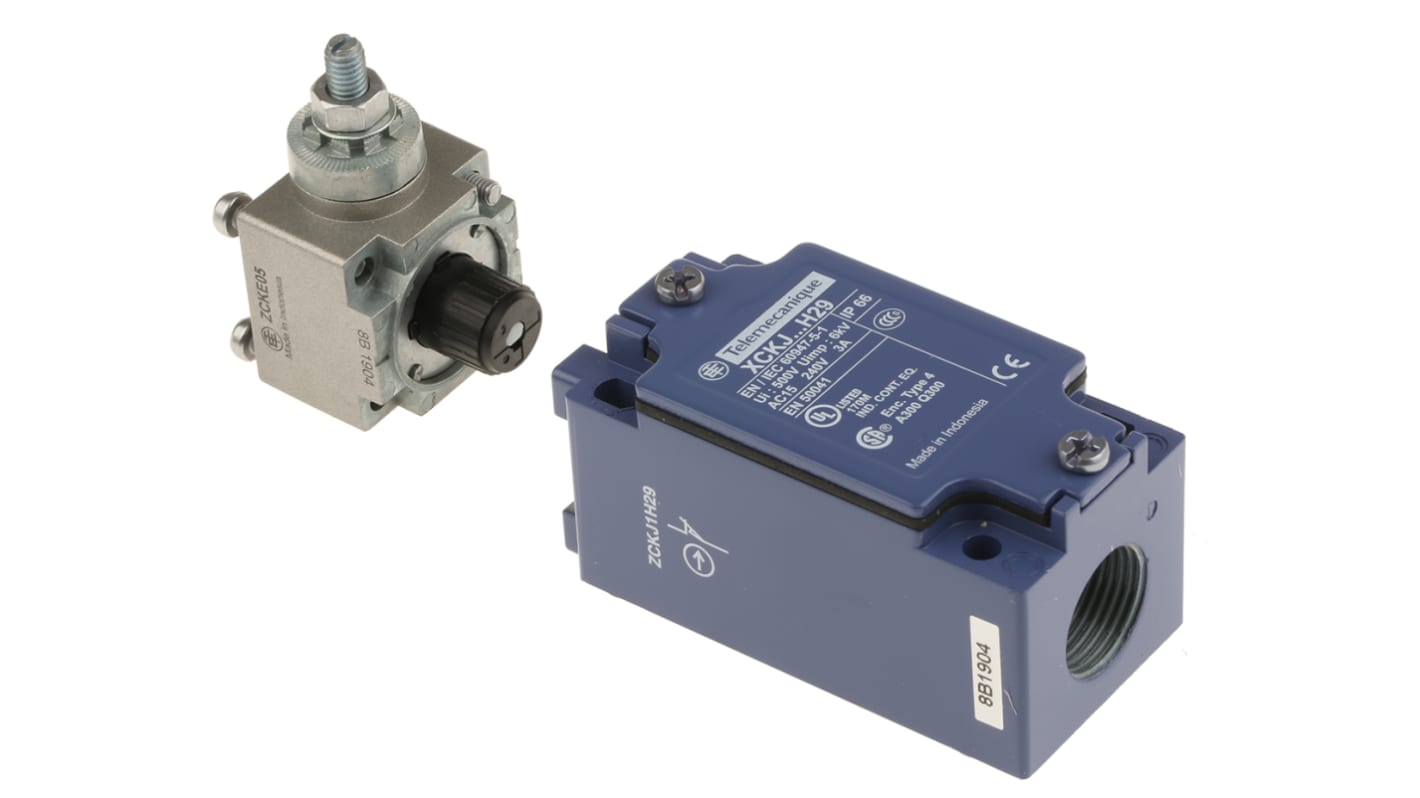

Telemecanique Sensors OsiSense XC Series Lever Limit Switch, NO/NC, IP66, SPDT, Zinc Alloy Housing, 240V ac Max, 10A Max
- RS Stock No.:
- 700-4309
- Mfr. Part No.:
- XCKJ10541H29
- Manufacturer:
- Telemecanique Sensors
33 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
189 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR547.66
| Units | Per Unit |
| 1 + | MYR547.66 |
- RS Stock No.:
- 700-4309
- Mfr. Part No.:
- XCKJ10541H29
- Manufacturer:
- Telemecanique Sensors
Legislation and Compliance
- COO (Country of Origin):
- ID
Product Details
Metal Units Complete With Actuators (XCKJ)
Complete limit switch assemblies can be constructed using ZCKJ limit bodies and ZCKE/Y limit switch heads and actuators.
How does a limit switch work?
Rated 240V 3A at AC15 10A Ith
Snap action NC contacts with positive opening operation
-25 to +70°C operating temperature
Comes with a pre-tapped 1/2" NPT cable gland entry
Snap action NC contacts with positive opening operation
-25 to +70°C operating temperature
Comes with a pre-tapped 1/2" NPT cable gland entry
Standards
VDE0660, IEC947-5-1
Approvals
UL, CSA
Approvals
UL; CSA
Telemecanique, Square D & Crouzet
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Lever |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP66 |
| Maximum Current | 10A |
| Housing Material | Zinc Alloy |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Series | OsiSense XC |
| Action Type | Snap Action |
| Length | 77mm |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -25°C |
| Width | 40mm |
| Depth | 44mm |
| Mechanical Life | 30000000Cycles |
