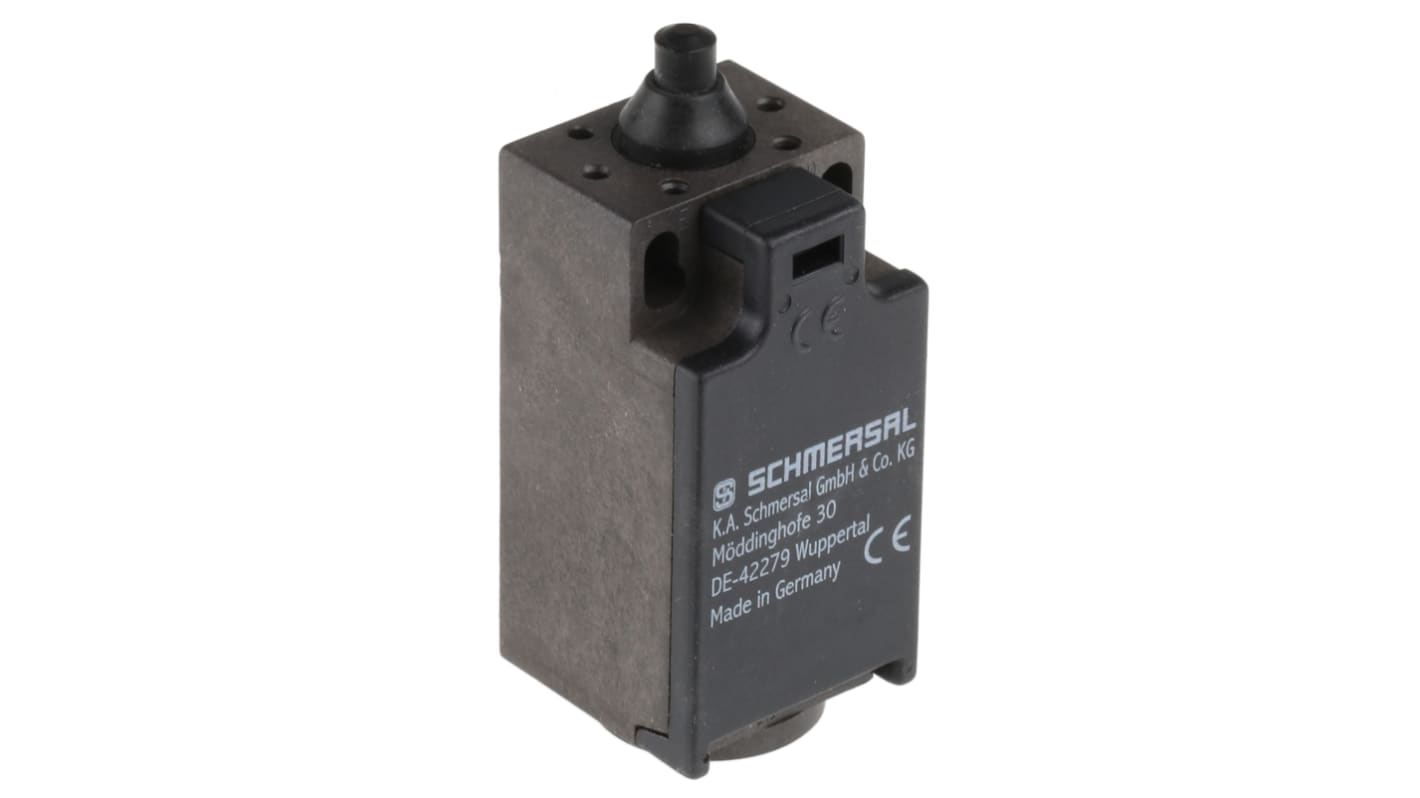

IP67 Snap Action Limit Switch Plunger Thermoplastic, NO/NC, 230V

  • RS Stock No. 470-4403
  • Mfr. Part No. ZS 236-11Z
  • Manufacturer Schmersal
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Plastic Limit Switch

Design with snap-action contact element and positive break contact
All contact bridges have a double break and are galvanically isolated from each other
One N/C and one N/O
N/C contacts are positive break contacts in accordance with IEC 204 / DIN VDE 0113 and fulfil the requirements of DIN VDE 0660 Part 206 (security feature)

//media.rs-online.com/t_line/LA103295-01.gif
Specifications
Attribute Value
Actuator Type Plunger
Normal State Configuration NO/NC
IP Rating IP67
Maximum Current 10 A
Housing Material Thermoplastic
Maximum AC Voltage 230V
Maximum DC Voltage 24V
Contact Type Snap Action
Terminal Type Screw
Length 61.5mm
Width 30mm
Dimensions 61.5 x 30 x 30 mm
Depth 30mm
Minimum Operating Temperature -30°C
Mechanical Life Minimum 20000000 cycles
Maximum Operating Temperature +80°C
180 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 151.60
units
Per unit
1 +
MYR151.60
