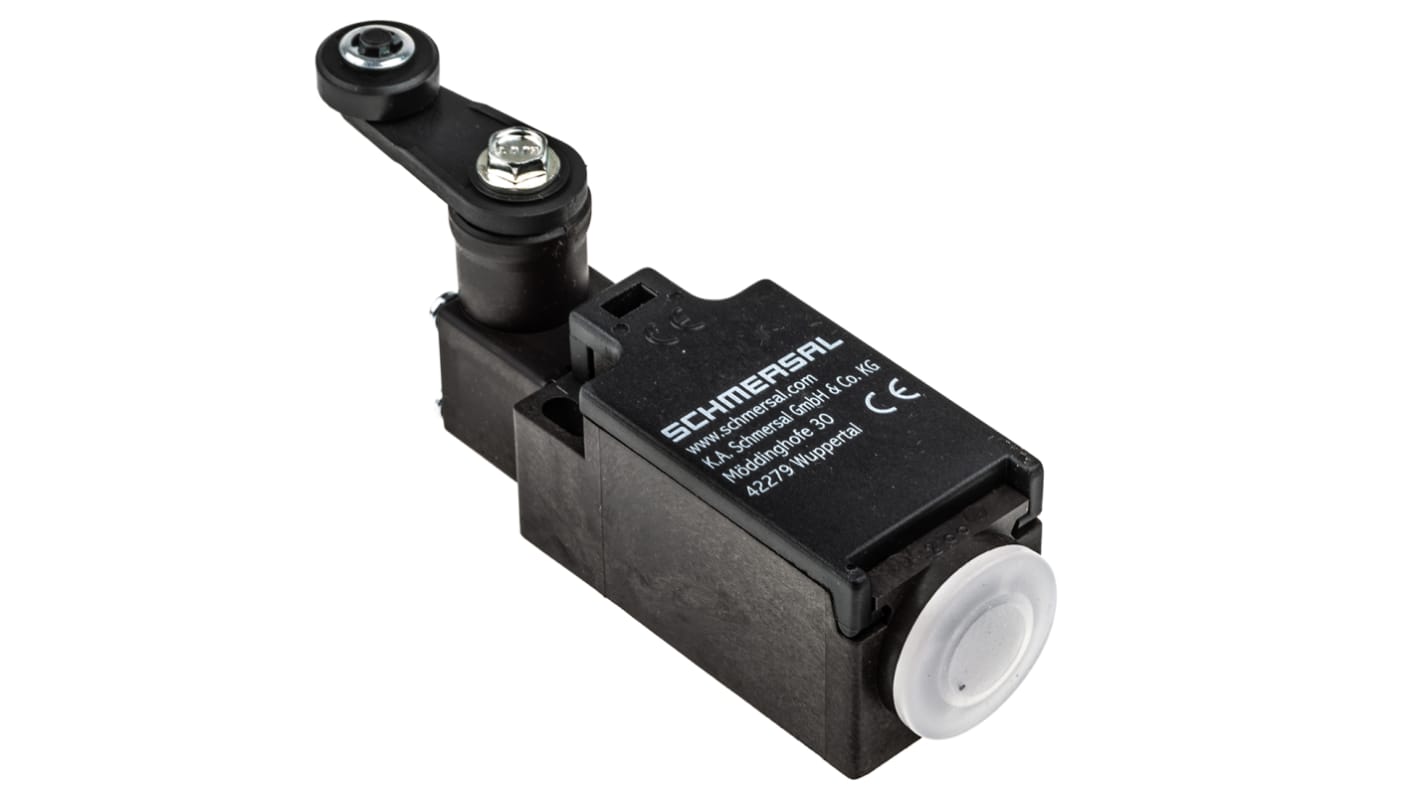

Schmersal, Slow Action Limit Switch - Thermoplastic, NO/NC, Lever, 230V, IP67

  • RS Stock No. 470-4396
  • Mfr. Part No. TV1H 236-11z
  • Manufacturer Schmersal
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Plastic Limit Switch

Design with slow-action contact element and positive break contact
All contact bridges have a double break and are galvanically isolated from each other
Switch with one N/C and one N/O
N/C contacts are positive break contacts in accordance with IEC 204 / DIN VDE 0113 and fulfil the requirements of DIN VDE 0660 Part 206 (security feature)

Specifications
Attribute Value
Actuator Type Lever
Pole and Throw Configuration DPDT
Normal State Configuration NO/NC
IP Rating IP67
Maximum Current 4 A
Housing Material Thermoplastic
Maximum AC Voltage 230V
Maximum DC Voltage 24V
Contact Type Slow Action
Terminal Type Screw
Length 58.5mm
Width 30mm
Depth 30mm
Minimum Operating Temperature -30°C
Maximum Operating Temperature +80°C
Dimensions 58.5 x 30 x 30 mm
Mechanical Life Minimum 20000000 cycles
Mounting Orientation Axial
11 In Global stock for delivery within 4 - 6 working days
Price Each
Was MYR234.09
MYR 161.51
units
Per unit
1 +
MYR161.51
