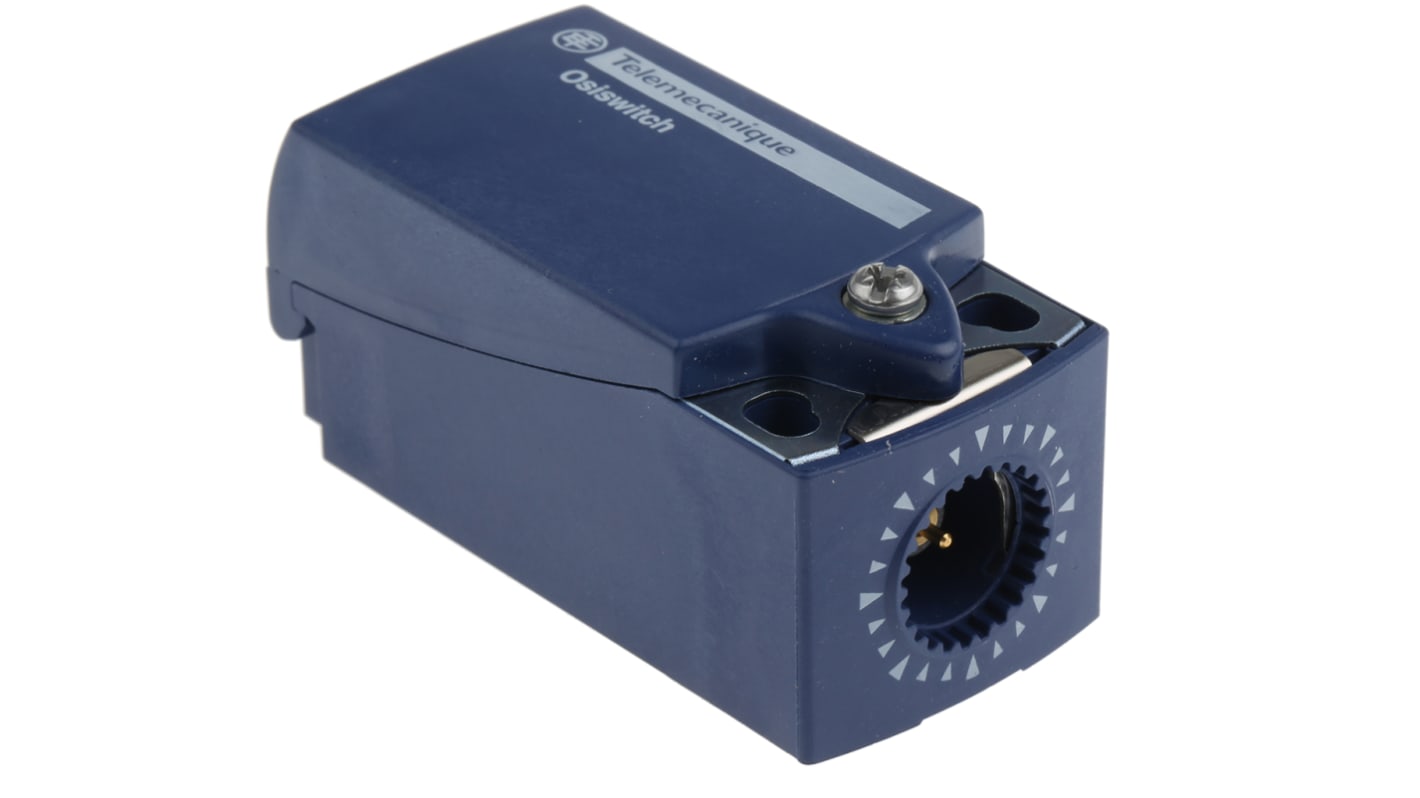

Snap Action Limit Switch Plastic, NO/NC, 240V

Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): ID
Product Details

OsiSwitch Limit Switch Bodies

The OsiSwitch series contains a selection of bodies and levers that are compatible with products from the OsiSense XC limit switch range.

Features & Benefits

Limit Switch Body
Silver plated contacts with snap action
2 Poles
Durable and strong housing
Short circuit protection

Product Application Information

All industrial machines: packaging, materials handling, conveying, machining, food and beverage, service sector.

Features & Benefits

Fixed body
Compact design
Screw clamp terminals

Specifications
Attribute Value
Pole and Throw Configuration DP
Normal State Configuration NO/NC
Maximum Current 1.5 A
Housing Material Plastic
Maximum AC Voltage 240V
Maximum DC Voltage 250V
Series OsiSense XC
Contact Type Snap Action
Terminal Type Screw
Length 65mm
Width 31mm
Minimum Operating Temperature -25°C
Depth 30mm
Dimensions 65 x 31 x 30 mm
Maximum Operating Temperature +70°C
155 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 69.15
units
Per unit
1 +
MYR69.15
