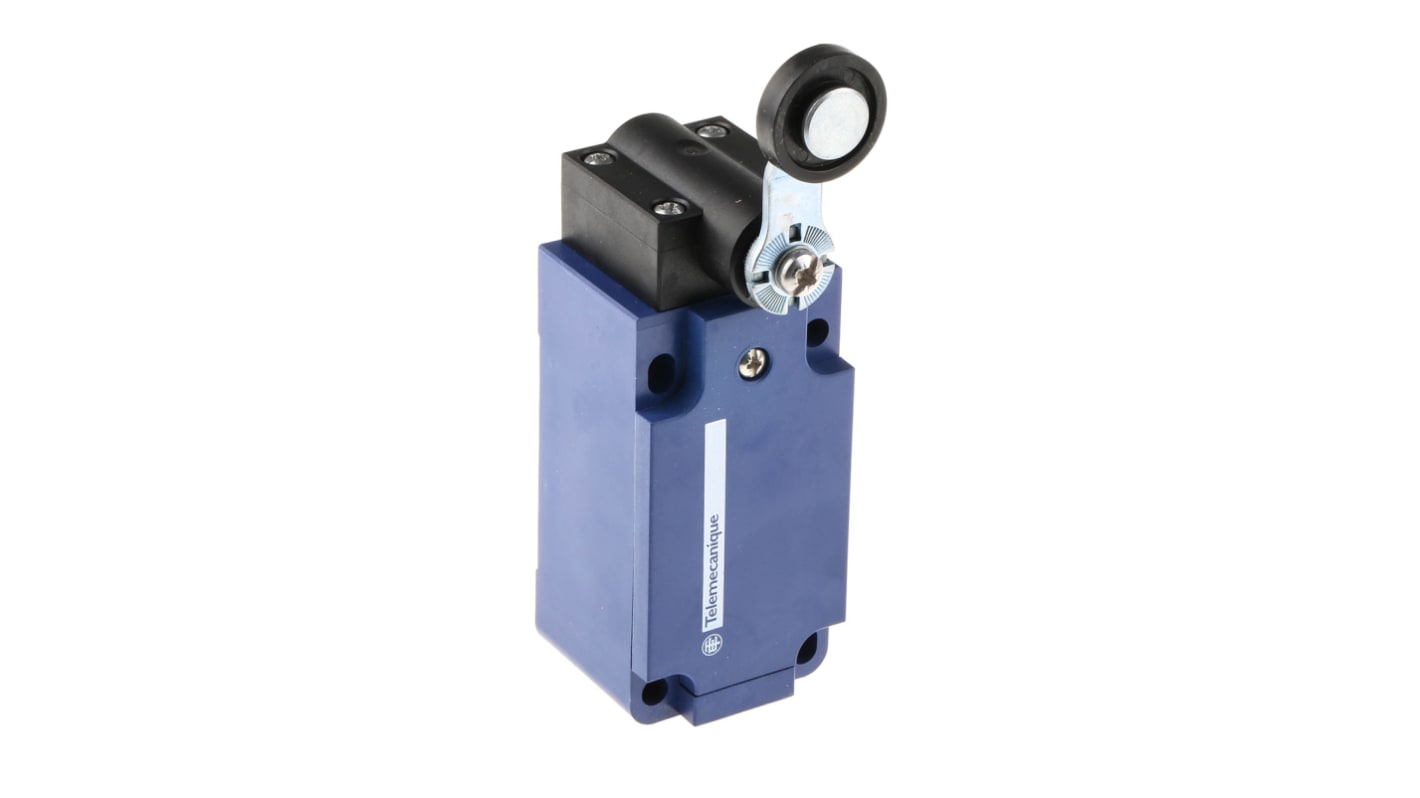

Telemecanique Sensors OsiSense XC Series Lever Limit Switch, NO/NC, IP65, DP, Plastic Housing, 240V ac Max, 3A Max
- RS Stock No.:
- 230-1872
- Mfr. Part No.:
- XCKS131
- Manufacturer:
- Telemecanique Sensors
4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
17 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR298.62
| Units | Per Unit |
| 1 + | MYR298.62 |
- RS Stock No.:
- 230-1872
- Mfr. Part No.:
- XCKS131
- Manufacturer:
- Telemecanique Sensors
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- ID
Product Details
Series XCK-S Position Switches
Introducing Telemecanique XCKS range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle, predominantly used as part of a control system within industrial applications such as those listed before.
How does a limit switch work?
Plastic, quick-breaking position switches.
Standards
IEC 947-5-1, NF C 63-146,
VDE 0660-200, UL 508, EN 50047
VDE 0660-200, UL 508, EN 50047
Telemecanique, Square D & Crouzet
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Lever |
| Pole and Throw Configuration | DP |
| Normal State Configuration | NO/NC |
| IP Rating | IP65 |
| Maximum Current | 3A |
| Housing Material | Plastic |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Series | OsiSense XC |
| Action Type | Snap Action |
| Length | 72.5mm |
| Maximum Operating Temperature | +70°C |
| Depth | 36mm |
| Width | 40mm |
| Minimum Operating Temperature | -25°C |
| Mechanical Life | 20000000Cycles |
