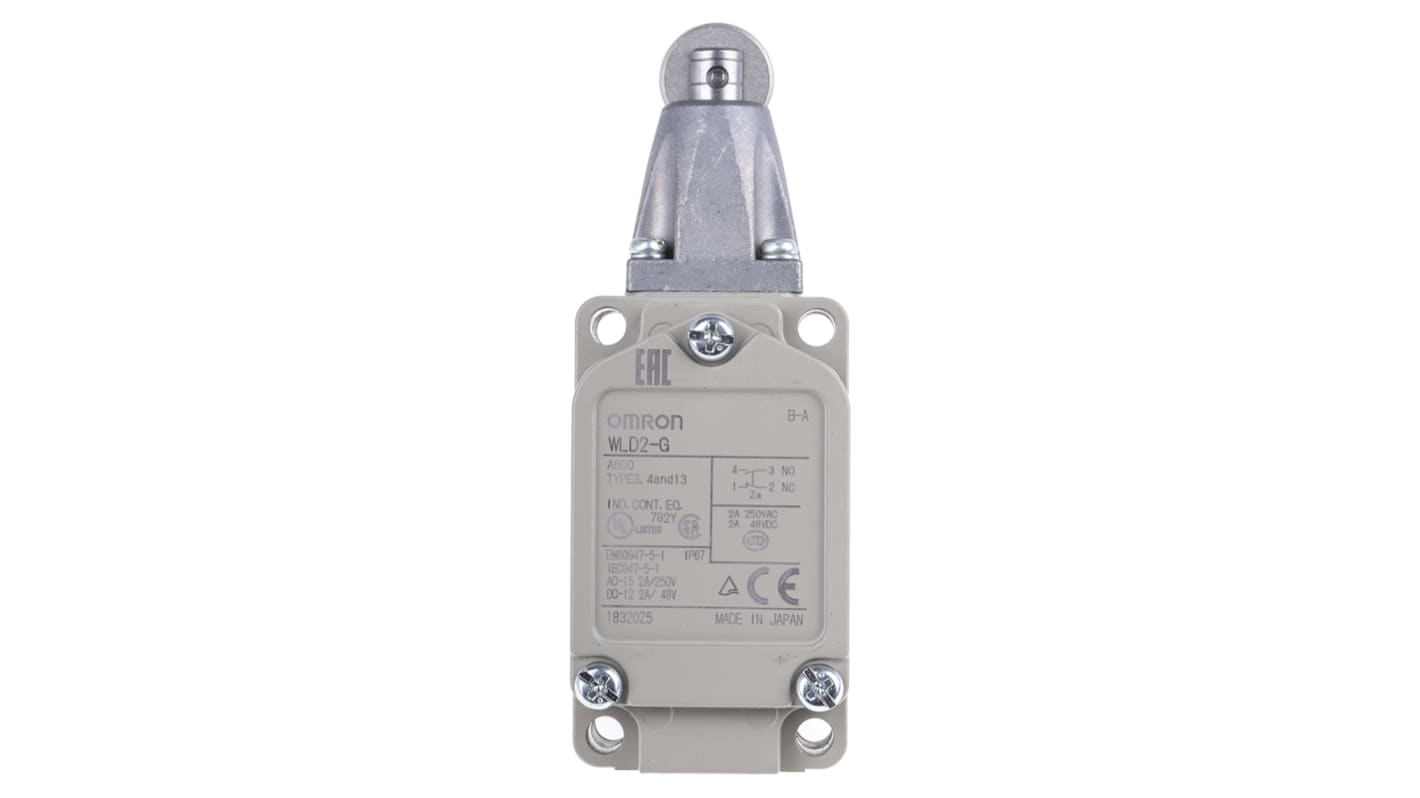

IP67 Snap Action Top Plunger Roller Lever Die Cast Aluminium, NO/NC, 600V

  • RS Stock No. 342-382
  • Mfr. Part No. WLD2-G
  • Manufacturer Omron
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

WL Series General Purpose Limit Switch

Oil-tight, waterproof and dustproof cast aluminium body construction to IP67
Two sets of snap action contacts: N/C and N/O
Contact rating: 10A (Ith250Vac) max. 600ac, 250Vdc
Four position turret head
Operating temperature range: - 10° to +80°C
Set position indicator plate for easy maintenance
Conduit entry PG13.5

Approvals

UL, CSA

//media.rs-online.com/t_line/L342354-04.gif

Approvals

UL; CSA

Specifications
Attribute Value
Actuator Type Roller Lever
Pole and Throw Configuration SPDT
Normal State Configuration NO/NC
IP Rating IP67
Maximum Current 10 A @ 250 V ac
Housing Material Die Cast Aluminium
Maximum AC Voltage 600V
Maximum DC Voltage 250V
Connection Type Snap-On
Series WL
Contact Type Snap Action
Terminal Type Conduit
Length 96.7mm
Width 40mm
Mounting Orientation Side
Mechanical Life Minimum 15000000 Operations
Depth 42mm
Maximum Operating Temperature +80°C
Dimensions 96.7 x 40 x 42 mm
Minimum Operating Temperature -10°C
396 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 408.11
units
Per unit
1 +
MYR408.11
