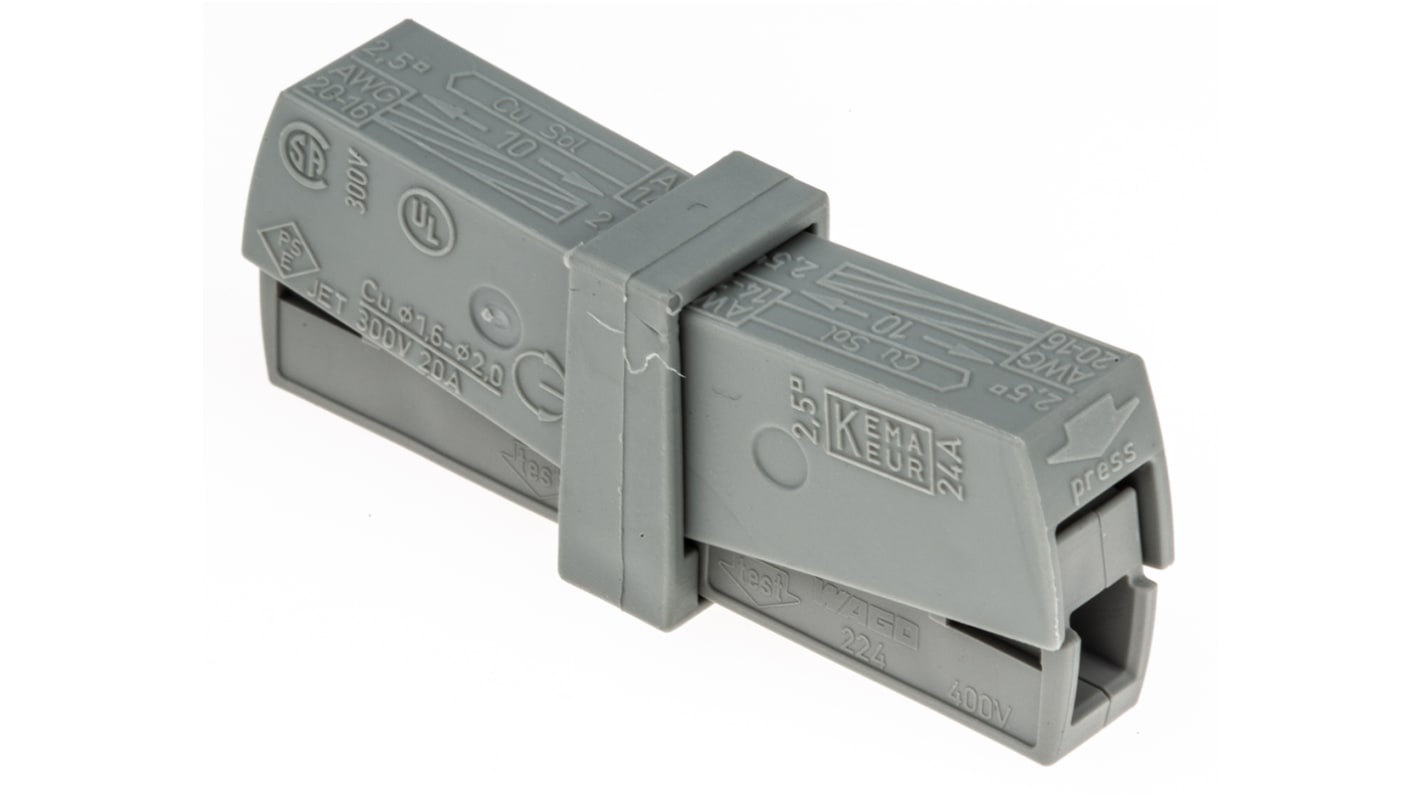

Wago 224 Series, Connector, Rated At 24A, 400 V

  • RS Stock No. 178-6676
  • Mfr. Part No. 224-201
  • Manufacturer Wago
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

224 Series

Lighting connectors designed specifically for the application of fitting wall mounting and ceiling luminaries. Prepare wires by stripping to 9-11mm.

Reliable and vibration proof interconnections
Installation side cable acceptance, 1.0 – 2.5mm² solid pushwire
Lighting side cable acceptance, 0.5 – 2.5mm² solid and fine-stranded (flex) cage clamp

Note

Stock no. 181-4068 has a cage clamp and a push wire connection, stock no. 297-3174 has 1 cage clamp but 2 push wire connections
Stock No. 178-6676 has 2 cage clamp connections. See Connector on the right hand side of the image

//media.rs-online.com/t_line/L181406-01.gif

Approvals

ASTA; BBJ; CCA; DEMKO; FIMKO; GL; KEMA; OVE; RMR; Rose TesT; SIMKO; VDE

Specifications
Attribute Value
Series 224
Colour Grey
Type Connector
Current Rating 24A
Voltage Rating 400 V
Wire Size 0.5 → 2.5 mm²
Termination Method Spring
4920 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 10)
MYR 3.805
units
Per unit
Per Pack*
10 +
MYR3.805
MYR38.05
*price indicative
