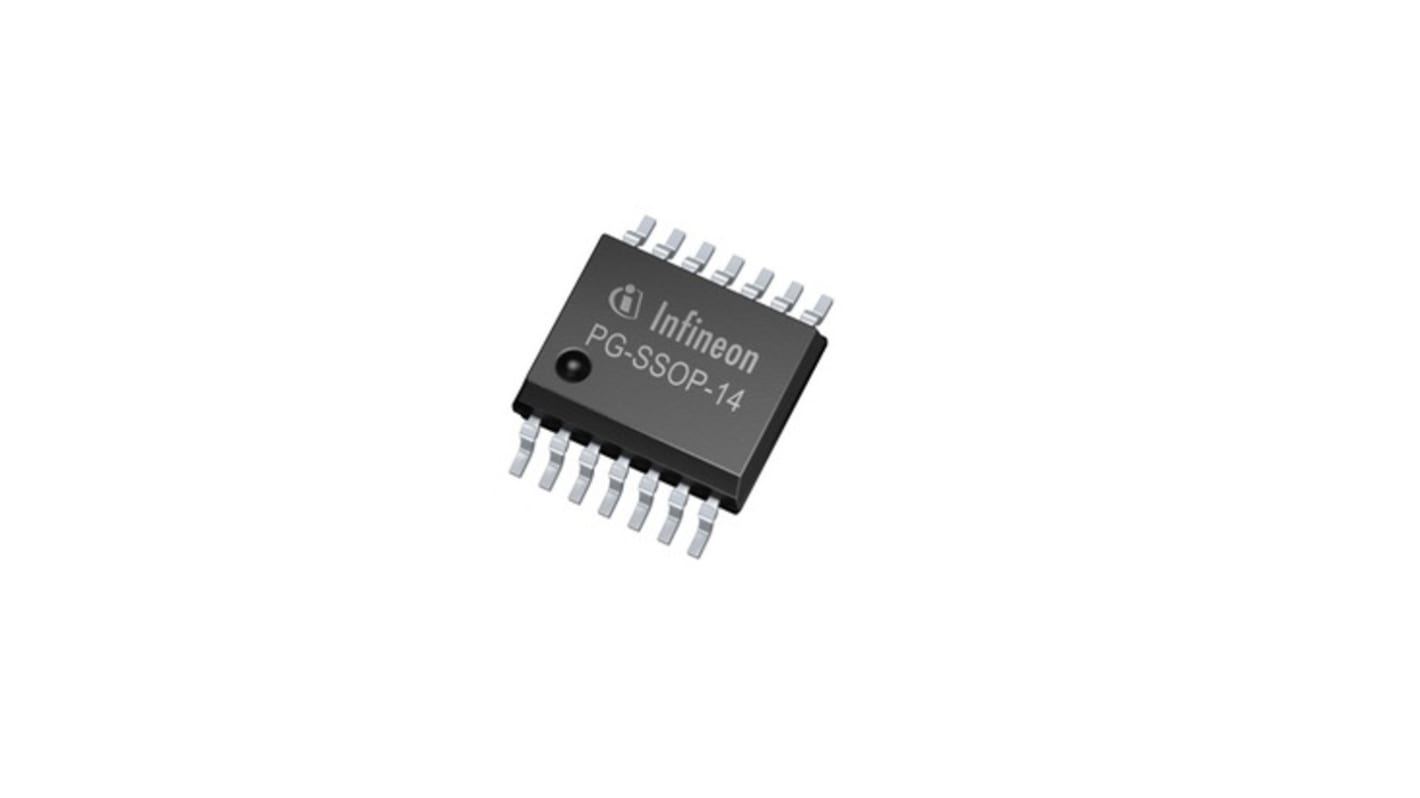

Infineon TLD2314ELXUMA1 LED Driver IC, 40 V 120mA
- RS Stock No.:
- 260-5232
- Mfr. Part No.:
- TLD2314ELXUMA1
- Manufacturer:
- Infineon
2500 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (On a Reel of 2500)
MYR3.011
| Units | Per Unit | Per Reel* |
| 2500 + | MYR3.011 | MYR7,527.50 |
| *price indicative | ||
- RS Stock No.:
- 260-5232
- Mfr. Part No.:
- TLD2314ELXUMA1
- Manufacturer:
- Infineon
Technical data sheets
Legislation and Compliance
Product Details
The Infineon LITIX Basic is a three channel high side driver IC with integrated output stages. It is designed to control LEDs with a current up to 120 mA. In typical automotive applications the device is capable to drive that is 3 red LEDs per chain with a current up to 60 mA, which is limited by thermal cooling aspects.
3 Channel device with integrated output stages (current sources), optimized to drive LEDs
Low current consumption in sleep mode
Reverse polarity protection
Low current consumption in sleep mode
Reverse polarity protection
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Output Current | 120mA |
| Input Voltage | 40 V |
| Dimming Operation | PWM |
