NEWHAVEN DISPLAY INTERNATIONAL NHD-3.5-320240JF-ASXP IPS TFT LCD Colour Display, 3.5in, 320 x 240pixels
- RS Stock No.:
- 262-4110
- Mfr. Part No.:
- NHD-3.5-320240JF-ASXP
- Manufacturer:
- NEWHAVEN DISPLAY INTERNATIONAL
Bulk discount available
Subtotal (1 unit)*
MYR187.98
FREE delivery for orders over RM 500.00
In Stock
- 114 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | MYR187.98 |
| 5 + | MYR173.52 |
*price indicative
- RS Stock No.:
- 262-4110
- Mfr. Part No.:
- NHD-3.5-320240JF-ASXP
- Manufacturer:
- NEWHAVEN DISPLAY INTERNATIONAL
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NEWHAVEN DISPLAY INTERNATIONAL | |
| Diagonal Display Size | 3.5in | |
| Interface Type | RGB | |
| Resolution | 320 x 240pixels | |
| Touch Screen | No | |
| Viewing Area Dimensions | 72.88 x 55.66mm | |
| Supply Voltage | 3.3 V | |
| Touch Screen Type | None | |
| Backlight Type | LED | |
| Display Mode | Transmissive | |
| AC or DC Input Voltage | dc | |
| Dimensions | 76.9 x 63.9 x 3.2mm | |
| Display Matrix Technology | IPS TFT | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +70°C | |
| Brightness | 1100cd/m² | |
| Power Supply Included | No | |
| Height | 3.2mm | |
| Width | 63.9mm | |
| Display Type | TFT | |
| Series | NHD | |
| Voltage Rating | 3.3V | |
| Viewing Area Width | 55.66mm | |
| Operating Temperature Range | -20 → 70°C | |
| Select all | ||
|---|---|---|
Brand NEWHAVEN DISPLAY INTERNATIONAL | ||
Diagonal Display Size 3.5in | ||
Interface Type RGB | ||
Resolution 320 x 240pixels | ||
Touch Screen No | ||
Viewing Area Dimensions 72.88 x 55.66mm | ||
Supply Voltage 3.3 V | ||
Touch Screen Type None | ||
Backlight Type LED | ||
Display Mode Transmissive | ||
AC or DC Input Voltage dc | ||
Dimensions 76.9 x 63.9 x 3.2mm | ||
Display Matrix Technology IPS TFT | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +70°C | ||
Brightness 1100cd/m² | ||
Power Supply Included No | ||
Height 3.2mm | ||
Width 63.9mm | ||
Display Type TFT | ||
Series NHD | ||
Voltage Rating 3.3V | ||
Viewing Area Width 55.66mm | ||
Operating Temperature Range -20 → 70°C | ||
- COO (Country of Origin):
- CN

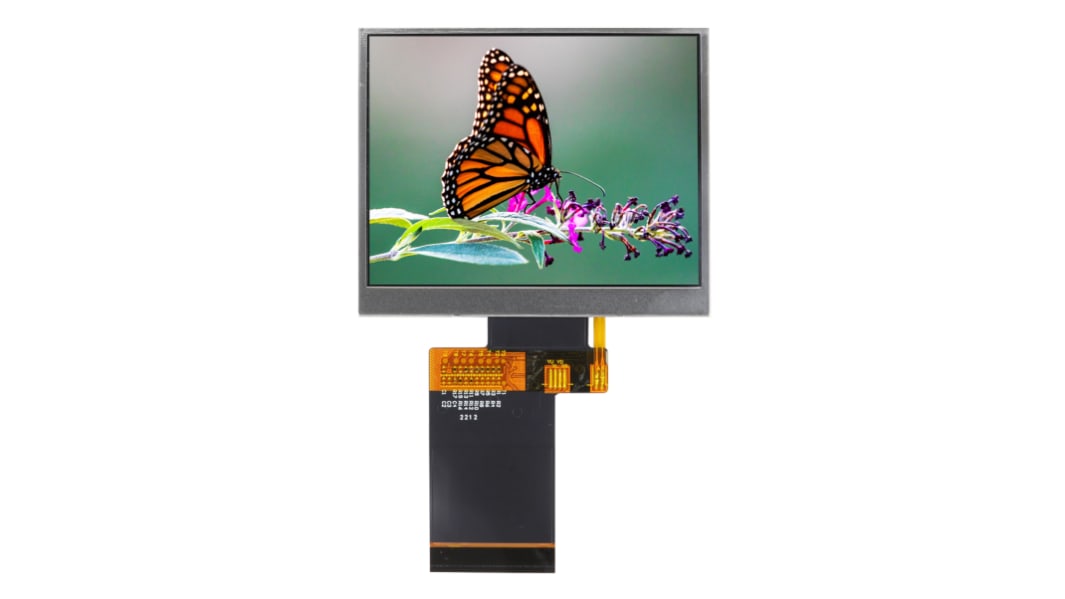

The NEWHAVEN DISPLAY INTERNATIONAL LCD display is a 320 x 240 pixel resolution IPS TFT display. The LCD screen includes IPS technology which delivers enhanced color reproduction, better image consistency, sunlight readable capabilities with high brightness backlight and boasts superior optical characteristics at any angle. This TFT is RoHS compliant and does not include a touch panel.
Built in ST7272A IC driver
EMI shielding
Connection type is 54 pin FFC
Display mode is transmissive
EMI shielding
Connection type is 54 pin FFC
Display mode is transmissive
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
