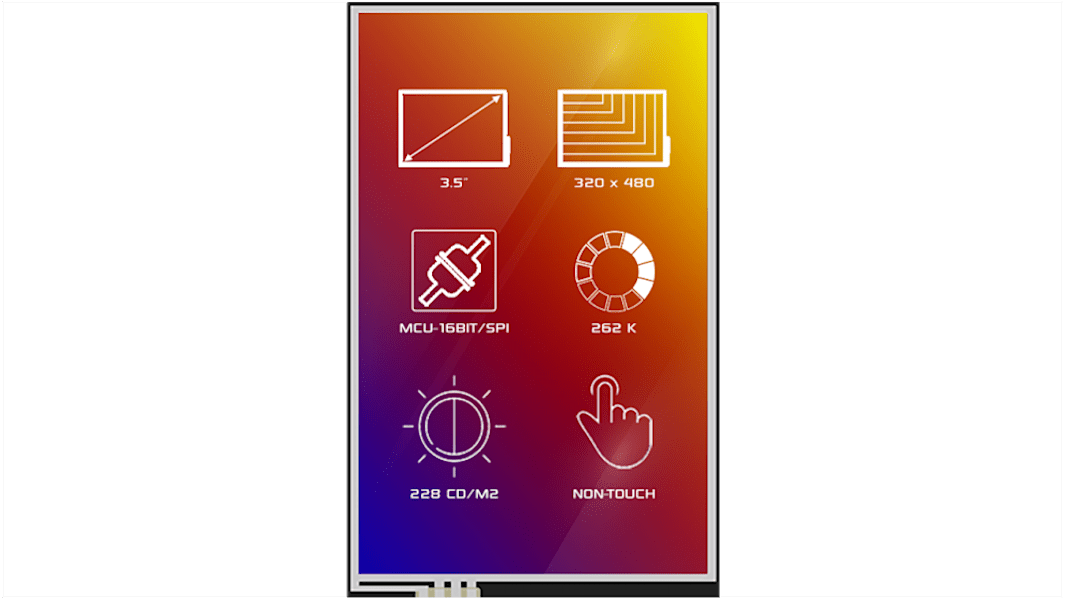

Name: 4D Systems 4DLCD-35480320-IPS TFT TFT LCD Display, 3.5in, 320 x 480pixels
Brand: 4D Systems
SKU: 230-9323
Price: 216.74 MYR
Availability: InStock

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	4D Systems
	Diagonal Display Size	3.5in
	Interface Type	SPI
	Resolution	320 x 480pixels
	Touch Screen	No
	Viewing Area Dimensions	48.96 x 73.44mm
	Touch Screen Type	None
	Supply Voltage	2.8 V
	Backlight Type	LED
	Display Mode	Transmissive
	Dimensions	54.50 x 83.00 x 2.10mm
	Display Matrix Technology	TFT
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	+70°C
	Brightness	320cd/m²
	Width	54.5mm
	Power Supply Included	No
	Current Rating	120mA
	Response Time	30ms
	Standards Met	CE, RoHS Compliant
	Depth	2.1mm
	Number of Colours	262K
	Contrast Ratio	1000
	Series	4DLCD
	Display Type	TFT
	Operating Temperature Range	-20 → +70°C
	Voltage Rating	2.8V
	Height	83mm
	Viewing Area Height	73.44mm
	Viewing Area Width	48.96mm

	Select all
	Brand 4D Systems
	Diagonal Display Size 3.5in
	Interface Type SPI
	Resolution 320 x 480pixels
	Touch Screen No
	Viewing Area Dimensions 48.96 x 73.44mm
	Touch Screen Type None
	Supply Voltage 2.8 V
	Backlight Type LED
	Display Mode Transmissive
	Dimensions 54.50 x 83.00 x 2.10mm
	Display Matrix Technology TFT
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature +70°C
	Brightness 320cd/m²
	Width 54.5mm
	Power Supply Included No
	Current Rating 120mA
	Response Time 30ms
	Standards Met CE, RoHS Compliant
	Depth 2.1mm
	Number of Colours 262K
	Contrast Ratio 1000
	Series 4DLCD
	Display Type TFT
	Operating Temperature Range -20 → +70°C
	Voltage Rating 2.8V
	Height 83mm
	Viewing Area Height 73.44mm
	Viewing Area Width 48.96mm

Datasheet - 4DLCD-35480320-IPS

The 4D Systems color active-matrix LCD module incorporating amorphous silicon TFT IPS (Thin Film Transistor). It is composed of a color IPSTFT-LCD panel, driver IC, FPC and a backlight unit. The module display area contains 320 x 480 pixels and can display up to 262K colors. This product accords with RoHS environmental criterion. This is a Raw TFT Display, it features no processor and cannot be programmed directly. It needs to be coupled with a Processor and circuitry capable of driving this type of display. For complete modules ready to go, please refer to our Intelligent Display Module products.

RoHS compliant
LED backlight
Operating temperature range from -20 to +70°C
This is a Non-Touch display

Units	Per Unit
1 - 4	MYR216.74
5 - 9	MYR213.82
10 +	MYR210.90

4D Systems 4DLCD-35480320-IPS TFT TFT LCD Display, 3.5in, 320 x 480pixels
