4D Systems gen4-4DCAPE-70T TFT LCD Colour Display / Touch Screen, 7in, 800 x 480pixels
- RS Stock No.:
- 136-9933
- Mfr. Part No.:
- gen4-4DCAPE-70T
- Manufacturer:
- 4D Systems
22 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR503.97
| Units | Per Unit |
| 1 - 4 | MYR503.97 |
| 5 - 9 | MYR493.14 |
| 10 + | MYR486.36 |
- RS Stock No.:
- 136-9933
- Mfr. Part No.:
- gen4-4DCAPE-70T
- Manufacturer:
- 4D Systems
Legislation and Compliance
- COO (Country of Origin):
- AU
Product Details

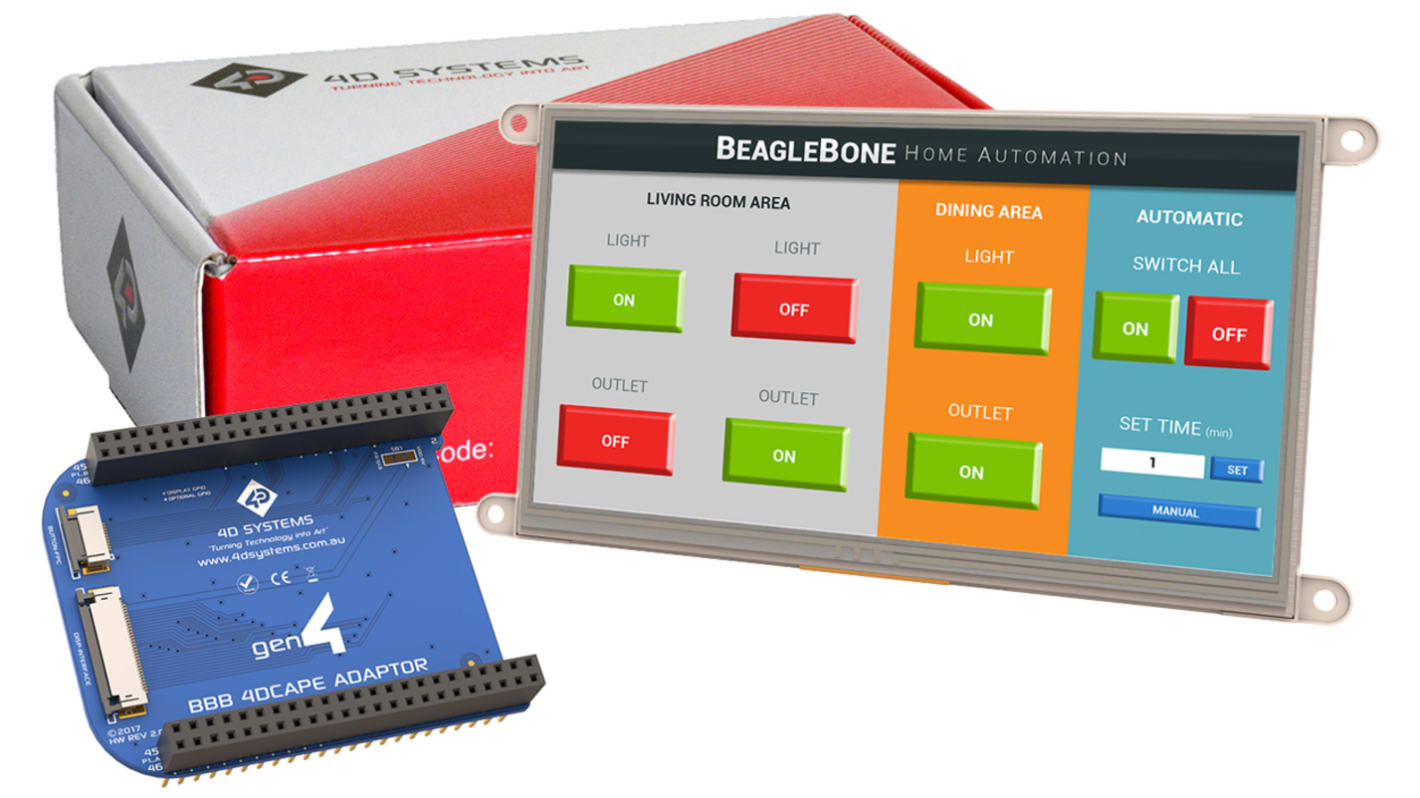

gen4 4DCAPE LCD Display Modules with Resistive Touch for BeagleBone Black
The 4D Systems gen4 4DCAPE LCD Display Modules with touch are designed specifically for the BeagleBone Black development platform. They provide a simple means of adding a primary display with touch functionality to BeagleBone Black based applications.
The included 4DCAPE adaptor makes connecting the display to the BeagleBone Black easy. The 4DCAPE adaptor fits directly onto the expansion headers of the BeagleBone Black and connects to the display via a 30-way FFC connector. No other connections are needed, the BeagleBone Black provides all the necessary power and display signals via the 4DCAPE adaptor.
This variant of the 4DCAPE LCD Display Module range features resistive touch and incorporates the Microchip AR1021 controller to interpret user inputs. The touch controller communicates with the BeagleBoard Black over I²C.
The included 4DCAPE adaptor makes connecting the display to the BeagleBone Black easy. The 4DCAPE adaptor fits directly onto the expansion headers of the BeagleBone Black and connects to the display via a 30-way FFC connector. No other connections are needed, the BeagleBone Black provides all the necessary power and display signals via the 4DCAPE adaptor.
This variant of the 4DCAPE LCD Display Module range features resistive touch and incorporates the Microchip AR1021 controller to interpret user inputs. The touch controller communicates with the BeagleBoard Black over I²C.
Features
Simple to implement LCD Display with touch for BeagleBone Black
480 x 272 (4.3”) or 800 x 480 (5.0” and 7.0”) resolution
Resistive touch
EEPROM CAPE ID selection via DIP switch
4 x 4.0 mm mounting holes
CE and RoHS compliant
480 x 272 (4.3”) or 800 x 480 (5.0” and 7.0”) resolution
Resistive touch
EEPROM CAPE ID selection via DIP switch
4 x 4.0 mm mounting holes
CE and RoHS compliant
Kit Contents
1 x gen4 4DCAPE LCD Module
1 x gen4 4DCAPE adaptor
1 x 30-way FFC Cable
1 x gen4 4DCAPE adaptor
1 x 30-way FFC Cable
Note
The gen4 4DCAPE LCD Display Modules are compatible with the BeagleBone Black only
4D Systems gen4 LCD Display Modules
Specifications
Attribute | Value |
|---|---|
| Diagonal Display Size | 7in |
| Interface Type | UART |
| Resolution | 800 x 480pixels |
| Touch Screen | Yes |
| Viewing Area Dimensions | 154 x 86mm |
| Supply Voltage | 5 V |
| Touch Screen Type | Resistive |
| Backlight Type | LED |
| Display Mode | Transmissive |
| AC or DC Input Voltage | dc |
| Dimensions | 187 x 102.1 x 8.4mm |
| Display Matrix Technology | TFT |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Brightness | 400cd/m² |
| Standards Met | CE |
| Height | 8.4mm |
| Current Rating | 990mA |
| Series | gen4 |
| Viewing Area Height | 85.63mm |
| Width | 102.1mm |
| Operating Temperature Range | -20 → +70°C |
| Contrast Ratio | 500:1 |
| Viewing Area Width | 153.84mm |
| Voltage Rating | 5V dc |
| Depth | 8.4mm |
