Red Alignment Kit Laser Module, 650Nm 5mW,, Cross/Dot/Line pattern

  • RS Stock No. 697-3513
  • Mfr. Part No. Red Alignment Kit
  • Manufacturer Global Laser
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Red Laser Alignment Kit

Two high quality interchangable, plug & play alignment kits.The 532nm Green laser is 9 times brighter then a 650nm Red laser to the human eye and is particularly suited for use on surfaces such as hot steel, working at longer distances and in high ambient light levels.The Red Alignment Kit is a unique, interchangeable, low cost plug-and-play laser system. Designed primarily for aligning and positioning of garments, cloth, paper, wood and metal.

Laser Class: 3R
Laser Wavelength: 532 nm (Green Visible) / 635 nm (Red)
Output Power: 4.5 mW Green / 3 mW Red
Power Supply Input: 110Vdc to 220 Vac
Case Depth: 90 mm
Case Height: 292 mm
Case Width: 345 mm

Red Alignment Kit
635nm, 5mW, LaserLyte flex
Power Supply 110 / 240 Vdc
5 Interchangable Optics

Green Alignment Kit
532nm, 5mW Green Laser
Power Supply 110 / 240 Vac - 3.5 Vdc
6 Interchangable Optics

Supplied with

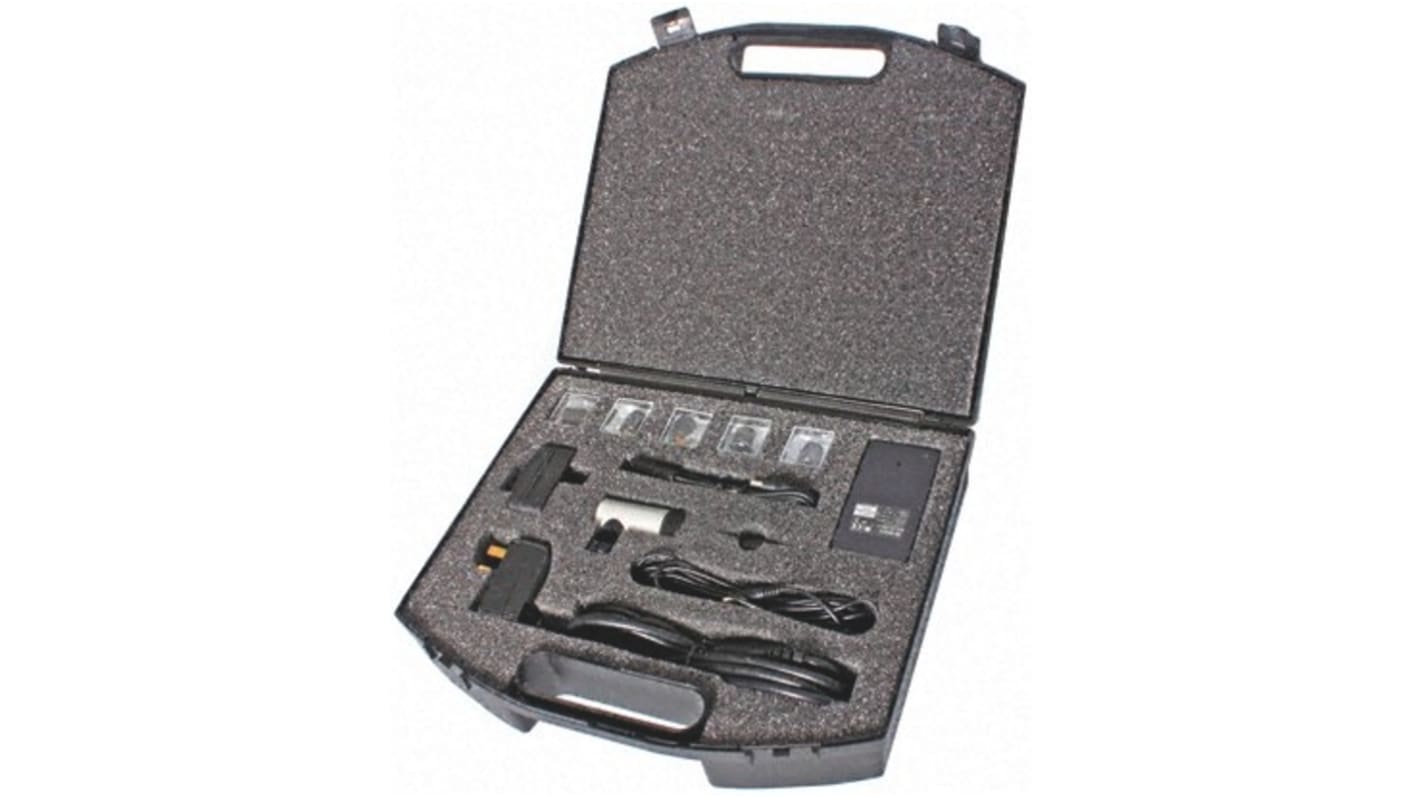

Supplied with heav-duty carry case, UK, Euro & US power leads, heavy-duty mounting clamp and a focus key

Laser Modules, Global Laser

Warning

  • These laser diode modules are OEM devices and conform to the emission criteria of BS (EN) 60825. It is recommended that this standard and the Data Sheet are read before these lasers are used. Serious eye damage may result if any laser of 1mW or above is pointed directly at the eye.
Specifications
Attribute Value
Laser Colour Red
Emission Pattern Cross, Dot, Line
Laser Wavelength 650nm
Optical Output Power 5mW
Laser Class 3R
Application Alignment
Series LaserLyte-Flex
7 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 1,740.90
units
Per unit
1 - 9
MYR1,740.90
10 +
MYR1,668.55
