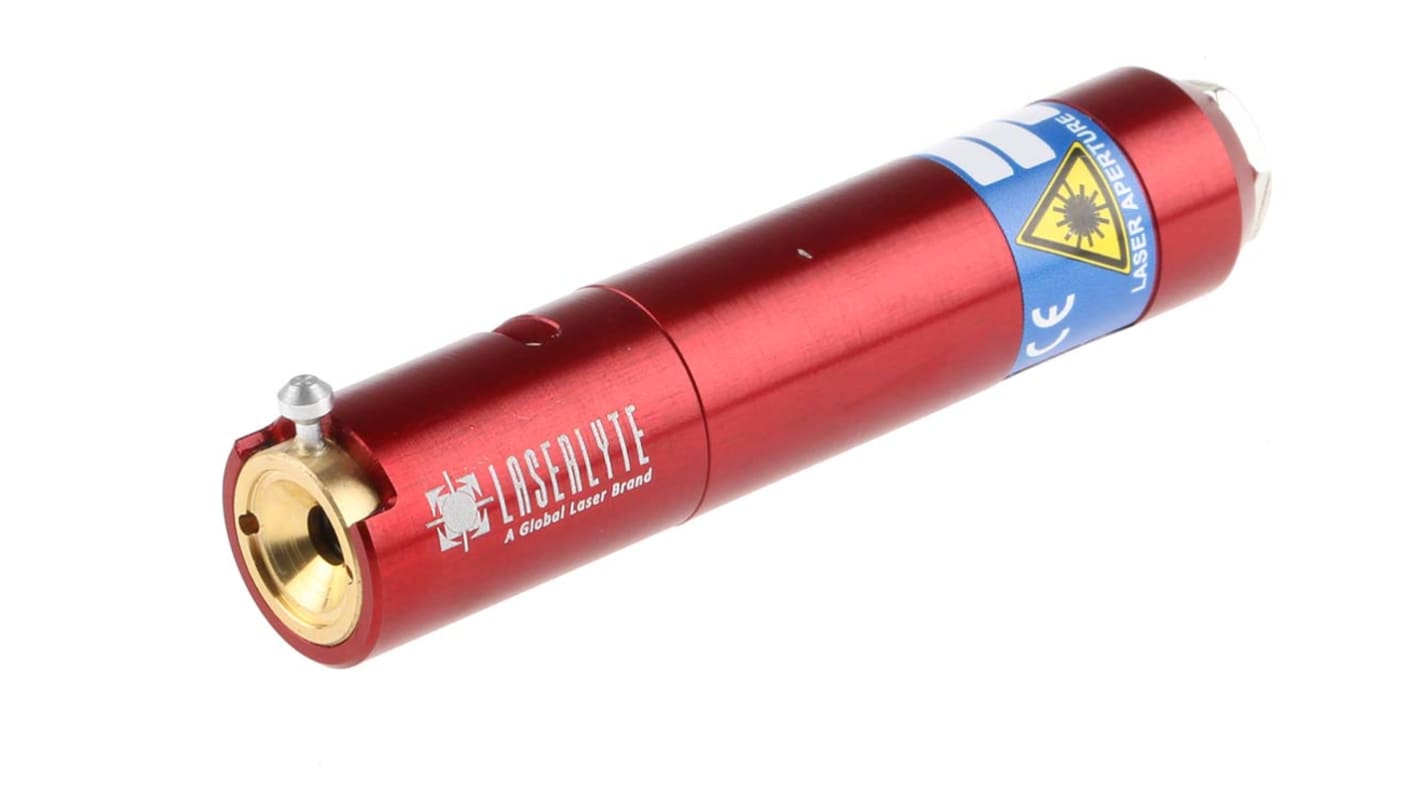

5200-56-000 Laser Module, 635Nm 5mW, Continuous Wave Line pattern

  • RS Stock No. 442-3340
  • Mfr. Part No. 5200-56-000
  • Manufacturer Global Laser
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

LaserLyte Alignment Laser V Series Kits

Plug & Play laser alignment system: simple to use
Wide range of projections: dot, variable-length line, 90° cross, line + dot
Adjustable focus range: 6mm to infinity
Connector: DC power jack
Reverse polarity protection

Supplied with

Universal mains power supply (PS-1), 1.5m electrical lead, heavy duty mounting clamp, brackets (combo set – all brackets) and focus key.

//media.rs-online.com/t_line/L442333-05.gif
//media.rs-online.com/t_line/L442333-06.gif
//media.rs-online.com/t_line/L442333-07.gif

Laser Modules, Global Laser

Warning

  • These laser diode modules are OEM devices and conform to the emission criteria of BS (EN) 60825. It is recommended that this standard and the Data Sheet are read before these lasers are used. Serious eye damage may result if any laser of 1mW or above is pointed directly at the eye.
Specifications
Attribute Value
Laser Type Continuous Wave
Laser Colour Red
Emission Pattern Line
Laser Wavelength 635nm
Optical Output Power 5mW
Laser Class 3R
Application Alignment
Series LaserLyte
9 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 1,913.78
units
Per unit
1 - 9
MYR1,913.78
10 +
MYR1,752.22
