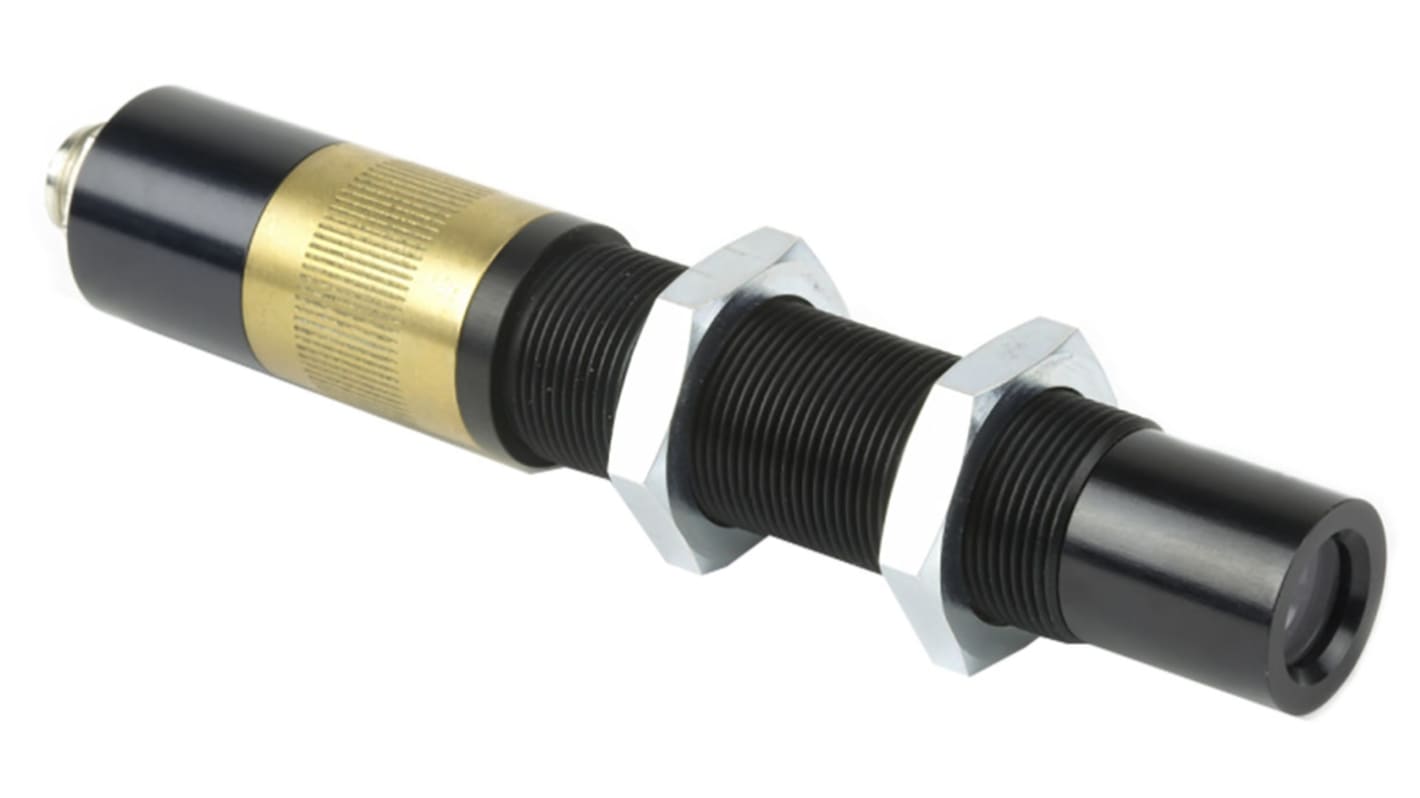

1549-03-000 Laser Module, 520Nm 50mW, Continuous Wave, Linear & TTL control Line pattern

  • RS Stock No. 127-1564
  • Mfr. Part No. 1549-03-000
  • Manufacturer Global Laser
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

GuideLine 2 Alignment Laser Modules

The GuideLine 2 series from Global Laser provides reliable and robust industrial laser modules suitable for a wide range of alignment applications. They feature IP67 protection, a threaded barrel for easy mounting and the ability to operate from typical industrial power sources such as 24Vdc.
The lasers allow user adjustment of focus via an external control ring. The 635nm red lasers are available in two power levels, and a 520nm green laser is available for more visually demanding applications. A 1m long power cable terminated with bare ends is available for the GuideLine 2 Laser Modules; see 127-1565.

IP67 rated protection
M18 mounting thread with mounting nuts
User adjustable focussing
Operating voltage: 5 to 30Vdc (Green Laser 10 to 30Vdc)
Electrically isolated case
Reverse polarity protected

Laser Modules, Global Laser

Warning

  • These laser diode modules are OEM devices and conform to the emission criteria of BS (EN) 60825. It is recommended that this standard and the product datasheet are read before these lasers are used. Serious eye damage may result if any laser of 1mW or above is pointed directly at the eye.
Specifications
Attribute Value
Laser Type Continuous Wave
Laser Colour Green
Emission Pattern Line
Laser Wavelength 520nm
Optical Output Power 50mW
Control Type Linear, TTL
Laser Class 3B
Series GuideLine 2
4 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 4,076.15
units
Per unit
1 - 1
MYR4,076.15
2 - 4
MYR4,015.01
5 +
MYR3,921.32
