ABB Junction Box, IP55, 160mm x 135mm x 150mm

  • RS Stock No. 455-047
  • Mfr. Part No. 1SL0880A0O
  • Manufacturer ABB
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): IT
Product Details

IP65 Watertight Junction Box

These grey watertight junction boxes are made from a self-extinguishing thermoplastic material that is halogen free and RoHS compliant. The housing has smooth sides and is fitted with a screw-on patented lid and a seal to provide IP65 protection.

Features and Benefits

•High resistance to heat, chemical and atmospheric agents •Patented lid produced in a single pressing phase and fitted with seal
•Components can be fitted to the back of the box using 3.5 x 9.5 mm self-tapping screws
•Smooth sided box with screw-on lid
•Grey RAL 7035 colour housing
•Self-extinguishing thermoplastic material
•Installation temperature from -25°C to +60°C
•IP65 protection
•IK08 shock resistant
•RoHS compliant
•Halogen free

Product Application Information

These adaptable boxes are designed for low voltage products and systems and can be surface mounted on walls and ceilings.

Standards

This adaptable box is made from a self-extinguishing thermoplastic material and complies with UL 94 V2. It is also resistant to abnormal heat and fire up to 650°C GWT in compliance with IEC 60695-2-11. The enclosure is manufactured in compliance with IEC 60670-1 and IEC 60670-22.

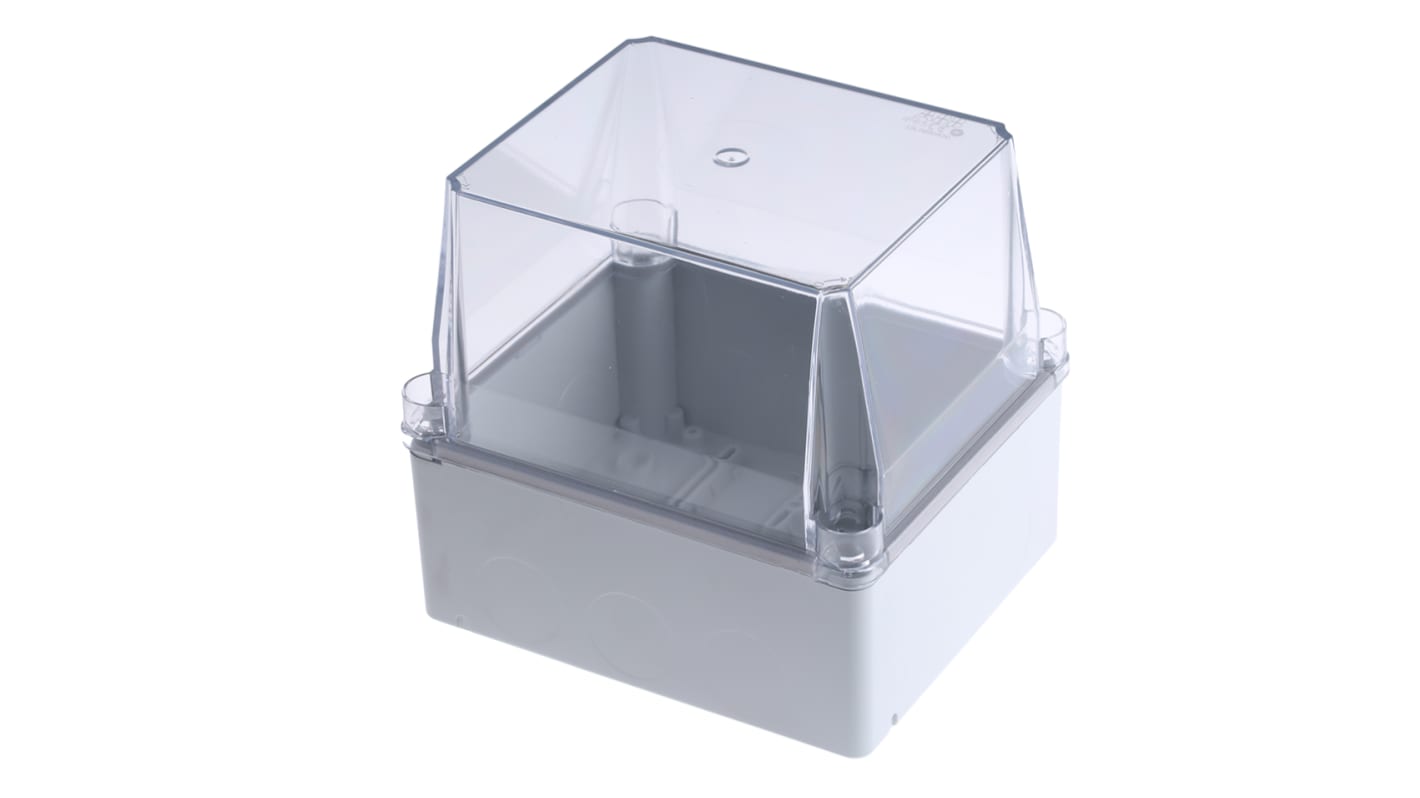

This Grey Junction box from ABB is made from a self-extinguishing thermoplastic that is Halogen free and RoHS compliant. The smooth housing is coupled with a screw on lid to provide a watertight fitment to an IP55 Protection standard. The surface mount junction box can be used outdoors to protect any cable connections or wiring terminals. The polycarbonate transparent lid allows for easy visibility of the contents or connections.

Features and Benefits

Made from a self-extinguishing thermoplastic that has a high resistance to heat, chemical and atmospheric agents. IP55 rating junction box is great for outdoors, with the use of a patented lid.
IK08 protection ensures it has a high shock resistance
A screw down high transparent lid allows for a secure fitment
Grey RAL 7035 colour housing
Can be wall mounted using ABB bracket - 455-762

Typical Applications

Junctions Boxes are primarily used in building construction and are designed to provide protection to wiring circuits and electrical connections for easy access. Made from fire resistant thermoplastic and in most situations can be used both indoor and outdoor due to water and impact resistance.

Typically junction boxes are used for:

Connecting additional sockets to circuits Adding lighting points
Extending circuits
Electricity circuit repairs

Approvals and Certification

IP65 Protection IK08 Protection
RoHS Compliant
Halogen Free

FAQ's

Q. Does this box have knockouts and if so what’s the size?

A. This junction box has smooth sides with 4 pre-positioned knockouts

Q. Will using the knockouts affect the IP Rating?

A. The knockouts have to be fitted with the correct fittings to ensure the IP Protection isn't affected.

Specifications
Attribute Value
Length 160mm
Material Thermoplastic
Width 135mm
Dimensions L x W x H 160 x 135 x 150mm
IP Rating IP65
Height 150mm
Colour Grey
105 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 92.85
units
Per unit
1 - 11
MYR92.85
12 - 24
MYR90.08
25 +
MYR88.09
