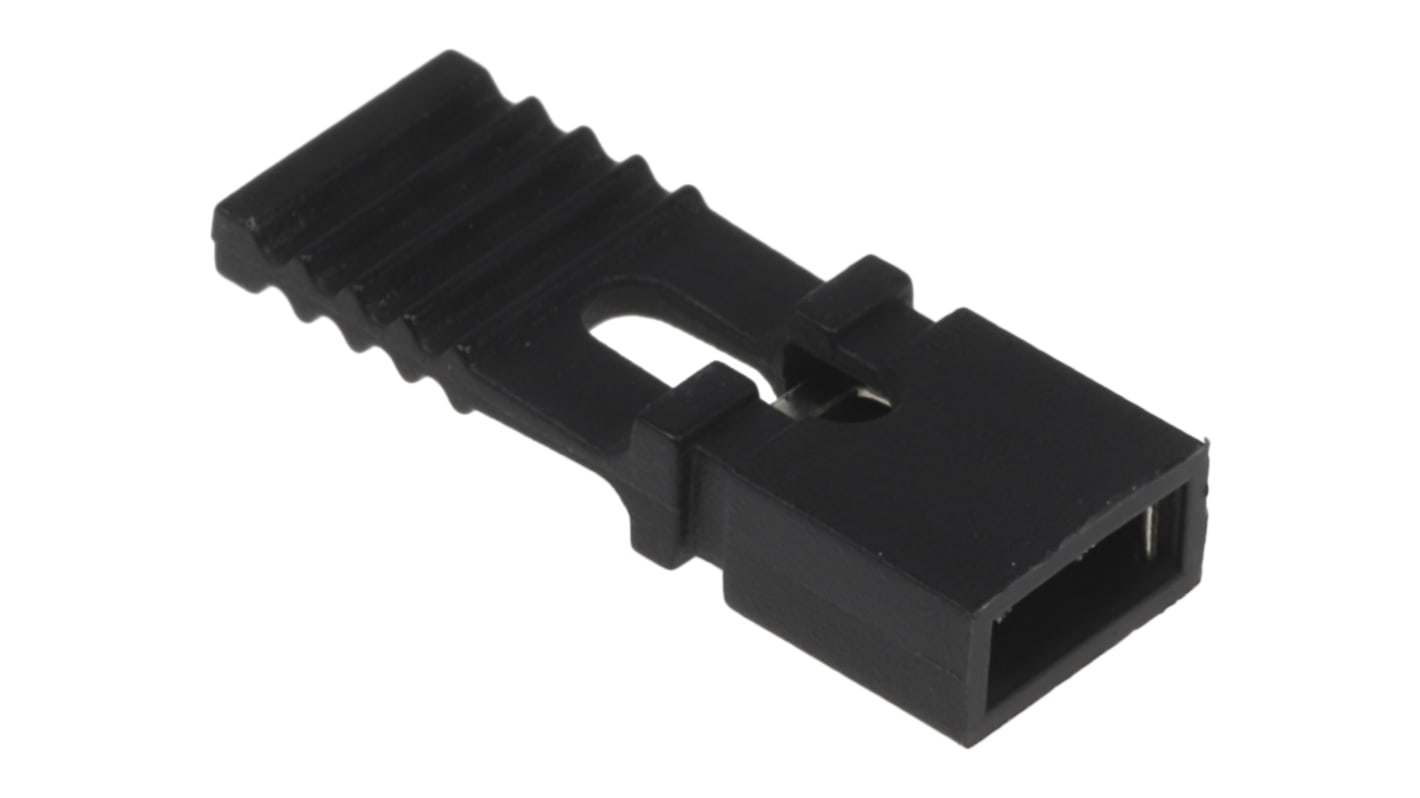

RS PRO Shorting Link Female Straight Black Closed Top, Handle Pull 2 Way 1 Row 2.54mm Pitch

  • RS Stock No. 251-8575
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

RS 2.54mm Thumb Pull Shorting Link

Thumb pull shorting link with a 2.54mm pitch designed to mate with 0.6mm sq headers with a recommended header length of 4.3mm min. This 2.54mm thumb pull shorting link has bright in plated phosphor bronze contacts and a black glass filled PBT UL94V housing

//media.rs-online.com/t_line/L251850-01.gif

2.54mm PCB Connector RS Range

A large variety of connector options, to cover the majority of board-to-board, bussing and programming requirements.

Specifications
Attribute Value
Type Closed Top, Handle Pull
Number of Contacts 2
Pitch 2.54mm
Gender Female
Colour Black
Number of Rows 1
Length 4.98mm
Width 14mm
Depth 2.44mm
Contact Material Phosphor Bronze
Contact Plating Tin over Nickel
Orientation Straight
Maximum Contact Resistance 20mΩ
25530 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 10)
MYR 1.692
units
Per unit
Per Pack*
10 - 190
MYR1.692
MYR16.92
200 - 740
MYR1.592
MYR15.92
750 - 2990
MYR1.504
MYR15.04
3000 - 5990
MYR1.465
MYR14.65
6000 +
MYR1.427
MYR14.27
*price indicative
