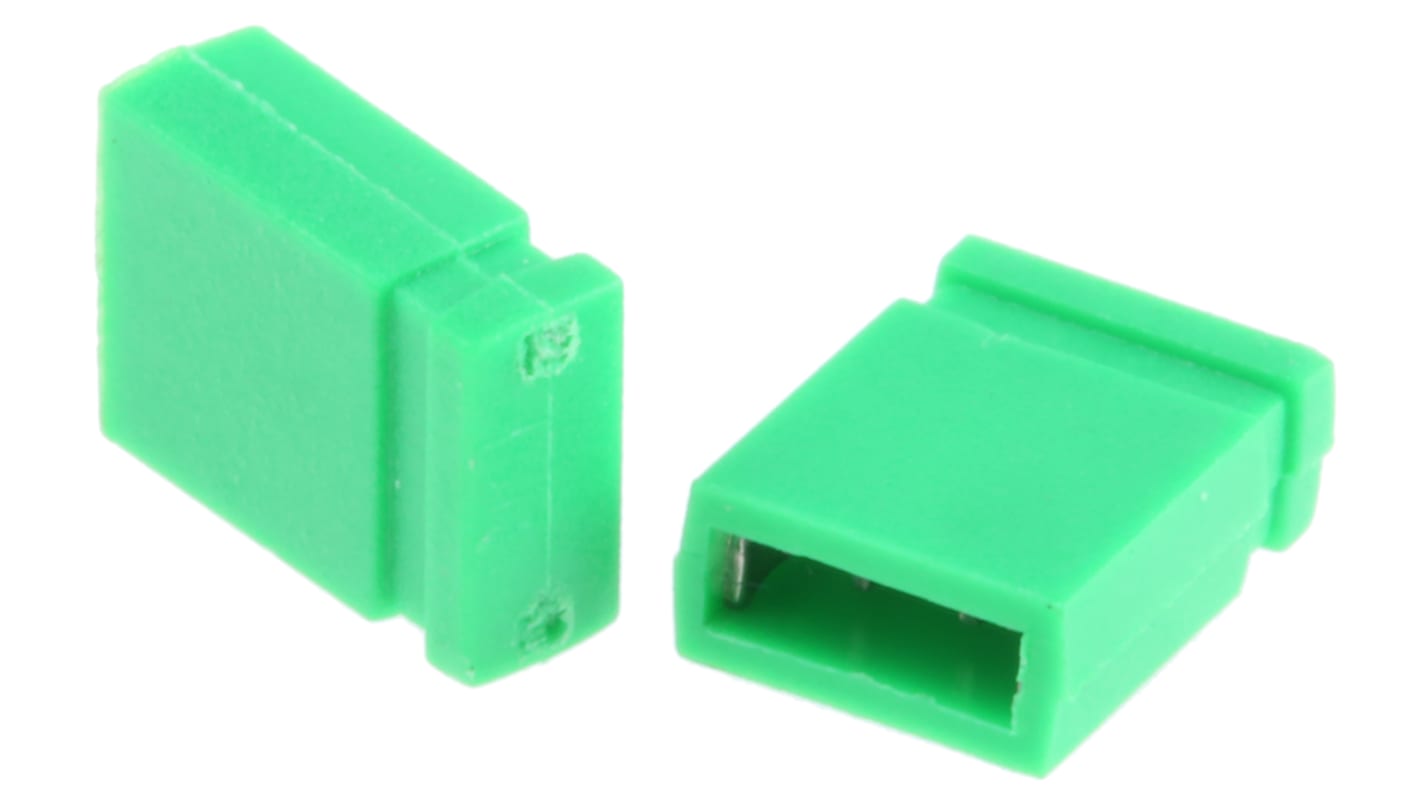

RS PRO Shorting Link Female Straight Green Closed Top 2 Way 1 Row 2.54mm Pitch
- RS Stock No.:
- 251-8553
- Manufacturer:
- RS PRO
820 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
2470 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 10)
MYR1.734
| Units | Per Unit | Per Pack* |
| 10 - 90 | MYR1.734 | MYR17.34 |
| 100 - 490 | MYR1.686 | MYR16.86 |
| 500 + | MYR1.388 | MYR13.88 |
| *price indicative | ||
- RS Stock No.:
- 251-8553
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
RS Pro 2.54mm Closed Top Shorting Links
A series of RS Pro closed top shorting links with a 2.54 mm pitch. Each shorting link is designed to mate with 0.6 mm² headers with a recommended header length 4.3 mm minimum. These 2.54 mm closed top shorting links have tin plated phosphor bronze contacts and a black glass filled PBT UL94V-0 housing, making them perfect for harsh environments. All models are highly reliable and excellent quality.
Features & Benefits
Straight orientation
Single row
Various colours available
2.54mm PCB Connector RS Range
A large variety of connector options, to cover the majority of board-to-board, bussing and programming requirements.
Specifications
Attribute | Value |
|---|---|
| Type | Closed Top |
| Number of Contacts | 2 |
| Pitch | 2.54mm |
| Gender | Female |
| Colour | Green |
| Number of Rows | 1 |
| Length | 4.98mm |
| Width | 6.47mm |
| Depth | 2.44mm |
| Contact Material | Phosphor Bronze |
| Contact Plating | Tin over Nickel |
| Orientation | Straight |
| Maximum Contact Resistance | 20mΩ |
