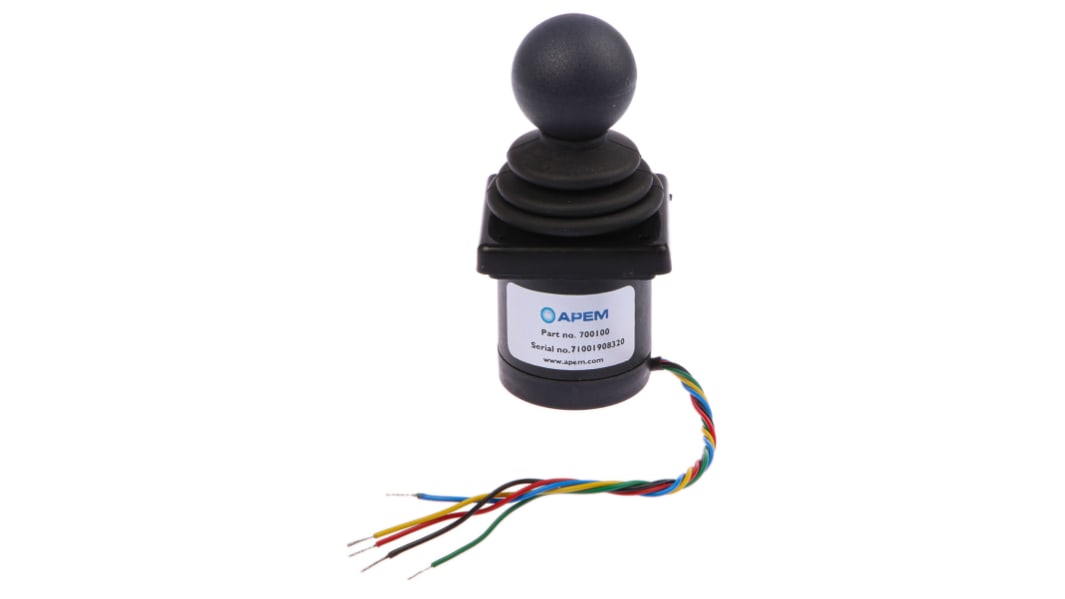

APEM 2-Axis Joystick Switch Knob, Dual Axis Potentiometric, Momentary, IP65
- RS Stock No.:
- 440-7922
- Mfr. Part No.:
- 7SA10SBL2588
- Manufacturer:
- APEM
2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
Was MYR599.74
You pay
MYR500.45
| Units | Per Unit |
| 1 - 9 | MYR500.45 |
| 10 - 49 | MYR490.45 |
| 50 - 99 | MYR480.63 |
| 100 - 249 | MYR471.02 |
| 250 + | MYR461.60 |
- RS Stock No.:
- 440-7922
- Mfr. Part No.:
- 7SA10SBL2588
- Manufacturer:
- APEM
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
APEM Joystick Switch Knob
The APEM 2 way momentary inductive joystick switch nob has an operating life of 10000000 cycles and contact electrical current rating of 10mA. It is extremely robust and has a rubber gaiter to ensure a high degree of environmental protection. With a durable quality design and return to centre functionality, the joystick is suitable for industrial and automation applications.
Features and Benefits
Contact is made of tinned copper
The terminal type is flying lead
Inductive sensing system
Long service life
Square limiter plate fitted
Operating temperature range is between -20℃ and 55℃
The terminal type is flying lead
Inductive sensing system
Long service life
Square limiter plate fitted
Operating temperature range is between -20℃ and 55℃
Certifications
IP65 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
Specifications
Attribute | Value |
|---|---|
| Number of Axes | 2 |
| Switch Technology | Dual Axis Potentiometric, Momentary |
| IP Rating | IP65 |
| Handle Type | Knob |
| Contact Current Rating | 10 mA |
| Contact Material | Tinned Copper |
| Joystick Travel | 2 Way Gate at 36 ° |
| Terminal Type | Flying Lead |
| Mechanical Life | 10000000Operations |
| Depth Behind Panel | 38.5mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +55°C |
| Operating Temperature Range | -20 → +55°C |
