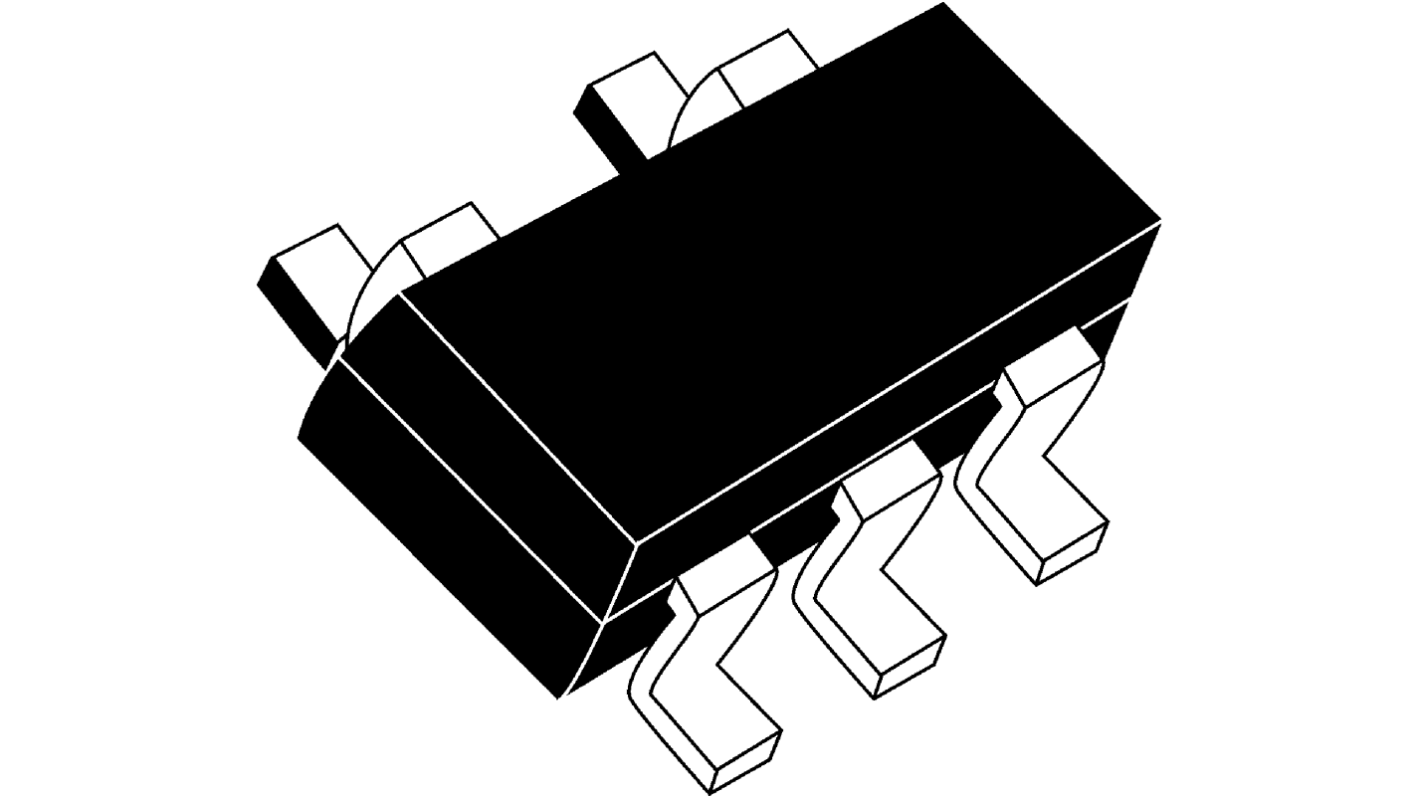

DiodesZetex 74AHC1G14W5-7 Schmitt Trigger Inverter, 5-Pin SOT-25
- RS Stock No.:
- 822-8672P
- Mfr. Part No.:
- 74AHC1G14W5-7
- Manufacturer:
- DiodesZetex
Bulk discount available
Subtotal 800 units (supplied on a reel)**
MYR180.00
18400 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
|---|---|
| 800 - 1400 | MYR0.225 |
| 1600 + | MYR0.203 |
**price indicative
- RS Stock No.:
- 822-8672P
- Mfr. Part No.:
- 74AHC1G14W5-7
- Manufacturer:
- DiodesZetex
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Logic Function | Inverter | |
| Input Type | Schmitt Trigger | |
| Output Type | Push-Pull | |
| Number of Elements per Chip | 1 | |
| Schmitt Trigger Input | Yes | |
| Maximum Propagation Delay Time @ Maximum CL | 20.5 ns @ 50 pF | |
| Maximum High Level Output Current | -8mA | |
| Maximum Low Level Output Current | 8mA | |
| Mounting Type | Surface Mount | |
| Package Type | SOT-25 | |
| Pin Count | 5 | |
| Logic Family | HC | |
| Dimensions | 3.1 x 1.7 x 1.3mm | |
| Height | 1.3mm | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Minimum Operating Supply Voltage | 2 V | |
| Maximum Operating Temperature | +125 °C | |
| Length | 3.1mm | |
| Minimum Operating Temperature | -40 °C | |
| Propagation Delay Test Condition | 50pF | |
| Width | 1.7mm | |
Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Logic Function Inverter | ||
Input Type Schmitt Trigger | ||
Output Type Push-Pull | ||
Number of Elements per Chip 1 | ||
Schmitt Trigger Input Yes | ||
Maximum Propagation Delay Time @ Maximum CL 20.5 ns @ 50 pF | ||
Maximum High Level Output Current -8mA | ||
Maximum Low Level Output Current 8mA | ||
Mounting Type Surface Mount | ||
Package Type SOT-25 | ||
Pin Count 5 | ||
Logic Family HC | ||
Dimensions 3.1 x 1.7 x 1.3mm | ||
Height 1.3mm | ||
Maximum Operating Supply Voltage 5.5 V | ||
Minimum Operating Supply Voltage 2 V | ||
Maximum Operating Temperature +125 °C | ||
Length 3.1mm | ||
Minimum Operating Temperature -40 °C | ||
Propagation Delay Test Condition 50pF | ||
Width 1.7mm | ||
