Select all	Attribute	Value
	Brand	DiodesZetex
	Logic Function	Inverter
	Input Type	Schmitt Trigger
	Output Type	Open Drain
	Number of Elements per Chip	6
	Schmitt Trigger Input	Yes
	Maximum Propagation Delay Time @ Maximum CL	125 ns @ 50 pF
	Maximum Low Level Output Current	5.2mA
	Mounting Type	Surface Mount
	Package Type	SOIC
	Pin Count	14
	Logic Family	HC
	Dimensions	8.74 x 3.99 x 1.48mm
	Height	1.48mm
	Maximum Operating Supply Voltage	6 V
	Width	3.99mm
	Minimum Operating Supply Voltage	2 V
	Length	8.74mm
	Maximum Operating Temperature	+125 °C
	Propagation Delay Test Condition	50pF
	Minimum Operating Temperature	-40 °C

	Select all
	Brand DiodesZetex
	Logic Function Inverter
	Input Type Schmitt Trigger
	Output Type Open Drain
	Number of Elements per Chip 6
	Schmitt Trigger Input Yes
	Maximum Propagation Delay Time @ Maximum CL 125 ns @ 50 pF
	Maximum Low Level Output Current 5.2mA
	Mounting Type Surface Mount
	Package Type SOIC
	Pin Count 14
	Logic Family HC
	Dimensions 8.74 x 3.99 x 1.48mm
	Height 1.48mm
	Maximum Operating Supply Voltage 6 V
	Width 3.99mm
	Minimum Operating Supply Voltage 2 V
	Length 8.74mm
	Maximum Operating Temperature +125 °C
	Propagation Delay Test Condition 50pF
	Minimum Operating Temperature -40 °C

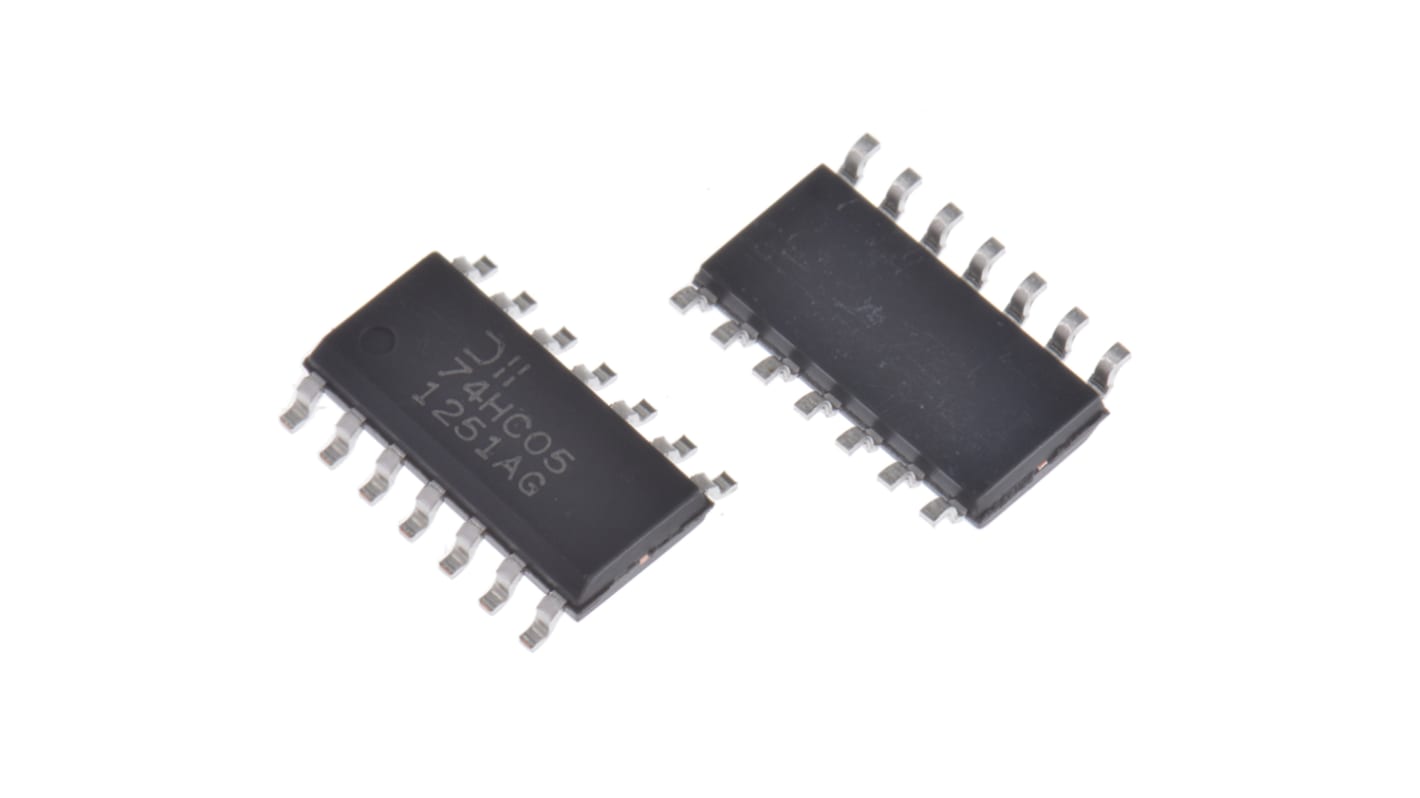

DiodesZetex 74HC05S14-13 Hex Schmitt Trigger Inverter, 14-Pin SOIC

FREE delivery for orders over MYR500.00

Alternative

74HC Family, DiodesZetex

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
