onsemi MC14049BDR2G 1 CMOS Inverter, 16-Pin SOIC
- RS Stock No.:
- 184-4793
- Mfr. Part No.:
- MC14049BDR2G
- Manufacturer:
- onsemi

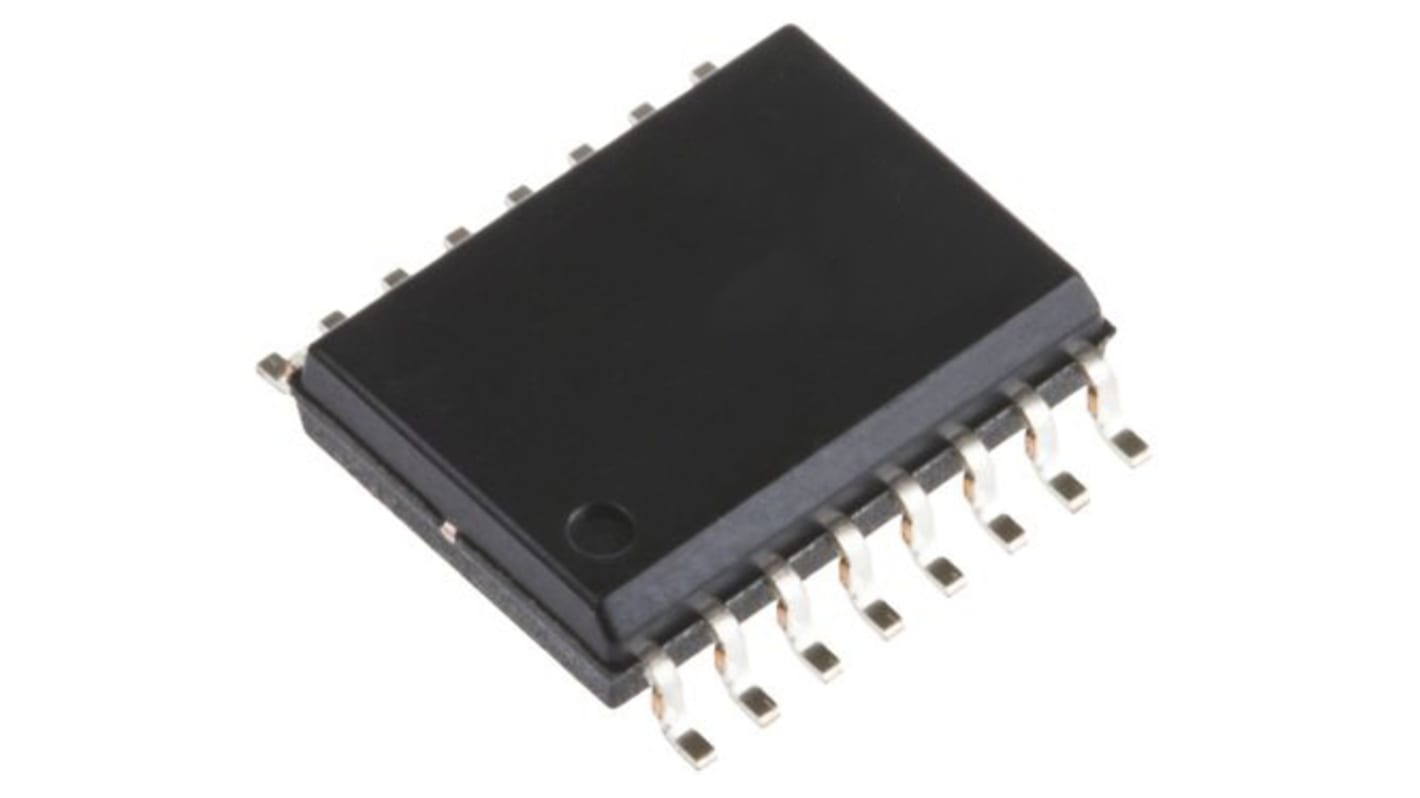

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 25 units)*
MYR35.675
FREE delivery for orders over RM 150.00
In Stock
- 1,250 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 25 - 600 | MYR1.427 | MYR35.68 |
| 625 - 1225 | MYR1.397 | MYR34.93 |
| 1250 + | MYR1.354 | MYR33.85 |
*price indicative
- RS Stock No.:
- 184-4793
- Mfr. Part No.:
- MC14049BDR2G
- Manufacturer:
- onsemi
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Logic Function | Hex Inverter/Buffer | |
| Product Type | CMOS Inverter | |
| Input Type | Single Ended | |
| Output Type | Single Ended | |
| Number of Elements per Chip | 1 | |
| Schmitt Trigger Input | No | |
| Maximum Propagation Delay Time @ CL | 140ns | |
| Minimum Supply Voltage | 3V | |
| Mount Type | Surface | |
| Maximum Supply Voltage | 18V | |
| Package Type | SOIC | |
| Pin Count | 16 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Length | 10mm | |
| Height | 1.5mm | |
| Series | MC14049B | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Logic Function Hex Inverter/Buffer | ||
Product Type CMOS Inverter | ||
Input Type Single Ended | ||
Output Type Single Ended | ||
Number of Elements per Chip 1 | ||
Schmitt Trigger Input No | ||
Maximum Propagation Delay Time @ CL 140ns | ||
Minimum Supply Voltage 3V | ||
Mount Type Surface | ||
Maximum Supply Voltage 18V | ||
Package Type SOIC | ||
Pin Count 16 | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Length 10mm | ||
Height 1.5mm | ||
Series MC14049B | ||
Automotive Standard AEC-Q100 | ||
- COO (Country of Origin):
- CN
The MC14049B Hex Inverter/Buffer and MC14050B Noninverting Hex Buffer are constructed with MOS P-Channel and N-Channel enhancement mode devices in a single monolithic structure. These complementary MOS devices find primary use where low power dissipation and/or high noise immunity is desired. These devices provide logic level conversion using only one supply voltage, VDD. The input-signal high level (VIH) can exceed the VDD supply voltage for logic level conversions. Two TTL/DTL loads can be driven when the devices are used as a CMOS-to-TTL/DTL converter (VDD = 5.0 V, VOL <= 0.4 V, IOL >= 3.2 mA).
High Source and Sink Currents
High-to-Low Level Converter
Supply Voltage Range = 3.0 V to 18 V
Improved ESD Protection On All Inputs
