Units	Per Unit	Per Pack**
100 - 700	MYR0.48	MYR48.00
800 - 1400	MYR0.445	MYR44.50
1500 +	MYR0.401	MYR40.10

Select all	Attribute	Value
	Brand	Toshiba
	Logic Function	Inverter
	Input Type	CMOS
	Output Type	Open Drain
	Number of Elements per Chip	1
	Maximum Propagation Delay Time @ Maximum CL	12.5 ns @ 50 pF
	Maximum High Level Output Current	-32mA
	Maximum Low Level Output Current	32mA
	Mounting Type	Surface Mount
	Package Type	SOT-353
	Pin Count	5
	Logic Family	LMOS
	Dimensions	2 x 1.25 x 0.9mm
	Height	0.9mm
	Maximum Operating Supply Voltage	5.5 V
	Automotive Standard	AEC-Q100
	Width	1.25mm
	Minimum Operating Temperature	-40 °C
	Minimum Operating Supply Voltage	1.65 V
	Length	2mm
	Propagation Delay Test Condition	50pF
	Maximum Operating Temperature	+125 °C

	Select all
	Brand Toshiba
	Logic Function Inverter
	Input Type CMOS
	Output Type Open Drain
	Number of Elements per Chip 1
	Maximum Propagation Delay Time @ Maximum CL 12.5 ns @ 50 pF
	Maximum High Level Output Current -32mA
	Maximum Low Level Output Current 32mA
	Mounting Type Surface Mount
	Package Type SOT-353
	Pin Count 5
	Logic Family LMOS
	Dimensions 2 x 1.25 x 0.9mm
	Height 0.9mm
	Maximum Operating Supply Voltage 5.5 V
	Automotive Standard AEC-Q100
	Width 1.25mm
	Minimum Operating Temperature -40 °C
	Minimum Operating Supply Voltage 1.65 V
	Length 2mm
	Propagation Delay Test Condition 50pF
	Maximum Operating Temperature +125 °C

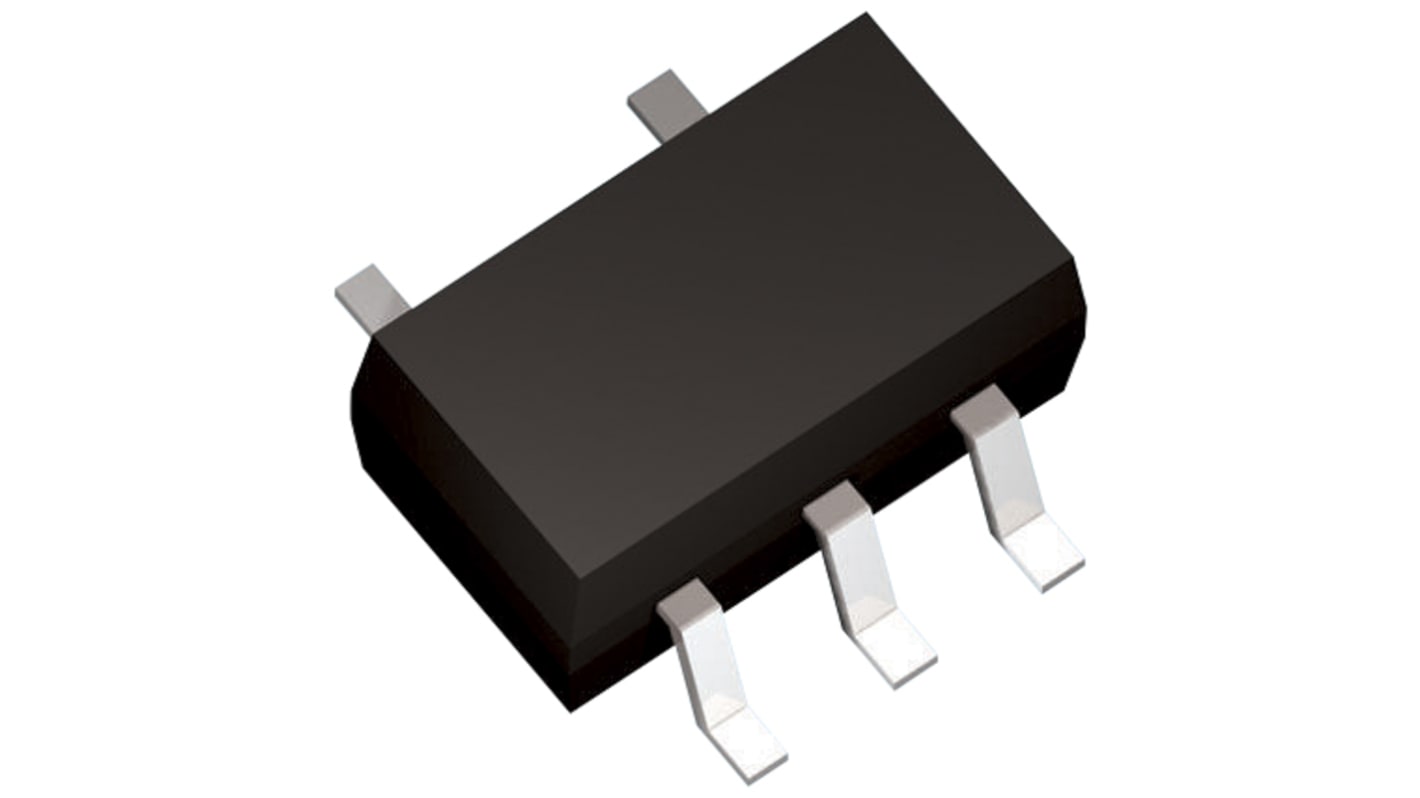

Toshiba TC7SZ05FU Inverter, 5-Pin SOT-353
