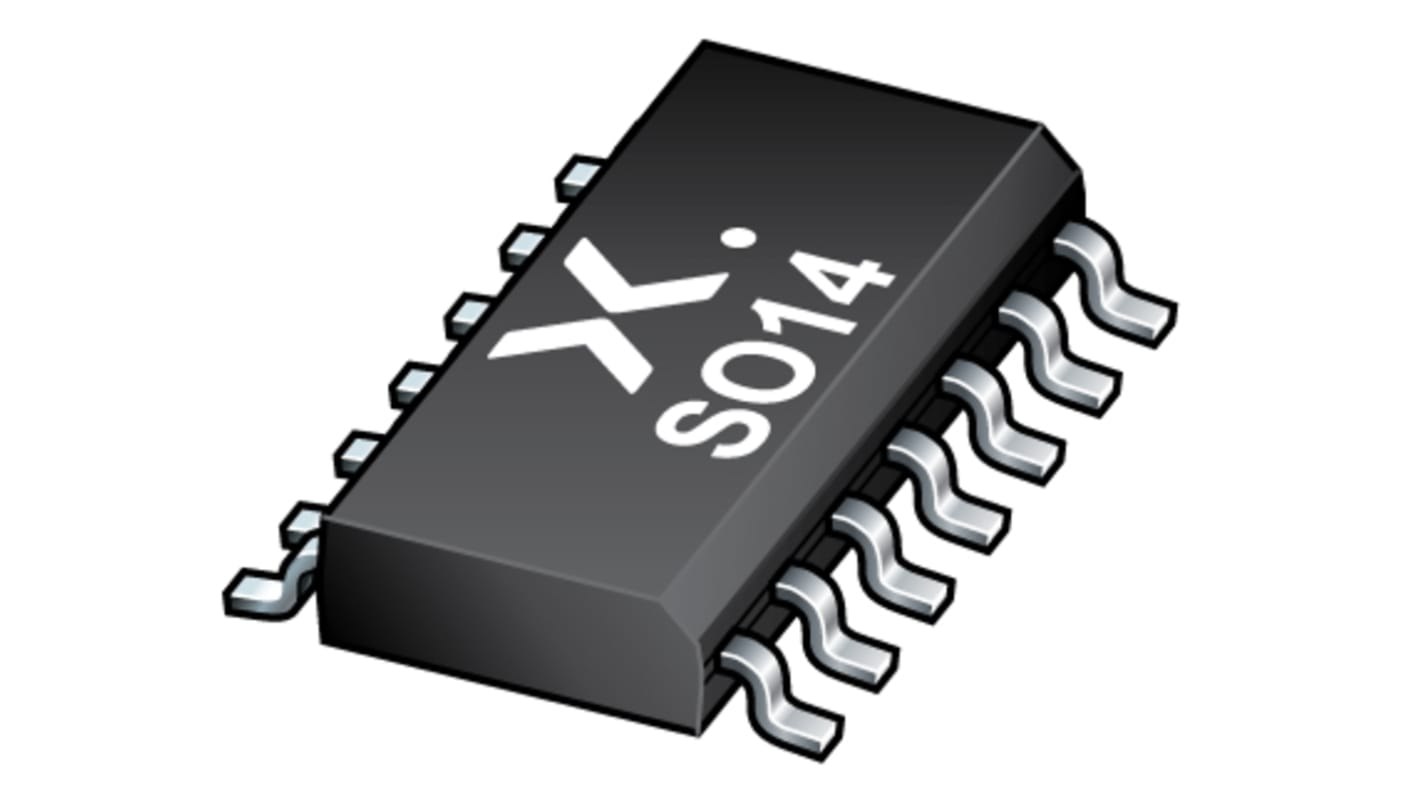

Nexperia 74HCT04D,653 Hex Inverter, 14-Pin SO
- RS Stock No.:
- 170-8010
- Mfr. Part No.:
- 74HCT04D,653
- Manufacturer:
- Nexperia
27500 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (On a Reel of 2500)
MYR0.683
| Units | Per Unit | Per Reel* |
| 2500 - 2500 | MYR0.683 | MYR1,707.50 |
| 5000 - 10000 | MYR0.67 | MYR1,675.00 |
| 12500 - 22500 | MYR0.656 | MYR1,640.00 |
| 25000 + | MYR0.643 | MYR1,607.50 |
| *price indicative | ||
- RS Stock No.:
- 170-8010
- Mfr. Part No.:
- 74HCT04D,653
- Manufacturer:
- Nexperia
Technical data sheets
Legislation and Compliance
Product Details
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
74HCT Family
Specifications
Attribute | Value |
|---|---|
| Input Type | TTL |
| Output Type | Single Ended |
| Number of Elements per Chip | 6 |
| Maximum Propagation Delay Time @ Maximum CL | 29 ns @ 50 pF |
| Maximum High Level Output Current | -4mA |
| Maximum Low Level Output Current | 5.2mA |
| Mounting Type | Surface Mount |
| Package Type | SO |
| Pin Count | 14 |
| Logic Family | 74HCT |
| Dimensions | 8.75 x 4 x 1.45mm |
| Height | 1.45mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Minimum Operating Temperature | -40 °C |
| Propagation Delay Test Condition | 50pF |
| Length | 8.75mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Supply Voltage | 4.5 V |
| Width | 4mm |
