Units	Per Unit	Per Reel**
3000 - 3000	MYR0.356	MYR1,068.00
6000 - 9000	MYR0.348	MYR1,044.00
12000 +	MYR0.342	MYR1,026.00

Select all	Attribute	Value
	Brand	onsemi
	Logic Function	Inverter
	Input Type	Schmitt Trigger
	Output Type	CMOS
	Number of Elements per Chip	1
	Schmitt Trigger Input	Yes
	Maximum Propagation Delay Time @ Maximum CL	20.5 ns @ 50 pF
	Maximum High Level Output Current	-8mA
	Maximum Low Level Output Current	8mA
	Mounting Type	Surface Mount
	Package Type	SOT-23
	Pin Count	5
	Logic Family	VHC
	Dimensions	3 x 1.5 x 1mm
	Height	1mm
	Maximum Operating Supply Voltage	5.5 V
	Maximum Operating Temperature	+125 °C
	Minimum Operating Supply Voltage	2 V
	Propagation Delay Test Condition	50pF
	Length	3mm
	Width	1.5mm
	Minimum Operating Temperature	-55 °C

	Select all
	Brand onsemi
	Logic Function Inverter
	Input Type Schmitt Trigger
	Output Type CMOS
	Number of Elements per Chip 1
	Schmitt Trigger Input Yes
	Maximum Propagation Delay Time @ Maximum CL 20.5 ns @ 50 pF
	Maximum High Level Output Current -8mA
	Maximum Low Level Output Current 8mA
	Mounting Type Surface Mount
	Package Type SOT-23
	Pin Count 5
	Logic Family VHC
	Dimensions 3 x 1.5 x 1mm
	Height 1mm
	Maximum Operating Supply Voltage 5.5 V
	Maximum Operating Temperature +125 °C
	Minimum Operating Supply Voltage 2 V
	Propagation Delay Test Condition 50pF
	Length 3mm
	Width 1.5mm
	Minimum Operating Temperature -55 °C

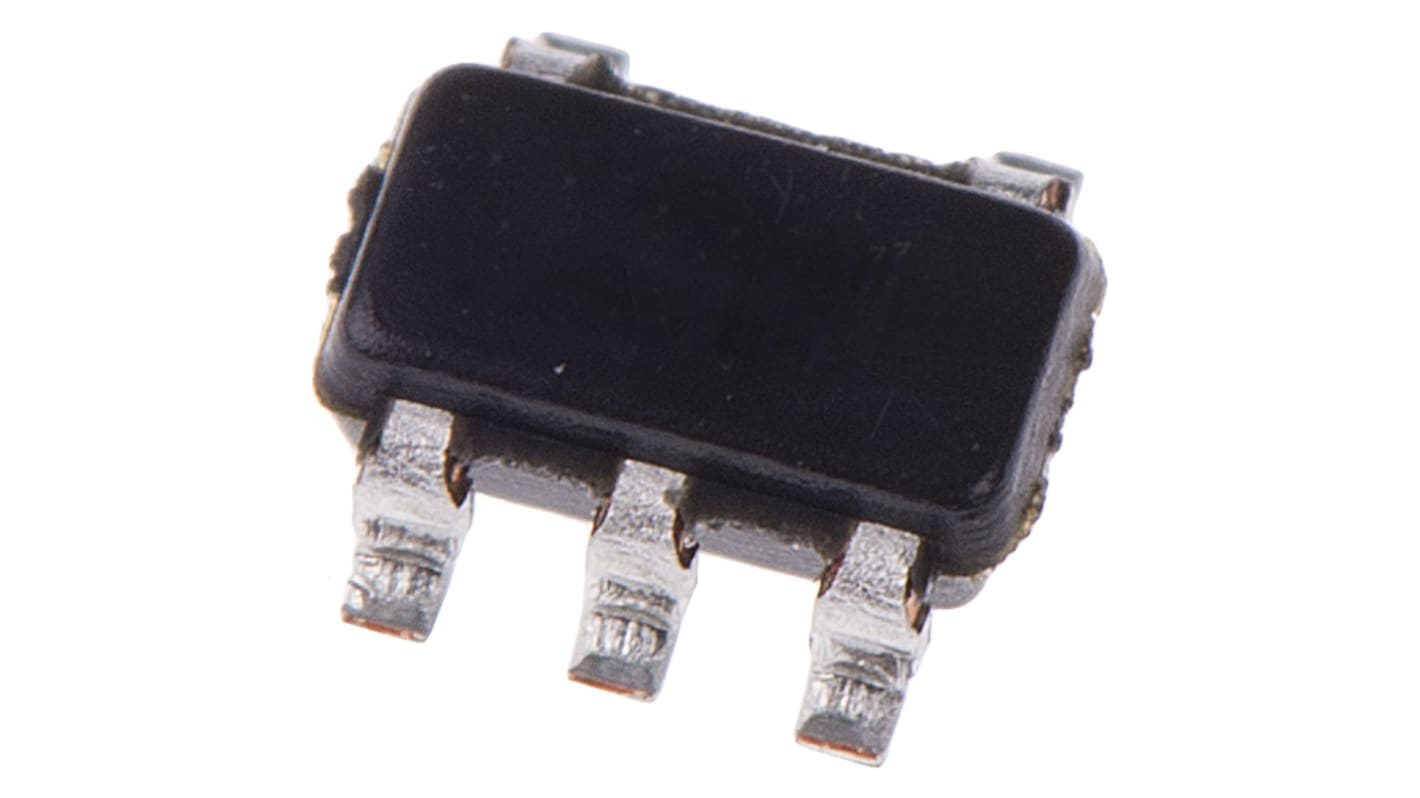

onsemi MC74VHC1G14DTT1G Schmitt Trigger Inverter, 5-Pin SOT-23

FREE delivery for orders over MYR500.00

74VHC1G Family, ON Semiconductor

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
