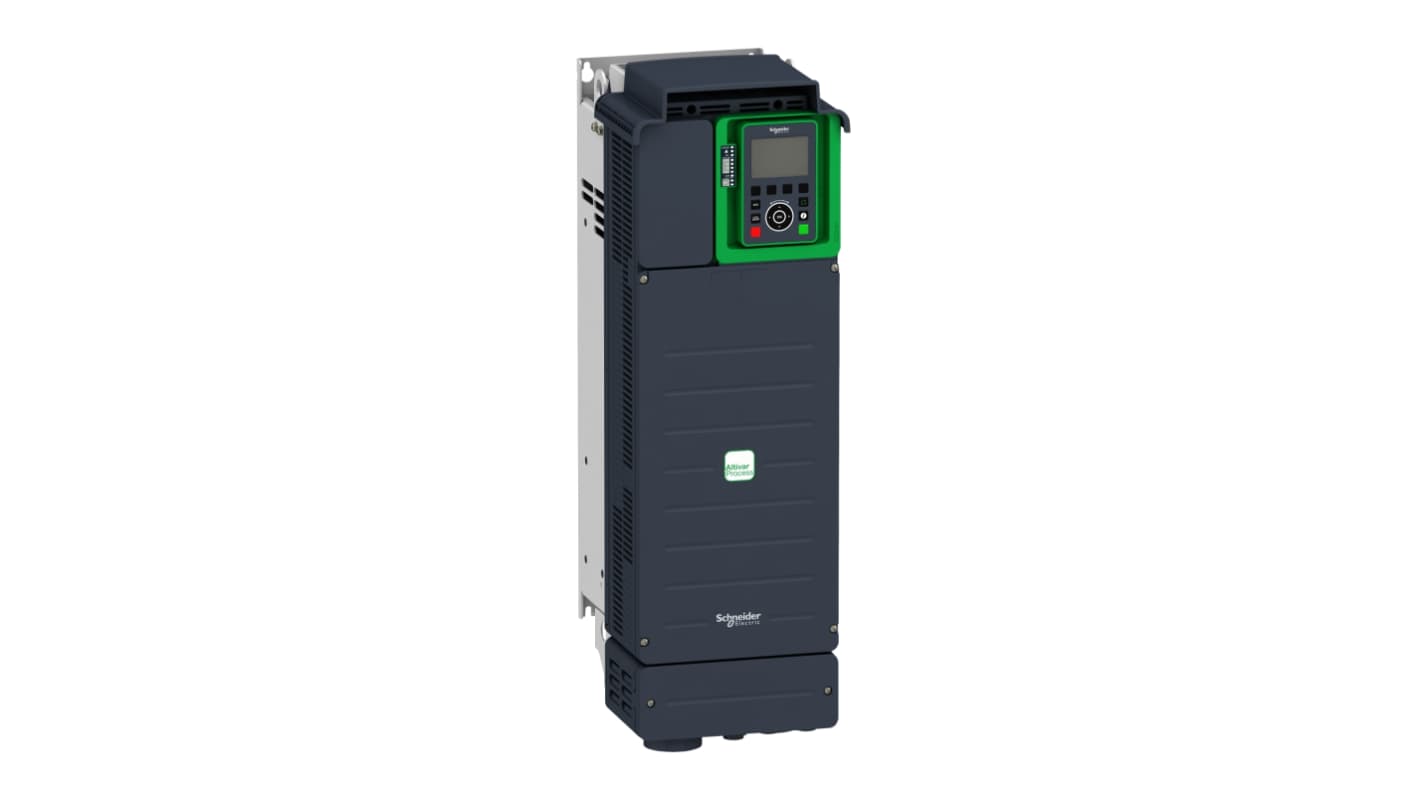

Schneider Electric Variable Speed Drive, 30 kW, 37 kW, 3 Phase, 400 V ac, 54.8 A, 66.2 A, ATV930 Series

RS Stock No.:: 162-4951
Mfr. Part No.:: ATV930D37N4
Manufacturer:: Schneider Electric

Schneider Electric Variable Speed Drive, 30 kW, 37 kW, 3 Phase, 400 V ac, 54.8 A, 66.2 A, ATV930 Series

Temporarily out of stock - back order for despatch 11/06/2024, delivery within 4 working days from despatch date

Added

Price Each

MYR40,947.96

Units	Per Unit
1 +	MYR40,947.96

RS Stock No.:: 162-4951
Mfr. Part No.:: ATV930D37N4
Manufacturer:: Schneider Electric

Technical data sheets

Legislation and Compliance

Product Details

Schneider Electric Variable Speed Drive

The Altivar ATV930D37N4 is a variable speed drive for three-phase synchronous and asynchronous motors from Schneider Electric. The Altivar Process 900 series is focused on maximum productivity with exceptional motor control and connectivity. It has been designed to meet requirements of the most demanding systems and can be applied within a wide range of industries.

Features and Benefits:

• Professional Variable Speed Drive for industrial application
• Suitable for asynchronous and synchronous motors
• Excellent motor performance on induction or permanent magnet motors
• Total management and flexibility of speed and torque on rigid and elastic coupling
• Simple exchange of power modules and fans

Typical applications:

Altivar ATV930 has been specially designed for the following industries:

• Oil & gas
• Mining, minerals & metals
• Food & beverage
• Water & waste water

It offers special functionalities for the industrial process segments, such as:
• Excellent motor performance on any type of motor
• Total control of any kind of coupling in master/slave applications
• Network services help ensure operation continuity even in case of connection breakdown
• Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance

Aprovals & Certification:

• CSA
• TÜV
• UL
• REACH
• IEC 13849-1 / IEC 61508 / IEC 60721-3 / IEC 61000-3-12
• EN/IEC 61800-5-1 / EN/IEC 61800-3 (environment 2 category C3) / EN/IEC 61800-3 (environment 1 category C2) / EN/IEC 61800-3
• UL 508C
• CE
• IP21
• UL type 1 conforming to UL 508C

Variable Speed Drivers

Altivar Process ATV900

Three-Phase Supply Voltage :380 to 480 V 50/60 Hz

Specifications

Attribute	Value
Power Rating	30 kW, 37 kW
Phase	3
Supply Voltage	400 V ac
Current Rating	54.8 A, 66.2 A
Series	ATV930
For Use With	Asynchronous Motors, Synchronous Motors
Field Bus Communication Type	Profibus
IP Rating	IP21
Output Frequency	0.1 → 599Hz
STO	Yes
Drive Type	Variable Speed
Mounting Type	Wall Mount
Filter Included	Yes
Control Panel	Yes
Better World Verification	Green Premium
Better World Product	Yes
Better World Claim	Saves energy
Function	Motor Control
Overall Length	226mm
Overall Depth	673mm
Overall Width	271mm
Standards Met	EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 13849-1, IEC 60721-3, IEC 61000-3-12, IEC 61508, UL 508C
Special Features	Earth Continuity, Ease of Installation, Maintenance of the Variable Speed Drive Fan (Kit Sizes 4 and 5), Strength, Tightness
