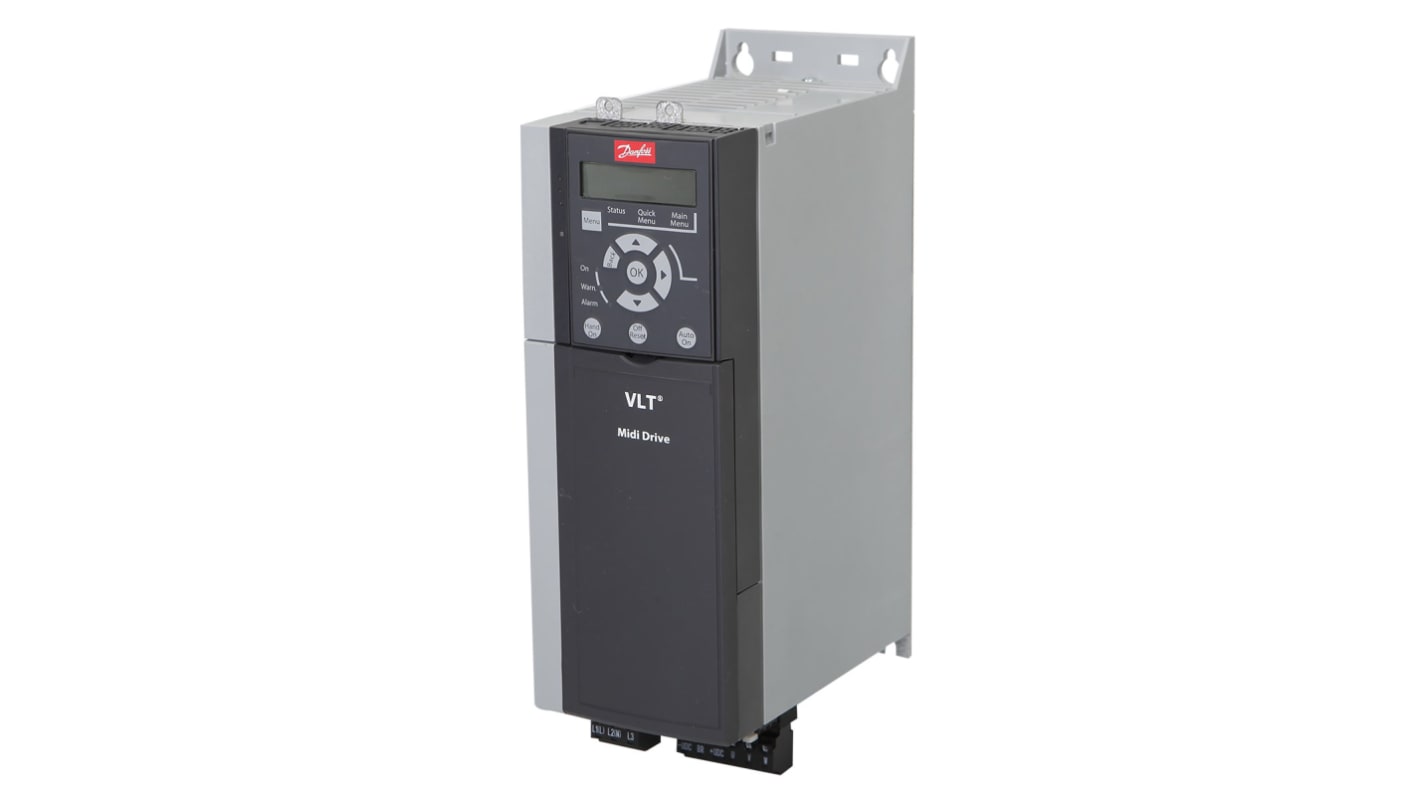

Danfoss Inverter Drive, 0.55 kW, 3 Phase, 400 V ac, 1.2 A, 1.6 A, FC280 Series
- RS Stock No.:
- 125-0752
- Mfr. Part No.:
- 134U2978
- Manufacturer:
- Danfoss
Temporarily out of stock - back order for despatch 08/05/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR3,031.98
| Units | Per Unit |
| 1 + | MYR3,031.98 |
- RS Stock No.:
- 125-0752
- Mfr. Part No.:
- 134U2978
- Manufacturer:
- Danfoss
Legislation and Compliance
- COO (Country of Origin):
- DK
Product Details
Inverter VLT FC280
The VLT Midi drive FC280 provides a wide range of features that are designed to make installing, using and maintaining the AC drive as simple and easy as possible. The midi inverter drive is an ideal choice in various applications for its strong control performance, functional safety and flexible fieldbus communication.
The drives are prepared for compatibility with the VLT 2800 for a fast, efficient retrofit.
The drives are prepared for compatibility with the VLT 2800 for a fast, efficient retrofit.
Features and Benefits
• Compact design for easy and fast installation and set-up
• Delivered without Control panel
• Control panel with LCD available in two versions:
• Savings on cost and space
• Flexibility to suit any task
• Pluggable connectors, integrated DC choke, RFI filter and dual-channel STO functional safety
• Integrated PID controller
• Easy PC connection via integrated USB port
• Fieldbus communication options, depending on model:
- Profibus
- Profinet with dual port
- Ethernet/IP with dual port
- CANopen
- Modbus RTU and FC Protocol are integrated as standard
• Programmable digital and analogue inputs and outputs
• Delivered without Control panel
• Control panel with LCD available in two versions:
• Savings on cost and space
• Flexibility to suit any task
• Pluggable connectors, integrated DC choke, RFI filter and dual-channel STO functional safety
• Integrated PID controller
• Easy PC connection via integrated USB port
• Fieldbus communication options, depending on model:
- Profibus
- Profinet with dual port
- Ethernet/IP with dual port
- CANopen
- Modbus RTU and FC Protocol are integrated as standard
• Programmable digital and analogue inputs and outputs
Note
No control panel is included, to be purchased separately
Danfoss VLT FC280 Range
Specifications
Attribute | Value |
|---|---|
| Power Rating | 0.55 kW |
| Phase | 3 |
| Supply Voltage | 400 V ac |
| Current Rating | 1.2 A, 1.6 A |
| Series | FC280 |
| For Use With | Asynchronous Motors, Synchronous Motors |
| IP Rating | IP20 |
| Output Frequency | 0 → 500Hz |
| STO | Yes |
| Drive Type | Variable Frequency |
| Mounting Type | Panel Mount |
| Filter Included | Yes |
| Control Panel | No |
| Better World Claim | Saves energy |
| Better World Product | Yes |
| Overall Width | 168mm |
| Standards Met | CE, cUL Listed, EMC Compliant, RCM (C-Tick), TUV, UL Listed |
| Overall Depth | 210mm |
| Function | Motor Control |
| Overall Length | 75mm |
| Special Features | Fault Condition Monitoring, Operational Status Reporting, Programmable, Safety Feature, Serial Communication Capabilities |
