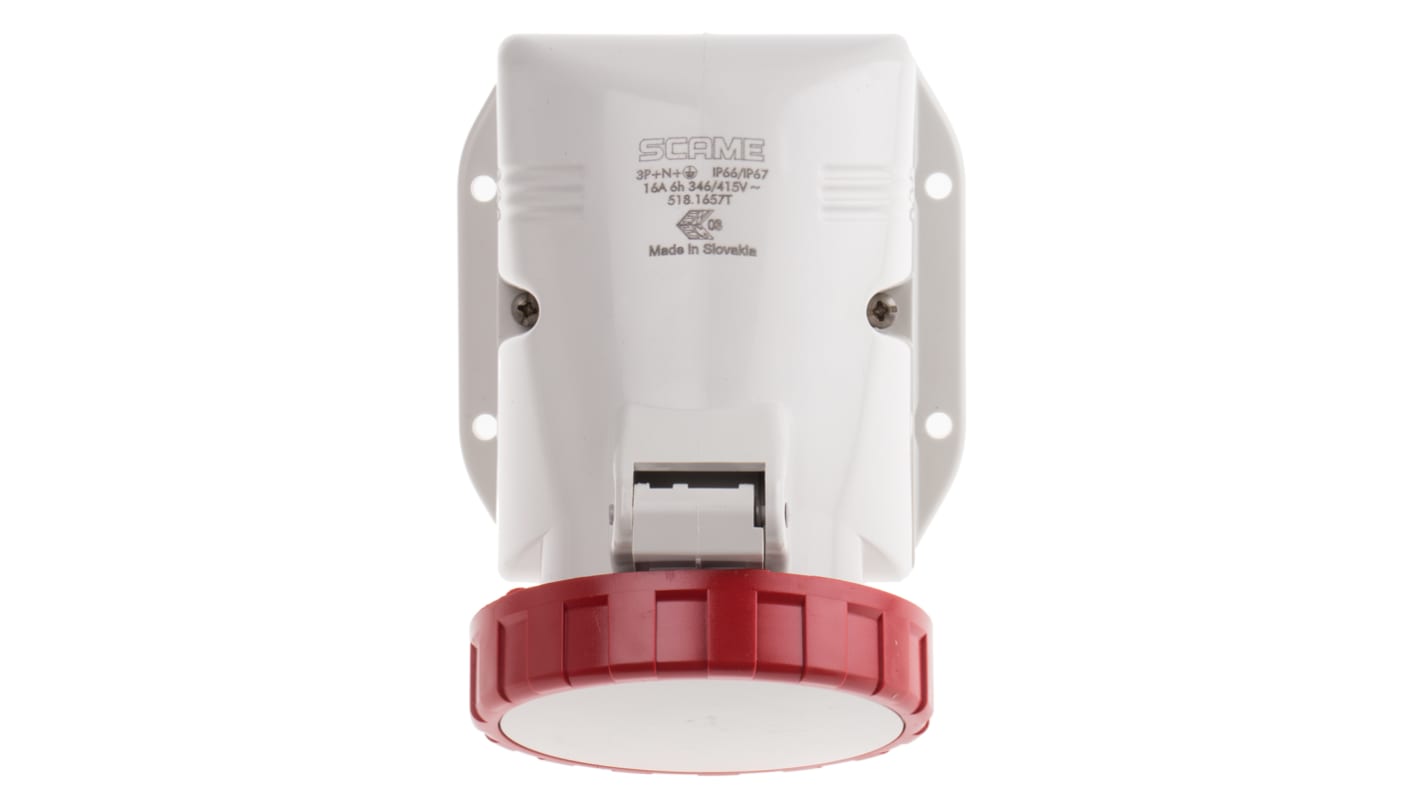

RS PRO IP66, IP67 Red Wall Mount 3P+N+E Industrial Power Socket, Rated At 16A, 415 V

  • RS Stock No. 781-2715
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): SK
Product Details

Industrial Top Mount Socket Outlets

A comprehensive range of top mount outlet sockets for industrial use with units available for 16A and 32A currents and which are IP66/67 rated, featuring robust screw terminals and the housing is manufactured from halogen free engineering plastic. These industrial outlet sockets have threaded knockouts that accept a suitably sized cable gland, ranging from 2xM20 - 3xM25 for 16A versions and 3xM32 for 32A (model specific).

Halogen-free engineering polymer
Nickel-plated pins
Insulating voltage 500/690V

Standards

EN60309-1, EN60309-2

RS Pro - IP67 Plugs and Sockets

Specifications
Attribute Value
Current Rating 16A
Plug/Socket Socket
Pole Format 3P+N+E
Voltage Rating 415 V
Mounting Type Wall Mount
IP Rating IP66, IP67
Colour Red
Gender Female
Termination Method Screw
Maximum Operating Temperature +40°C
Minimum Operating Temperature -25°C
28 In Global stock for delivery within 4 - 6 working days
Price Each
Was MYR168.06
MYR 166.31
units
Per unit
1 - 4
MYR166.31
5 +
MYR160.49
