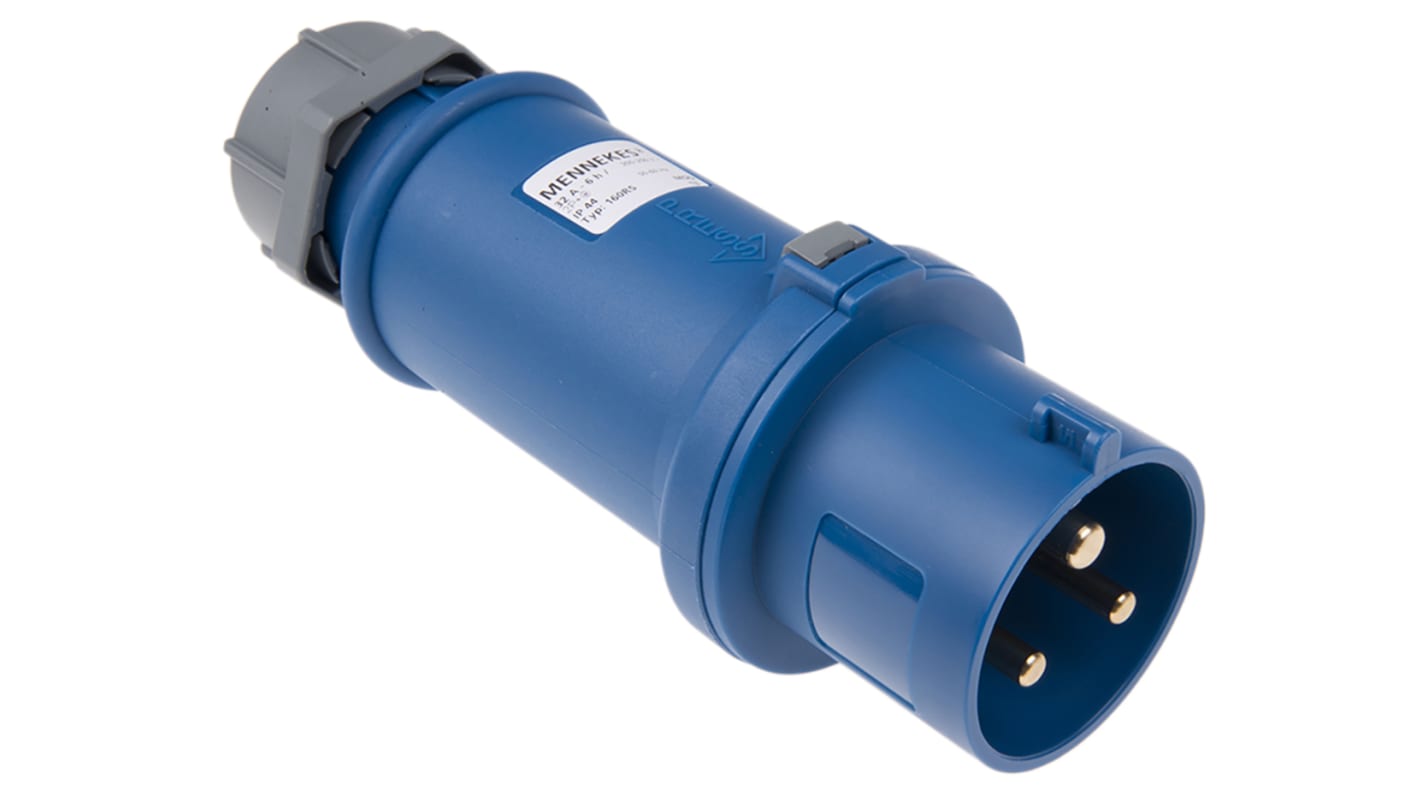

MENNEKES, ProTOP IP44 Blue Cable Mount 2P+E Industrial Power Plug, Rated At 32.0A, 230 V

  • RS Stock No. 530-6123
  • Mfr. Part No. 160
  • Manufacturer MENNEKES
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

ProTOP Plugs and Connectors

ProTop connectors have a cable gland with integral protection against kinking
Front and cover fitted with thread lock and safety slide
Open Terminal Screws all facing the same direction

Mennekes ProTOP & StarTOP

Plugs and sockets conforming to the latest requirements of British and European standards. The insulator outer casing and interiors are manufactured from Amaplast (nylon 6) for excellent mechanical performance from -25°C to +55°C (ambient temperature). This material provides good electrical insulation and will meet the requirements of most industrial environments.,Contact tubes and pins are made of brass. To prevent incorrect connection, the earth contact is in a different position, relative to the safety key way on each socket outlet, for each voltage.,Products are type tested to VDE.

Specifications
Attribute Value
Current Rating 32.0A
Plug/Socket Plug
Pole Format 2P+E
Voltage Rating 230 V
Mounting Type Cable Mount
IP Rating IP44
Colour Blue
Gender Male
Body Orientation Straight
Termination Method Screw Terminal
Series ProTOP
Cable CSA 2.5 → 6mm²
Minimum Operating Temperature -25°C
Maximum Operating Temperature +55°C
Low Voltage No
109 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 115.49
units
Per unit
1 - 4
MYR115.49
5 +
MYR112.61
