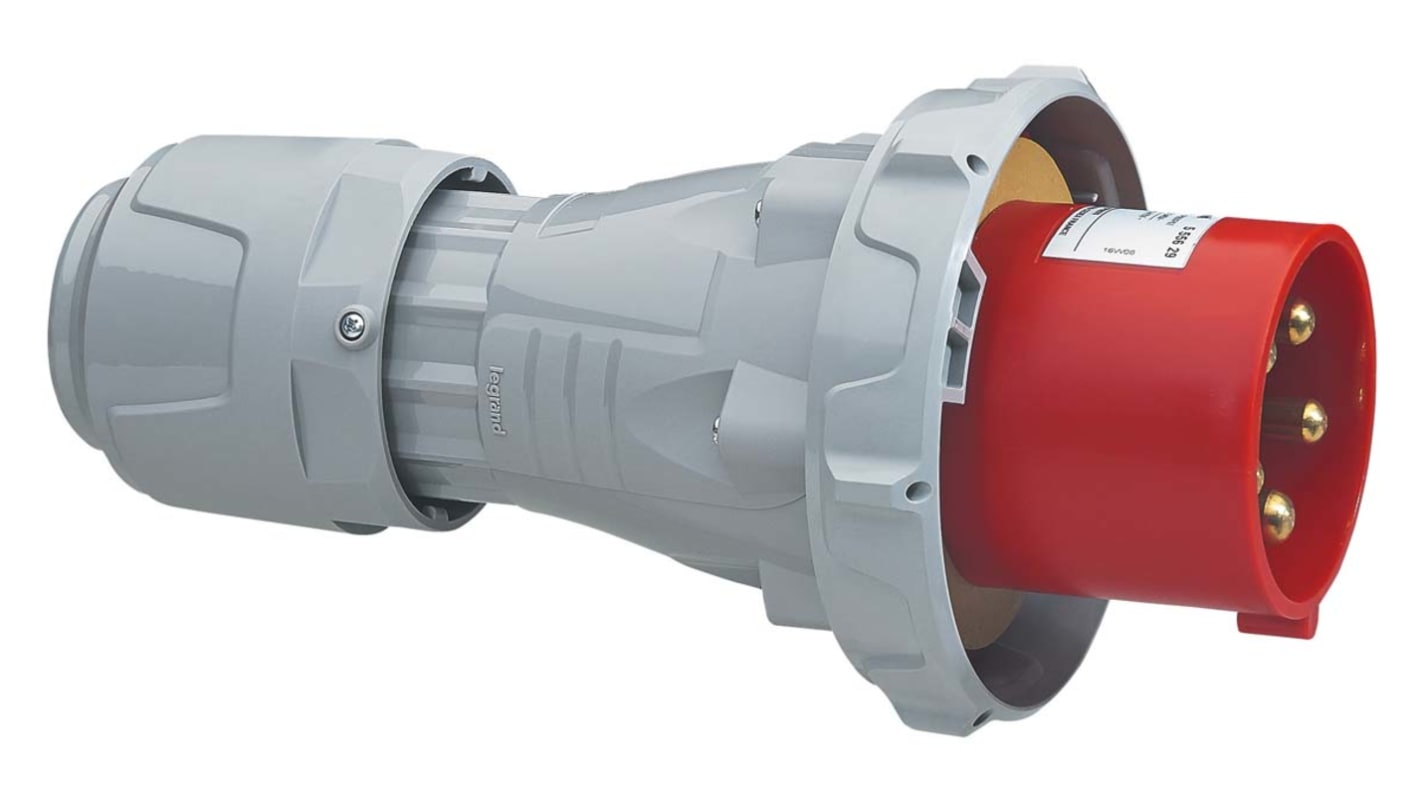

Legrand IP67 Red Cable Mount 3P+N+E Industrial Power Plug, Rated At 125A, 415 V

  • RS Stock No. 136-2728
  • Mfr. Part No. 5 556 29
  • Manufacturer Legrand
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TR
Product Details

P17 Tempra Pro Straight Plug Connectors, IP67

Legrand P17 Tempra Pro straight plug connectors, IP67 rating with 2 or 3 pole and earth/neutral arrangement as stated, ratings from 16 to 125A. The connector body is constructed from polymide 6 material, for use with differing voltages as defined by the colour of the cap, yellow 100 to 130V, blue 200 to 250V, red 380 to 415V. Features a single captive screw per terminal for easy connectivity, supplied unlocked.

Standards

BS EN 60309-1, IEC 60309-1 , BS EN 60309-2, IEC 60309-2

Legrand P17 Tempra Pro Industrial Power Connectors

Specifications
Attribute Value
Current Rating 125A
Plug/Socket Plug
Pole Format 3P+N+E
Voltage Rating 415 V
Mounting Type Cable Mount
IP Rating IP67
Colour Red
Gender Male
Body Orientation Straight
Termination Method Screw
Maximum Operating Temperature +40°C
Minimum Operating Temperature -25°C
6 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 1,175.15
units
Per unit
1 +
MYR1,175.15
