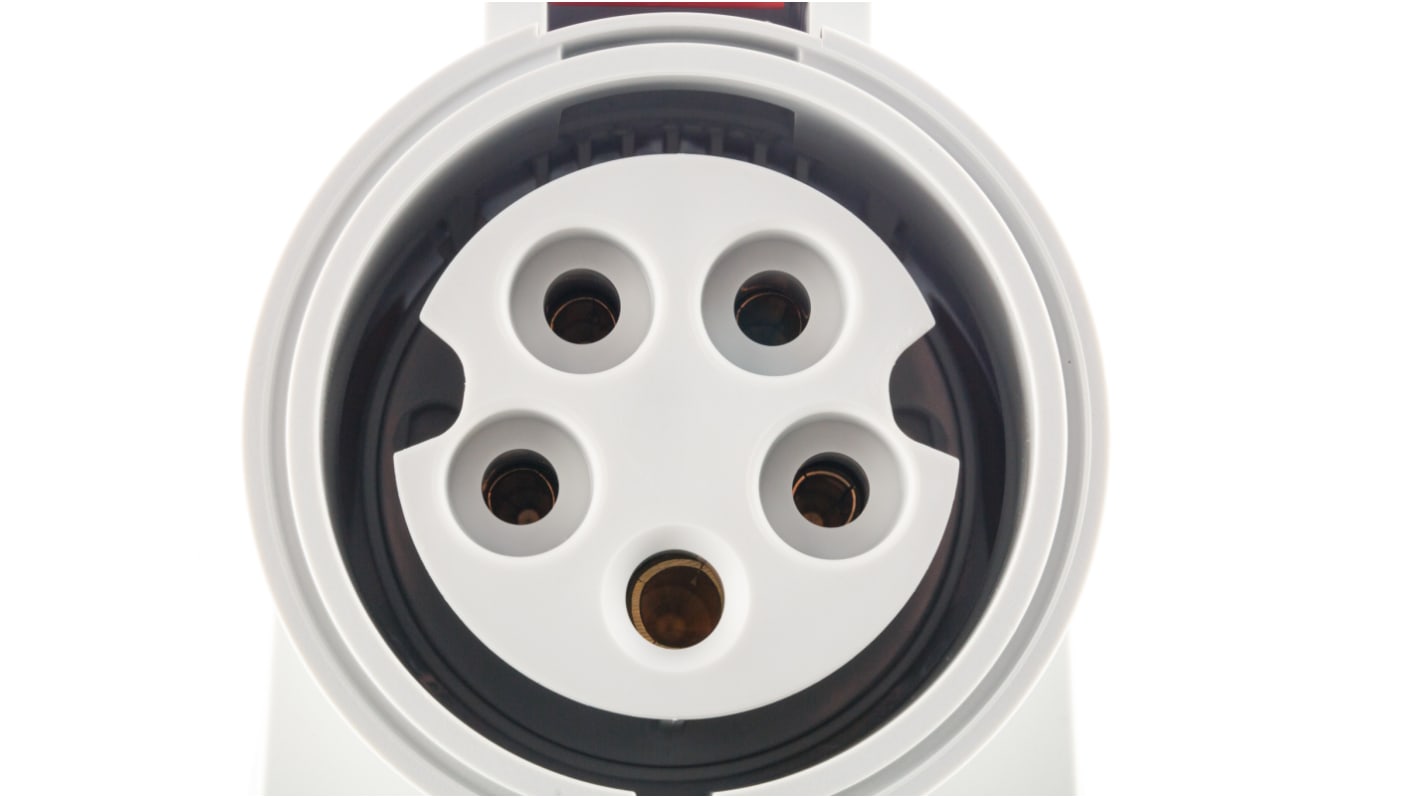

Mennekes IP44 Red Wall Mount 3P+N+E 20 ° Industrial Power Socket, Rated At 32A, 415 V

  • RS Stock No. 490-560
  • Mfr. Part No. 1557
  • Manufacturer Mennekes
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Wall Mounted Receptacles

From Mennekes, this wall mounted socket features a hinged socket protector and is available in contact arrangements of 3 to 5 Pole. With a vertically oriented socket for a more secure connection, these wall mounted receptacles are well suited to industrial applications.

Note

16/32A suitable for mating with AM-TOP, ProTOP or StarTOP free plugs. 63/125A suitable for mating with PowerTOP plugs.

Standards

BS4343; EN60309-2

Specifications
Attribute Value
Current Rating 32A
Plug/Socket Socket
Pole Format 3P+N+E
Voltage Rating 415 V
Mounting Type Wall Mount
IP Rating IP44
Colour Red
Gender Female
Body Orientation 20 °
Termination Method Screw Down
150 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 111.40
units
Per unit
1 - 4
MYR111.40
5 +
MYR108.66
