Bulgin Circular Connector, Panel Mount, Miniature Connector, Socket, IP68, Mini Buccaneer Series

RS Stock No.:: 531-863
Mfr. Part No.:: PX0805
Manufacturer:: Bulgin

Bulgin Circular Connector, Panel Mount, Miniature Connector, Socket, IP68, Mini Buccaneer Series

5 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

245 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR34.34

Units	Per Unit
1 - 9	MYR34.34
10 - 49	MYR33.31
50 - 99	MYR32.32
100 +	MYR31.35

RS Stock No.:: 531-863
Mfr. Part No.:: PX0805
Manufacturer:: Bulgin

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: TN

Product Details

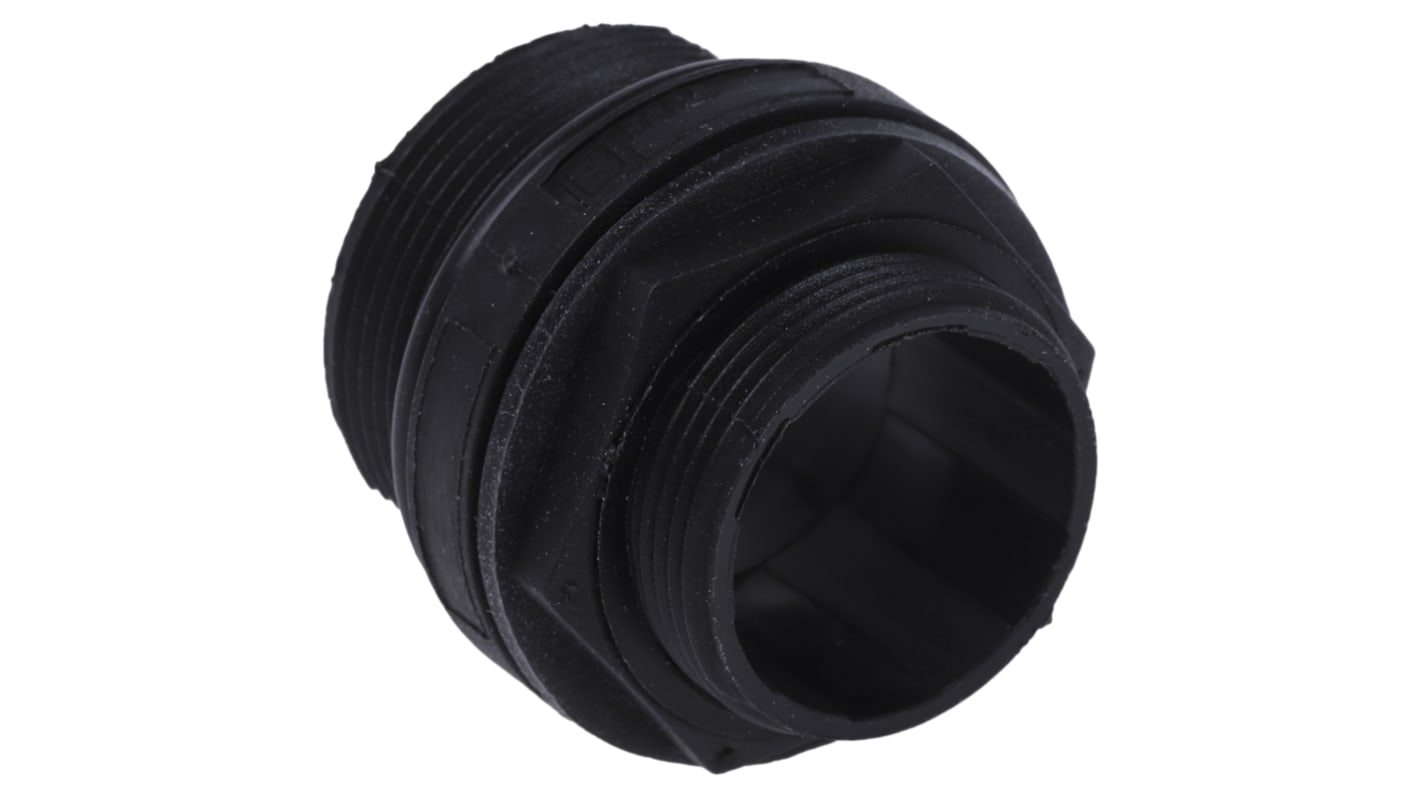

Bulgin Circular Connector

The Bulgin Mini Buccaneer series connector body has a sealing cap with a retaining clip. The panel mount connector shell is made from polyamide (nylon) with a screw thread locking mechanism that ensures a secure connection.
Panel shells are available in 2 styles
Style 1 is a flange mount of robust appearance
Style 2 is a Slimline version with a smaller panel cut out
Both allow the attachment of a sealing cap
Note:
Contacts not included

Features and Benefits

Straight body orientation
Screw termination
Operation temperature ranges between -20°C and 70°C
Threaded mating
Unshielded
Water and dustproof

Applications

Industrial automation
Marine applications

Certifications

IP68 rated
UL approved

Approvals

Specifications

Attribute	Value
Mounting Type	Panel Mount
Connector Size	Miniature
Plug/Socket	Socket
Termination Method	Screw Down, Solder
IP Rating	IP68
Body Orientation	Straight
Series	Mini Buccaneer
Mating Type	Threaded
Housing Material	Polymer
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+70°C
