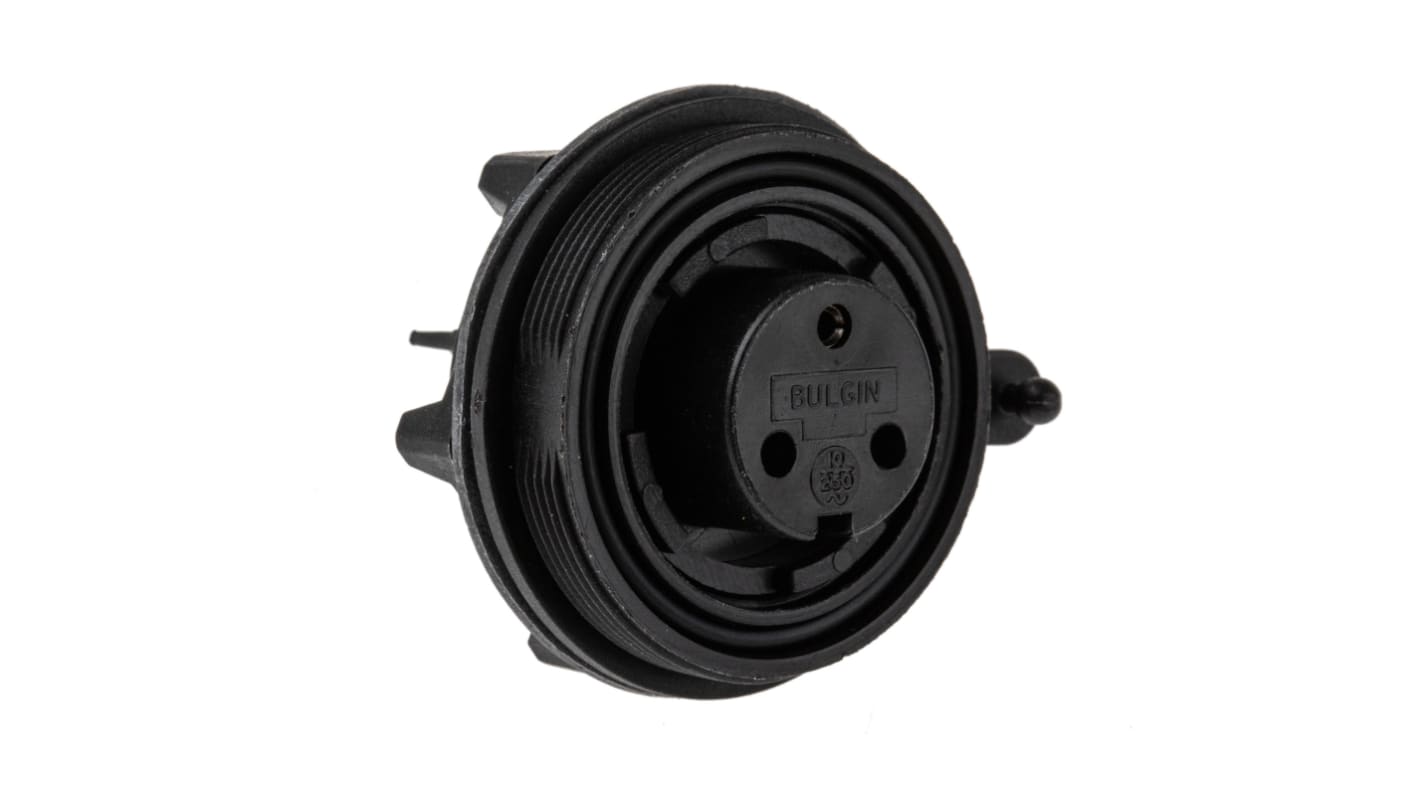

Bulgin Circular Connector, 3 Contacts, Panel Mount, Socket, Female, IP68, Standard Buccaneer Series

RS Stock No.:: 483-916
Distrelec Article No.:: 144-62-362
Mfr. Part No.:: PX0730/S
Manufacturer:: Bulgin

Bulgin Circular Connector, 3 Contacts, Panel Mount, Socket, Female, IP68, Standard Buccaneer Series

Bulk discount available

Price Each

MYR91.22

770 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 - 9	MYR91.22
10 - 49	MYR88.48
50 - 99	MYR85.82
100 +	MYR83.24

RS Stock No.:: 483-916
Distrelec Article No.:: 144-62-362
Mfr. Part No.:: PX0730/S
Manufacturer:: Bulgin

Bulgin Circular Connector

The Bulgin Buccaneer series 3-poles female circular front panel mounting water resistant connector has a socket type connection. This connector has a voltage rating of 250VAC/DC and current rating is up to 12A per contact. This cable mounting connector is ideal for use in challenging conditions.

The connector shell is made from glass-filled polyamide with gold-plated copper alloy contacts. The connectors also feature a positive locking mating system that means the connector cannot be mismatched.

The Standard Series of Buccaneer connectors are protected to IP68 when mated. This means they are dust-tight and resistant to particle ingress such as dust and sand. They are also waterproof, meaning they are protected from liquid ingress up to the point of submersion for a limited time.

Features and Benefits

Screw termination

Straight body orientation

Easy assembly, no special tools required

Insulation resistance is greater than 104Mohm

Operation temperature ranges between -20°C and 70°C

Positive locking keyways

Shell size is 38mm

Unshielded

Waterproof in fresh water to a maximum depth of 1.5 metres for up to 30 minutes

Dustproof

Applications

Electrical equipment

Industrial automation

Power management

Certifications

CSA certified
IP68 rated
UL approved
VDE approved

Frequently Asked Questions

Are there accessories available for this connector?

There are connector caps available for Standard Buccaneer connectors, which maintain the IP68 sealing when mated pairs are uncoupled. The cap can also be used as a tool to aid the removal and refitting of inserts during assembly.

How durable is the connector?

The Standard Buccaneer series of power connectors feature glass filled polyamide moulded housing that is resistant to dust, oil and saltwater.

What are the mating requirements of this connector?

The Buccaneer standard series cable connectors mate with corresponding in-line connectors for a cable-to-cable connection, or with a panel, chassis and PCB connectors.

Are contacts supplied with this connector?

Panel connectors with 2 to 9 poles are supplied with contacts. The 12 to 25 pole connectors are supplied without contacts.

Notes

Never unmate or mate the product while still under load.

Approvals

CSA; UL; VDE

Attribute	Value
Number of Contacts	3
Mounting Type	Panel Mount
Connector Size	Standard
Plug/Socket	Socket
Contact Gender	Female
Termination Method	Screw
IP Rating	IP68
Current Rating	12.0A
Body Orientation	Straight
Series	Standard Buccaneer
Voltage Rating	250 V ac/dc
Mating Type	Threaded
Shell Size	38
Housing Material	Polymer
Strain Relief	No
Contact Plating	Nickel
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-20°C
Contact Material	Brass
