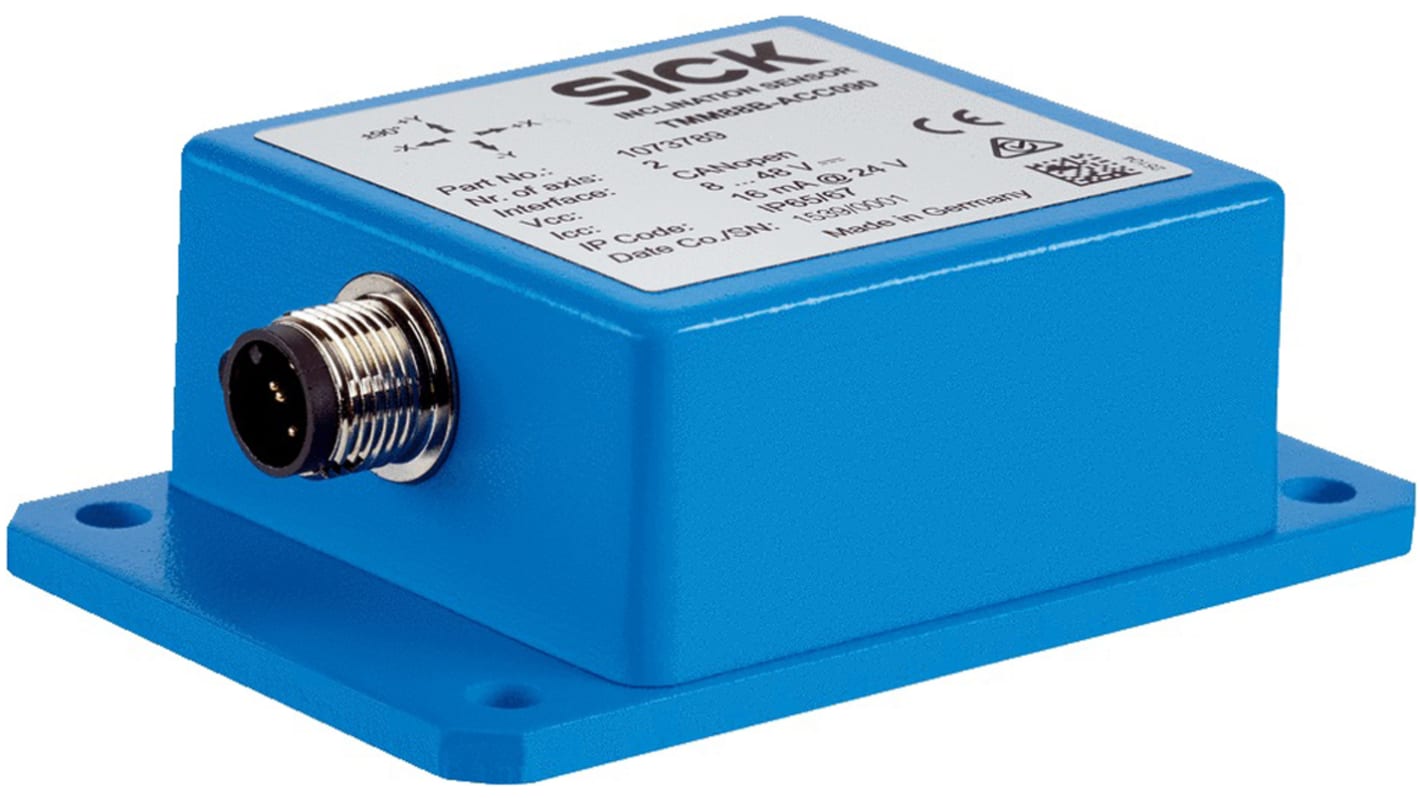

SICK TMS88B-AKC360 Inclination Sensor, IP65, IP67

View all Inclination Sensors

Subtotal (1 unit)*

MYR1,992.77

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +MYR1,992.77

*price indicative

RS Stock No.:
136-9178
Mfr. Part No.:
TMS88B-AKC360
Manufacturer:
SICK
Find similar products by selecting one or more attributes.
Select all

Brand

SICK

Product Type

Inclination Sensor

Connection Type

0.2 m Polyurethane Cable 5x0.34 mm² With 5-Pin Sensor Actuator Male Connector (M12), 5-Pin M12 Sensor Plug Connector (Male Connector)

Supply Voltage

16, 35V dc

Dimensions

90 x 58 x 30 mm

Housing Material

Aluminium

IP Rating

IP65, IP67

Weight

200g

COO (Country of Origin):
DE

TMS88 Series Single-Axis Non-Contact Inclination Sensors


Sick TMS88 series inclination sensors use capacitive MEMS technology to take a non-contact measurement of the inclination angle of an object in relation to the earth’s gravity. TMS88 single-axis sensors take measurements with an accuracy of up to +/- 0.02°. With the rugged and UV-resistant plastic housing, the TMS88 inclination sensors are also ideally suited to outdoor use.

Features and Benefits


Single-dimensional inclination sensor;±360° measuring range with configurable zero point;Fully encapsulated electronics;High-precision
