RS PRO, 250 V ac 10A Chassis Mount IEC Filter Female 2 Fuse, Faston
- RS Stock No.:
- 278-0334
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
MYR110.02
FREE delivery for orders over RM 500.00
In Stock
- 26 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | MYR110.02 |
| 5 - 9 | MYR99.00 |
| 10 - 24 | MYR89.10 |
| 25 - 49 | MYR80.22 |
| 50 + | MYR72.18 |
*price indicative
- RS Stock No.:
- 278-0334
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | IEC Filter | |
| Number of Fuses | 2 | |
| Current | 10A | |
| Connector Gender | Female | |
| Filter Type | EMI | |
| Voltage | 250 V ac | |
| Mount Type | Chassis Mount | |
| Operating Frequency | 50/60 Hz | |
| Termination Type | Faston | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -25°C | |
| Contact Gender | Female | |
| Depth | 49mm | |
| Standards/Approvals | GB/T 15287, CSA C22.2 No.8, UL1283, UL/EN 60939, GB/T 15288-1994 | |
| Width | 32.2 mm | |
| Height | 28mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type IEC Filter | ||
Number of Fuses 2 | ||
Current 10A | ||
Connector Gender Female | ||
Filter Type EMI | ||
Voltage 250 V ac | ||
Mount Type Chassis Mount | ||
Operating Frequency 50/60 Hz | ||
Termination Type Faston | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -25°C | ||
Contact Gender Female | ||
Depth 49mm | ||
Standards/Approvals GB/T 15287, CSA C22.2 No.8, UL1283, UL/EN 60939, GB/T 15288-1994 | ||
Width 32.2 mm | ||
Height 28mm | ||
- COO (Country of Origin):
- CN

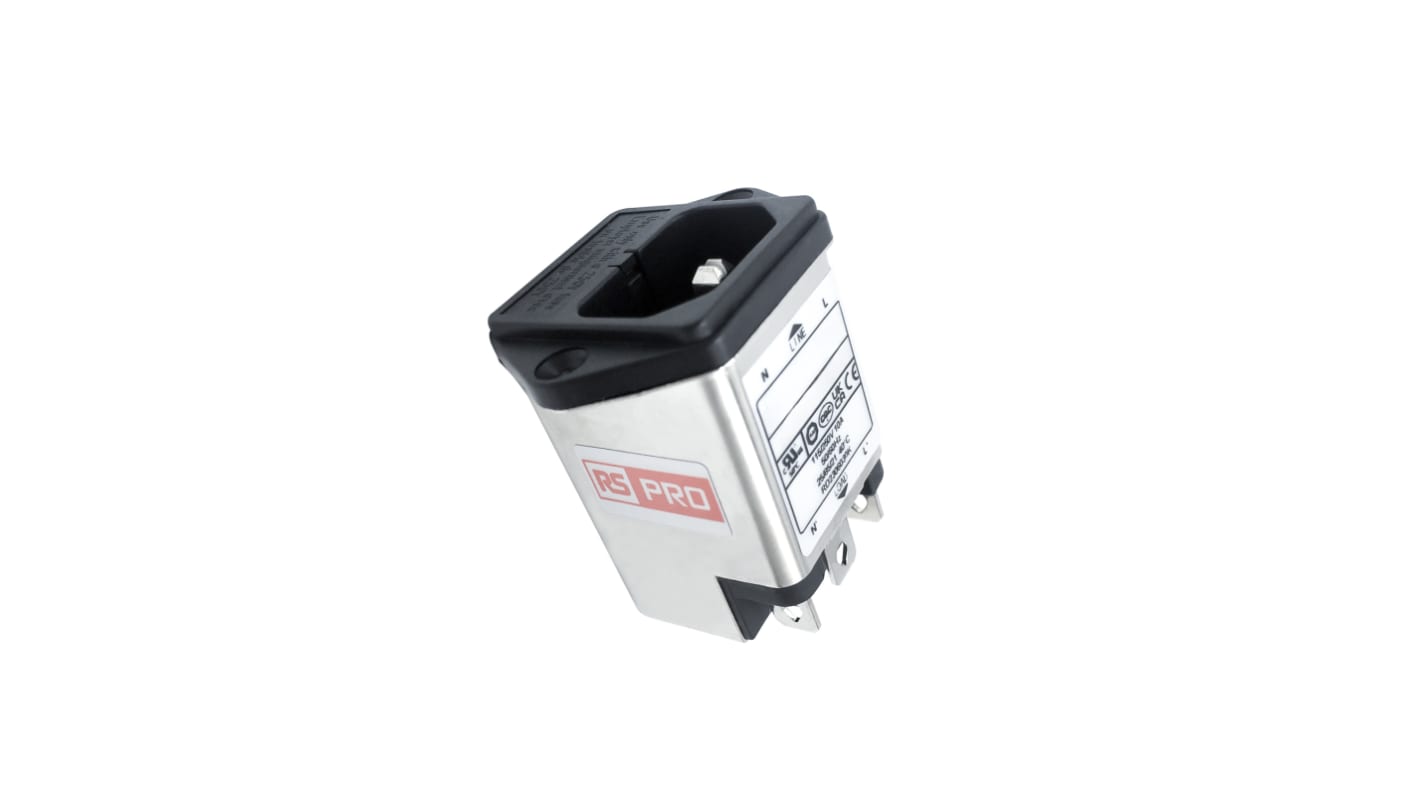

RS PRO 10A Compact IEC EMI Filter (6.35 x 0.8mm)
A high quality EMI filter with an IEC inlet for the reduction of electromagnetic interference through power lines protecting sensitive connected equipment.;Designed for chassis mounting and built to a compact size of 49 x 28 x 32.2mm the power line filter is ideal for areas with limited space and is easily connected using the 6.3 x 0.8mm fast on terminals.;Featuring an IP40 rating suitable for indoor use and a wide operating range of -25°C to 85°C the EMI power line filter is hardwearing and specially designed for use with house hold appliances. ;Also suitable for use with general electrical and electronic equipment, sensitive medical equipment, power supplies and communication equipment.
Features and Benefits
Power line EMI filter;IEC inlet;Current rated to 10A;Inductance of 2 x 0.3mH;Capacitance of 3300pF;Hipot Rating 2250Vdc (line to ground), 1450Vdc (line to line);IP40 rated;Dimensions of 49 x 28 x 32.2mm;36mm between mounting holes;6.3 x 0.8mm Fast on terminals;Weight of 50g
Standards and Approvals: UL, TUV, CQC, CE, UKCA, UL EN 60939, UL1283; CSA C22.2 No.8; GB/T 15287; GB/T 15288-1994
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
Standards
UL E542953, UL 1283
