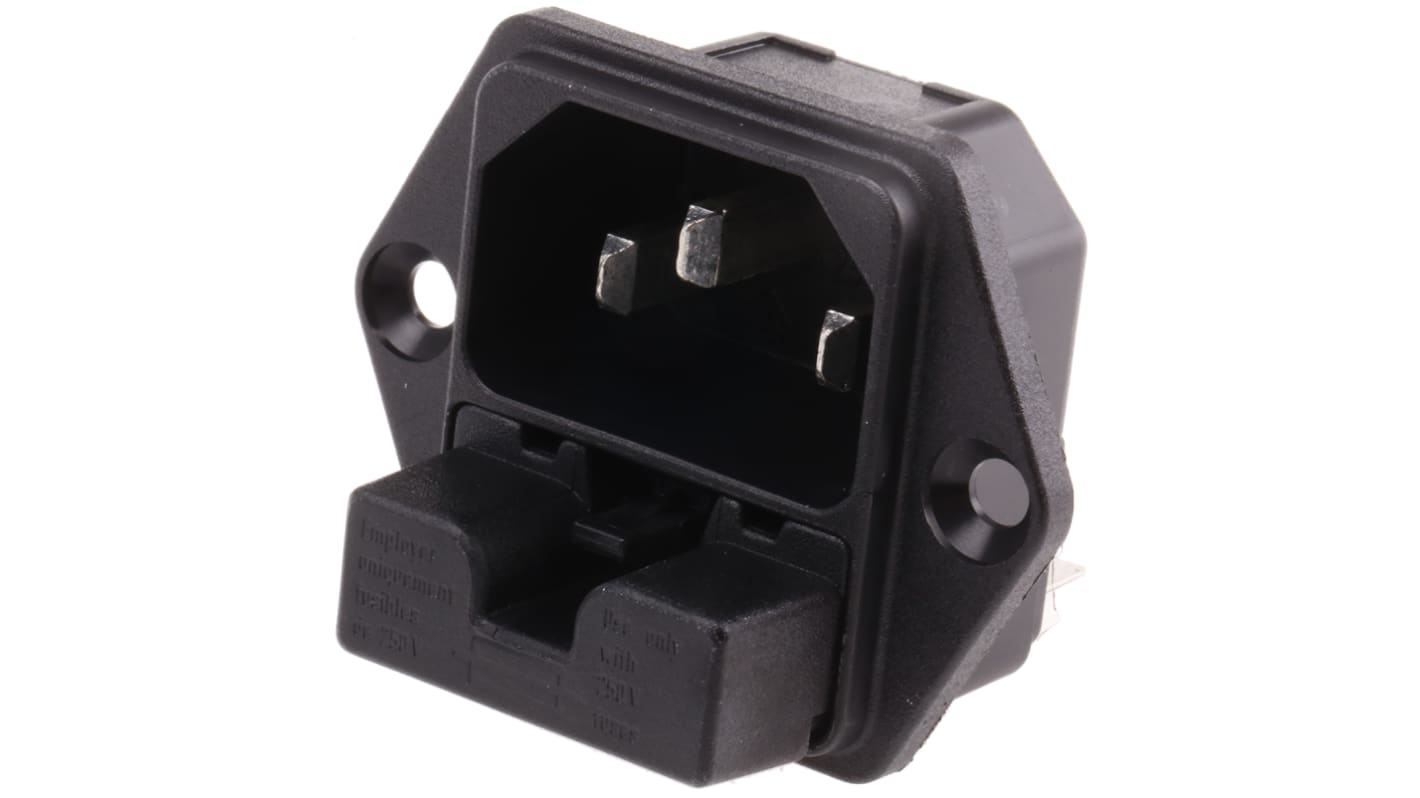

Schurter C14 Panel Mount IEC Plug Male, 10A, 250 V ac

  • RS Stock No. 539-2130
  • Mfr. Part No. 6220.2300
  • Manufacturer Schurter
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

EEC 22 male panel mount sockets with fuse-holder, 6220 Series

This male panel mount socket with a 5 x 20-mm / 2-pole fuse-holder is secured using self-tapping screws (not supplied).
Connection via Faston (6.3 x 0.8 mm).
For panels with 6-mm maximum thickness.
C14 type connector.

Specifications
Attribute Value
IEC Connector Type C14
Mounting Type Panel Mount
Gender Male
Current Rating 10A
Body Orientation Straight
Voltage Rating 250 V ac
66 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 28.87
units
Per unit
1 - 9
MYR28.87
10 - 24
MYR27.71
25 - 49
MYR26.64
50 +
MYR25.39
