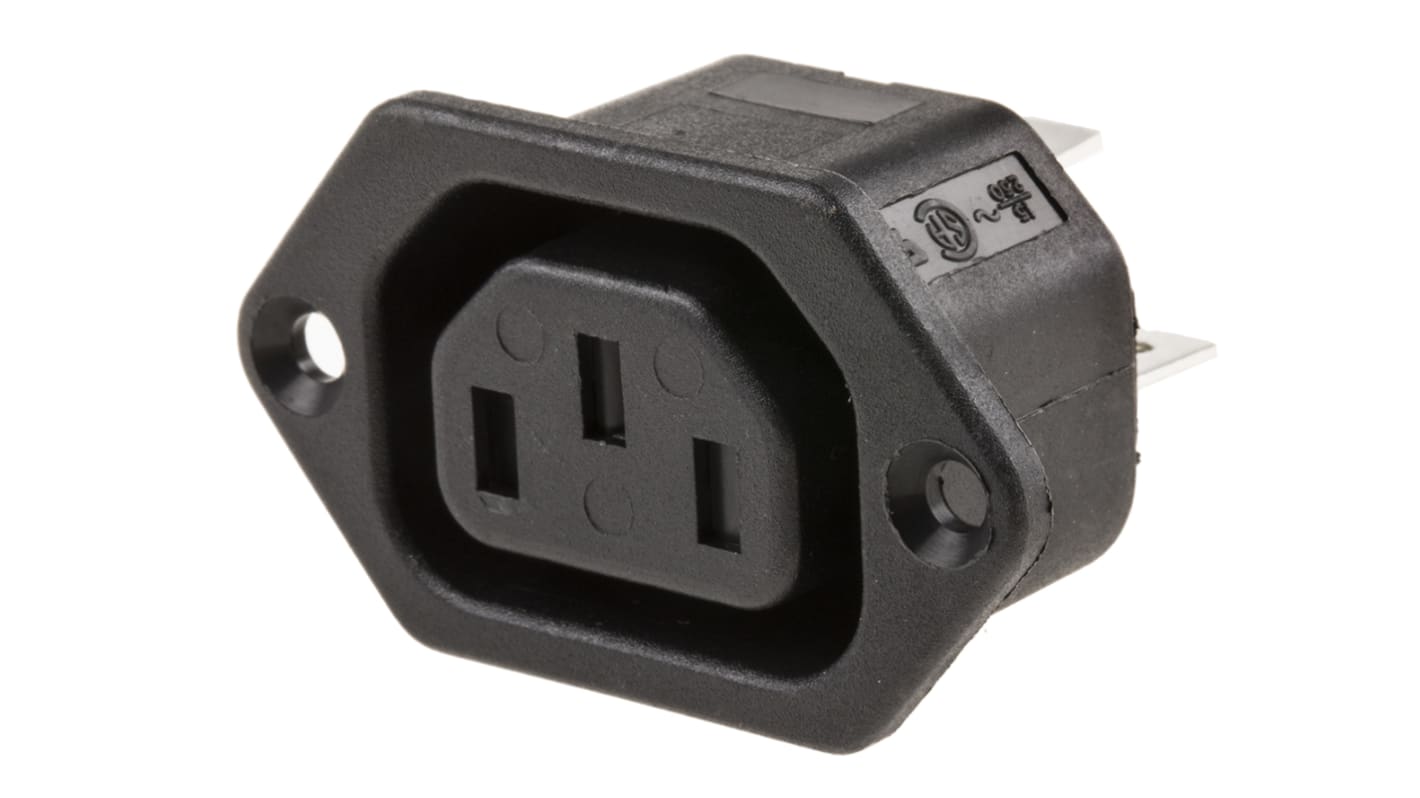

Bulgin C13 Panel Mount IEC Socket, 10A, 250 V ac

  • RS Stock No. 489-245
  • Mfr. Part No. PX0793/63
  • Manufacturer Bulgin
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TN
Product Details

10A Flange Fixing IEC320 Socket (C13)

Standard and shuttered sockets
250Vac/ 10A rated
Flammability rating UL94V-0
Use insulating boot stock no. 211-0907
For connector retaining clamp see 195-928.

Note

All of these plugs and sockets have a contact resistance of <10mΩ, and an insulation resistance of >103MΩ. Their operating temperature is -40°C to +70°C

//media.rs-online.com/t_line/L449310-01.gif
Specifications
Attribute Value
IEC Connector Type C13
Mounting Type Panel Mount
Gender Female
Current Rating 10A
Body Orientation Straight
Termination Method Solder
Voltage Rating 250 V ac
793 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 18.04
units
Per unit
1 - 24
MYR18.04
25 - 99
MYR17.40
100 - 249
MYR17.10
250 +
MYR16.78
