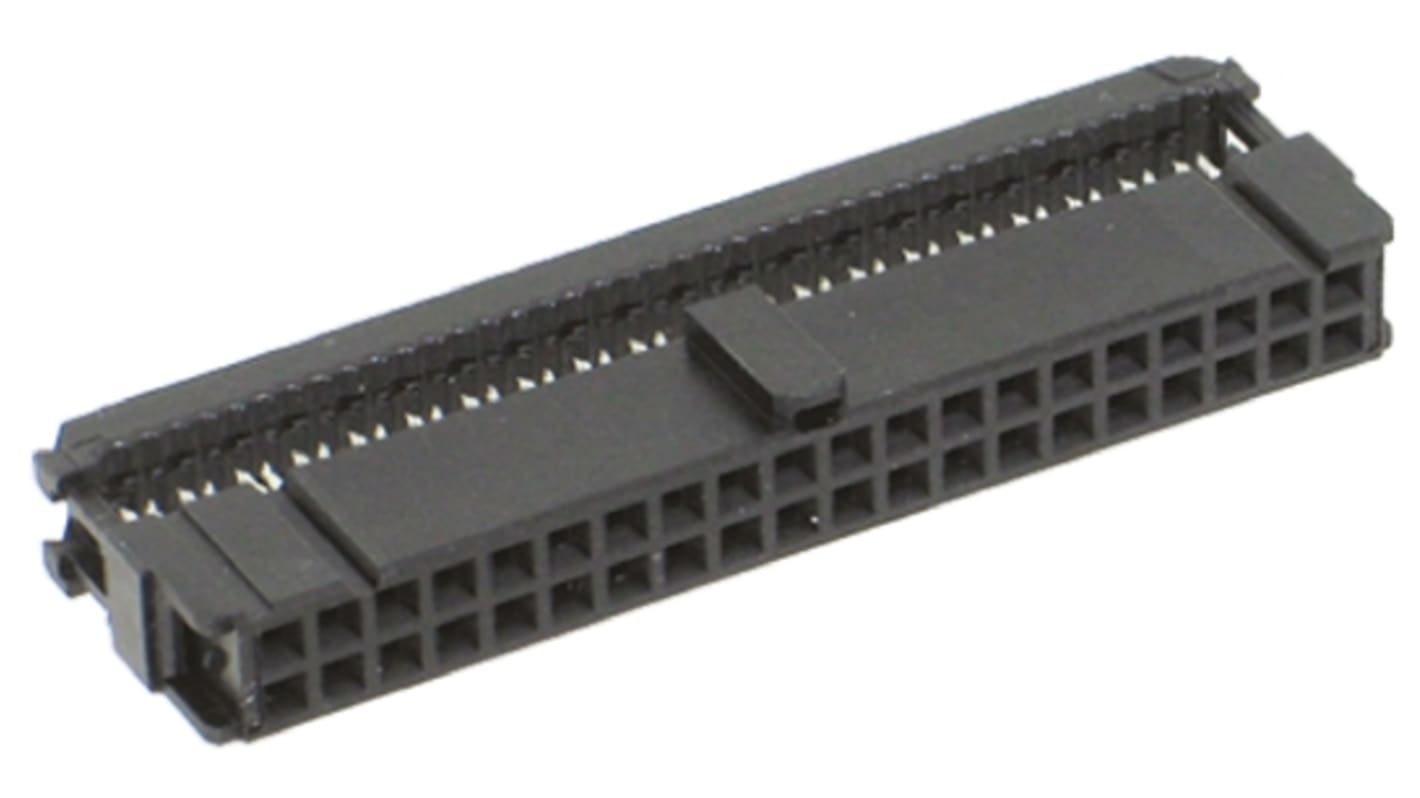

TE Connectivity 40-Way IDC Connector Socket for Cable Mount, 2-Row

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

TE Connectivity AMP-LATCH Novo 2.54mm IDC Ribbon Cable Connectors with Centre and Military Polarized Centres

AMP-LATCH Novo wire to board IDC ribbon cable connectors with centre and military polarized centres and a 2.54 x 2.54 mating grid for 1.27mm pitch ribbon cable. These AMP-LATCH Novo IDC ribbon cable connectors are made from UL 94V-0 thermoplastic with two rows of IDC duplex plated tuning fork style contacts accepting a wire size of 28-26 AWG. A cover is supplied with these AMP-LATCH Novo housing assemblies and optional strain reliefs are available, see stock number 454-2514 typically.
Part numbers X-1658621-X have 0.00038 gold plated contacts
Part numbers X-1658622-X have 0.00076 gold plated contacts

Additional Data
RS Stock Number Manufacturer Part Number Contact Plating
454-2362 1658621-1 0.00038 gold or gold flash over palladium-nickel 0.00038 min. total on post/pin mating end
756-0966 1658622-1 0.00076 gold or gold flash over palladium-nickel 0.00076 min. total on post/pin mating end
454-2378 1658621-2 0.00038 gold or gold flash over palladium-nickel 0.00038 min. total on post/pin mating end
454-2508 1658621-3 0.00038 gold or gold flash over palladium-nickel 0.00038 min. total on post/pin mating end
454-2479 1658621-4 0.00038 gold or gold flash over palladium-nickel 0.00038 min. total on post/pin mating end
454-2384 1658621-6 0.00038 gold or gold flash over palladium-nickel 0.00038 min. total on post/pin mating end
718-9377 1658622-7 0.00076 gold or gold flash over palladium-nickel 0.00076 min. total on post/pin mating end
454-2413 1658621-8 0.00038 gold or gold flash over palladium-nickel 0.00038 min. total on post/pin mating end
454-2429 1658621-9 0.00038 gold or gold flash over palladium-nickel 0.00038 min. total on post/pin mating end
454-2435 1-1658621-0 0.00038 gold or gold flash over palladium-nickel 0.00038 min. total on post/pin mating end
718-9361 1-1658621-2 0.00038 gold or gold flash over palladium-nickel 0.00038 min. total on post/pin mating end
782-8870 1-1658621-1 0.00038 gold or gold flash over palladium-nickel 0.00038 min. total on post/pin mating end
782-9930 1658622-2 0.00076 gold or gold flash over palladium-nickel 0.00076 min. total on post/pin mating end
782-5562 1658622-5 0.00076 gold or gold flash over palladium-nickel 0.00076 min. total on post/pin mating end
782-9934 1658622-8 0.00076 gold or gold flash over palladium-nickel 0.00076 min. total on post/pin mating end
782-9943 1658622-9 0.00076 gold or gold flash over palladium-nickel 0.00076 min. total on post/pin mating end

Standards

DIN 41651, DIN EN 60352-3//4

Specifications
Attribute Value
Number of Contacts 40
Number of Rows 2
Gender Female
Pitch 2.54mm
Mounting Type Cable Mount
Body Orientation Straight
Termination Method IDC
Current Rating 1A
Contact Plating Gold over Palladium Nickel, Tin over Nickel
Series AMP-LATCH Novo
Minimum Operating Temperature -65°C
Maximum Operating Temperature +105°C
Voltage Rating 250 V ac
Contact Material Phosphor Bronze
Housing Material Thermoplastic
