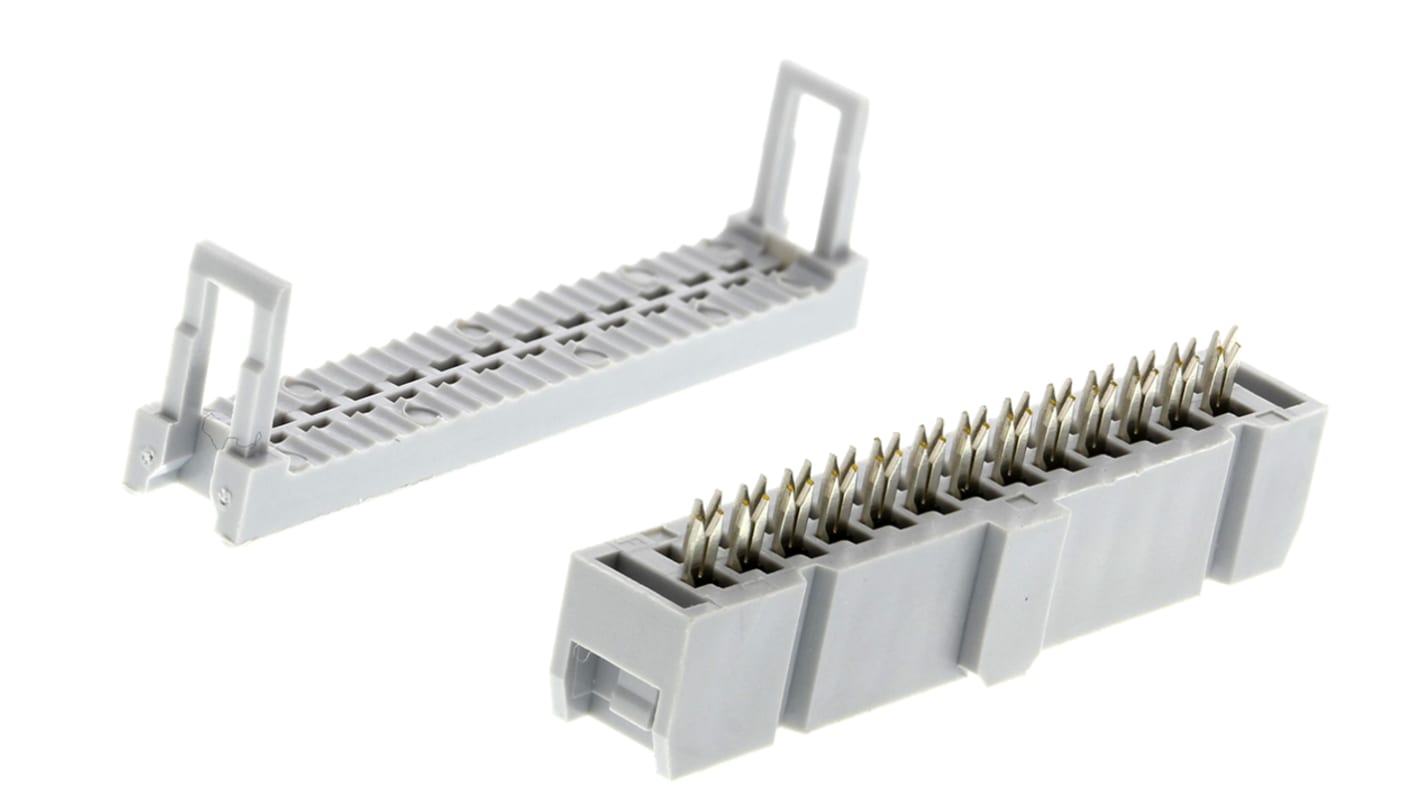

ASSMANN WSW 26-Way IDC Connector Socket for Cable Mount, 2-Row

  • RS Stock No. 674-1108
  • Mfr. Part No. AWP 26-7240-T
  • Manufacturer ASSMANN WSW
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Assmann 2.54mm IDC Ribbon Cable Socket Connectors

Double row IDC ribbon cable socket connectors with a 2.54 x 2.54mm pitch. These female IDC ribbon cable connectors have a PBT UL94V-0 housing with central polarization and gold plated IDC socket contacts.

Assmann IDC Connectors

Specifications
Attribute Value
Number of Contacts 26
Number of Rows 2
Gender Female
Pitch 2.54mm
Mounting Type Cable Mount
Body Orientation Right Angle
Termination Method IDC
Current Rating 1A
Contact Plating Gold over Nickel
Series AWP
Minimum Operating Temperature -55°C
Maximum Operating Temperature +105°C
Voltage Rating 250 V ac
Housing Material PBT
Contact Material Brass
1175 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 5)
MYR 2.174
units
Per unit
Per Pack*
5 - 120
MYR2.174
MYR10.87
125 - 370
MYR2.064
MYR10.32
375 - 995
MYR1.944
MYR9.72
1000 - 1995
MYR1.824
MYR9.12
2000 +
MYR1.76
MYR8.80
*price indicative
