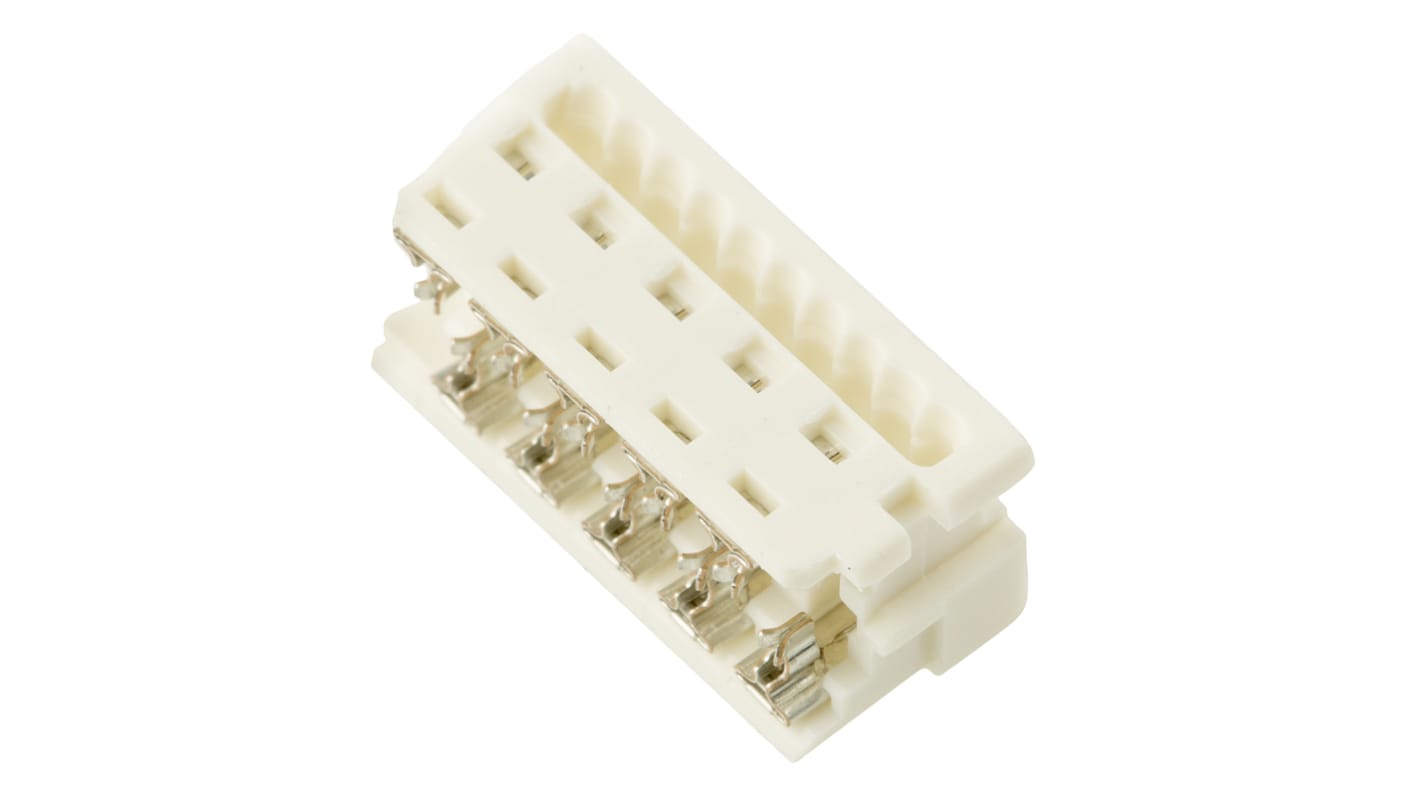

Molex 10-Way IDC Connector Socket for Cable Mount, 2-Row

  • RS Stock No. 324-8075
  • Mfr. Part No. 90327-0310
  • Manufacturer Molex
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IE
Product Details

IDT Housings

Single piece UL94V-0 housings for precise positioning of IDC cable
4 point contact ensures reliability
For tooling see stock no. 542-8093

Approvals

UL (E29179); CSA (LR19980-181)

Approvals

UL (E29179); CSA (LR19980-181)

1.27mm Wire to Board IDT - Molex Picoflex PF-50 Series

The Picoflex Series from Molex is a reliable range of Wire to Board connectors offering designers more options for high-density applications where standard discrete wire and flat flexible connectors are not appropriate. Picoflex IDT connectors are ideal for automotive and consumer electronics industries.

50% space saving compared with traditional pitch
Pre-terminated cable assemblies available
Lower profile (mated height only 6.4mm)
Excellent polarisation features and integral strain relief
High resistance to vibration/shock

Specifications
Attribute Value
Number of Contacts 10
Number of Rows 2
Gender Female
Pitch 1.27mm
Mounting Type Cable Mount
Body Orientation Right Angle
Termination Method IDC
Current Rating 1.2A
Contact Plating Tin over Nickel
Series Picoflex
Minimum Operating Temperature -40°C
Maximum Operating Temperature +105°C
Voltage Rating 250 V ac
Contact Material Phosphor Bronze
Housing Material PET
Temporarily out of stock - back order for despatch 01/12/2020, delivery within 4 working days from despatch date
Price Each (In a Pack of 5)
Was MYR2.896
MYR 2.784
units
Per unit
Per Pack*
5 - 120
MYR2.784
MYR13.92
125 - 370
MYR2.744
MYR13.72
375 - 995
MYR2.686
MYR13.43
1000 - 1995
MYR2.638
MYR13.19
2000 +
MYR2.578
MYR12.89
*price indicative
