HARWIN 40-Way IDC Connector Socket for Cable Mount, 2-Row

  • RS Stock No. 161-3531
  • Mfr. Part No. M50-9102042
  • Manufacturer HARWIN
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

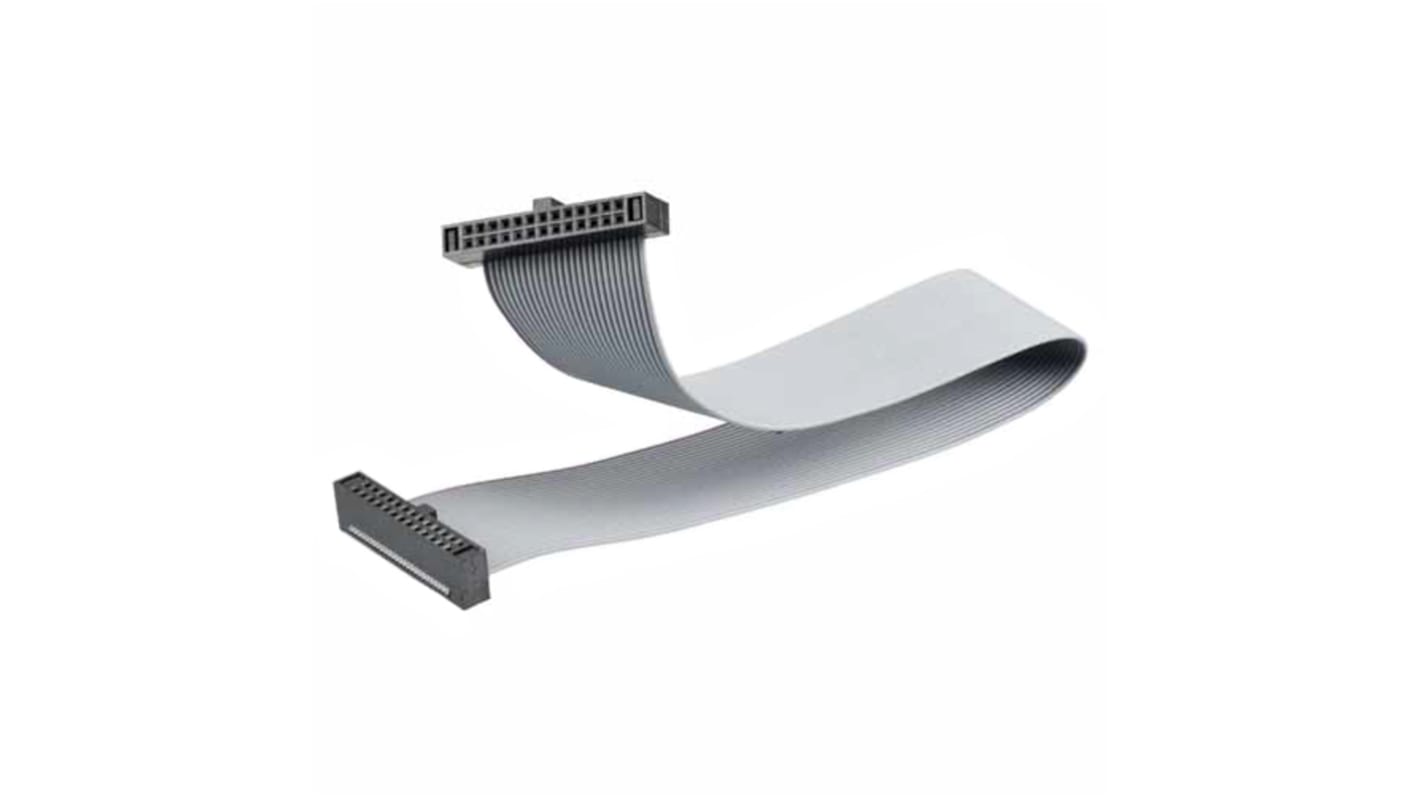

Female-to-Female IDC Cable Assembly (Socket to Socket), 150mm cable (0.635mm pitch ribbon) - 40 contacts (20+20).
Manufactured with M50-3302042 IDC connectors.

Specifications
Attribute Value
Number of Contacts 40
Number of Rows 2
Gender Female
Pitch 1.27mm
Mounting Type Cable Mount
Body Orientation Vertical
Termination Method Solder
Current Rating 500mA
Contact Plating Gold, Tin over Nickel
Series Archer M50
Minimum Operating Temperature -20°C
Maximum Operating Temperature +105°C
Voltage Rating 300 V ac
Contact Material Phosphor Bronze
Housing Material PBT
56 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 46.18
units
Per unit
1 - 9
MYR46.18
10 - 49
MYR42.16
50 - 99
MYR38.87
100 - 249
MYR36.06
250 +
MYR33.57
