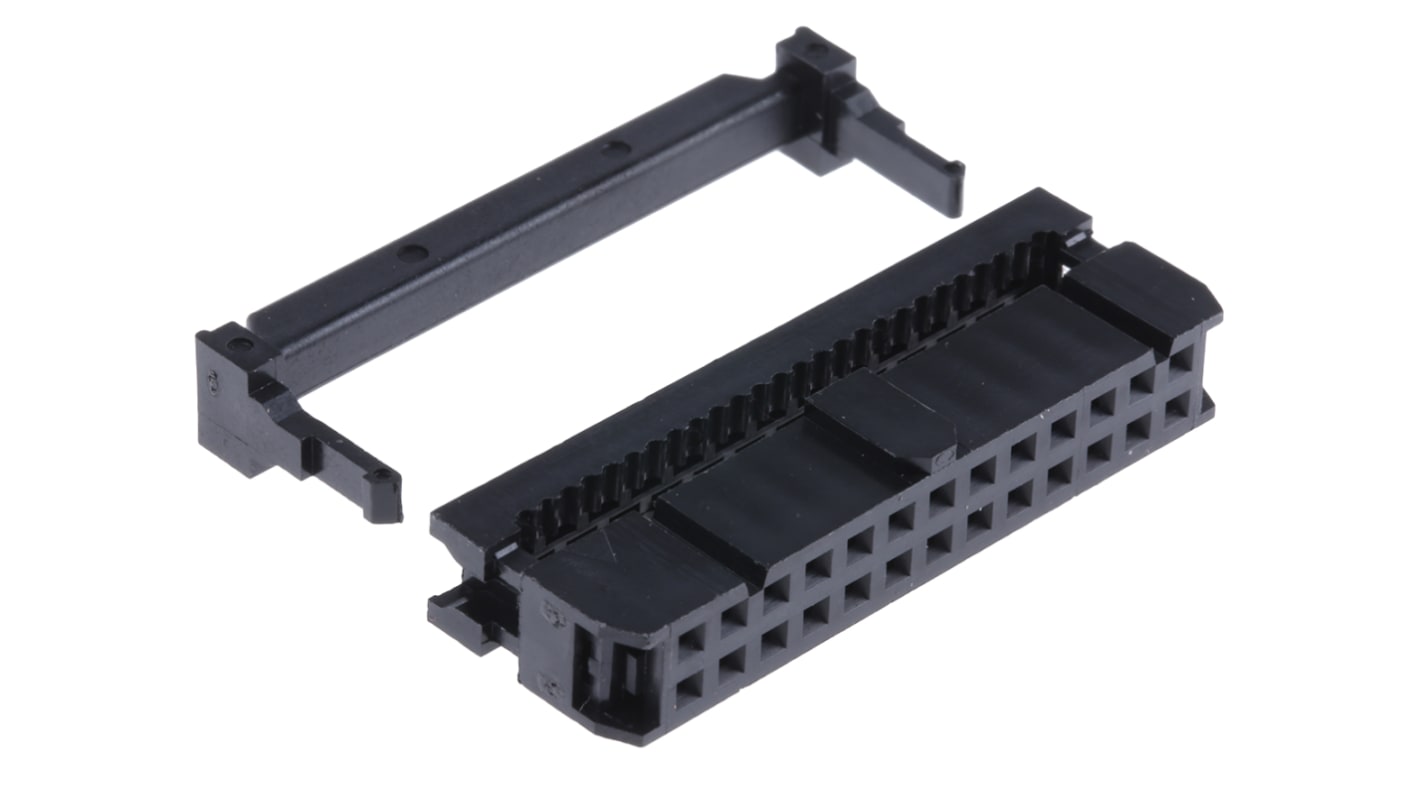

Wurth Elektronik 26-Way IDC Connector Socket for Cable Mount, 2-Row
- RS Stock No.:
- 121-6788
- Mfr. Part No.:
- 61202623021
- Manufacturer:
- Wurth Elektronik
Temporarily out of stock - back order for despatch 29/04/2024, delivery within 4 working days from despatch date
Added
Price Each (In a Tray of 42)
MYR7.184
| Units | Per Unit | Per Tray* |
| 42 - 42 | MYR7.184 | MYR301.728 |
| 84 - 126 | MYR7.073 | MYR297.066 |
| 168 + | MYR6.935 | MYR291.27 |
| *price indicative | ||
- RS Stock No.:
- 121-6788
- Mfr. Part No.:
- 61202623021
- Manufacturer:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
Product Details
WR-BHD 2.54mm IDC Ribbon Cable Socket Connectors with Strain Relief
WR-BHD cable mount IDC ribbon cable receptacle connectors with a 2.54mm pitch. These wire to board IDC 2.54mm ribbon cable receptacle connectors have a black UL04-V0 PBT insulator, gold plated copper alloy female socket contacts, a polarizing key and are supplied with additional strain reliefs.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
2.54mm Wurth WR-BHD Range
A range of Wurth WR-BHD Box Headers and IDC Sockets.
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 26 |
| Number of Rows | 2 |
| Gender | Female |
| Pitch | 2.54mm |
| Mounting Type | Cable Mount |
| Body Orientation | Straight |
| Termination Method | IDC |
| Current Rating | 1A |
| Contact Plating | Gold |
| Series | WR-BHD |
| Minimum Operating Temperature | -40.0°C |
| Maximum Operating Temperature | 125.0°C |
| Voltage Rating | 250.0 V ac |
| Contact Material | Copper |
| Housing Material | PBT |
