Wurth Elektronik 10-Way IDC Connector Plug for Cable Mount, 2-Row

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

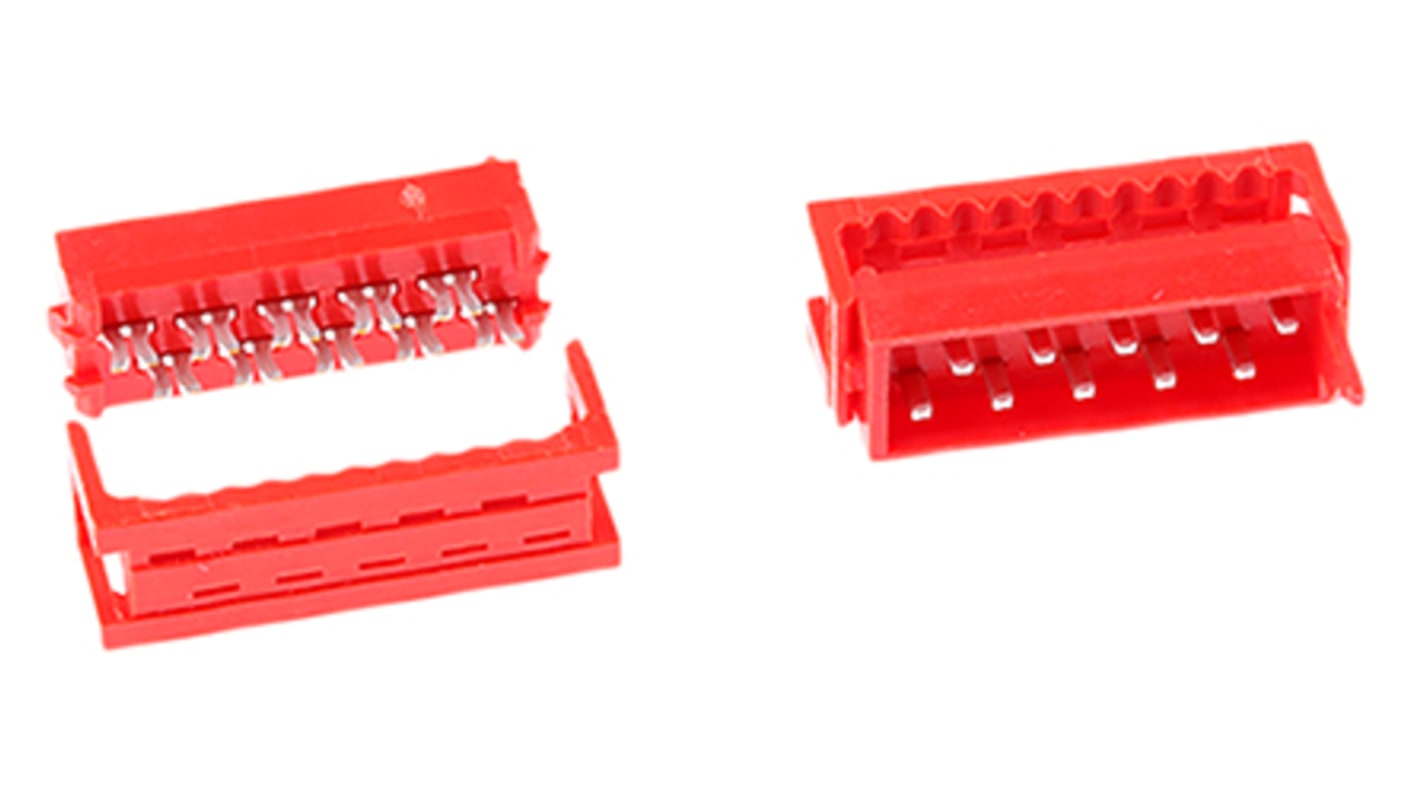

WR-MM Male IDC Cable Mount Connectors

2.54mm staggered pitch (1.27mm pseudo pitch) wire-to-board male IDC cable mount MiniModule connectors for use with ribbon cable with a 1.27mm pitch. These WR-MM series 2.54mm cable mount MiniModule male IDC connectors have a low profile, compact design with a red UL94-V0 PBT body and phosphor bronze contacts with a matte tin over nickel plating.

Note

For mating products see stock numbers 771-8082, 771-8105, 771-8149 and 771-8127 typically

2.54mm Wurth WR-MM Range

The Wurth WR-MM MiniModule Connector range is a compact low profile system that can be used in Board to Board or Wire to Board applications. The staggered PCB pitch of the Headers and Sockets for the WR-MM MiniModule Connector range is 2.54 mm with the IDC connectors and the Transition connectors having a Ribbon Cable pitch of 1.27 mm.

Specifications
Attribute Value
Number of Contacts 10
Number of Rows 2
Gender Male
Pitch 1.27 mm, 2.54 mm
Mounting Type Cable Mount
Body Orientation Straight
Termination Method IDC
Current Rating 1A
Contact Plating Tin over Nickel
Series WR-MM
Minimum Operating Temperature -40°C
Maximum Operating Temperature +105°C
Contact Material Phosphor Bronze
Housing Material PBT
216 In Global stock for delivery within 4 - 6 working days
Price Each (In a Tube of 36)
MYR 4.77
units
Per unit
Per Tube*
36 - 72
MYR4.77
MYR171.72
108 - 144
MYR4.40
MYR158.40
180 - 324
MYR3.756
MYR135.216
360 - 864
MYR3.55
MYR127.80
900 +
MYR3.482
MYR125.352
*price indicative
