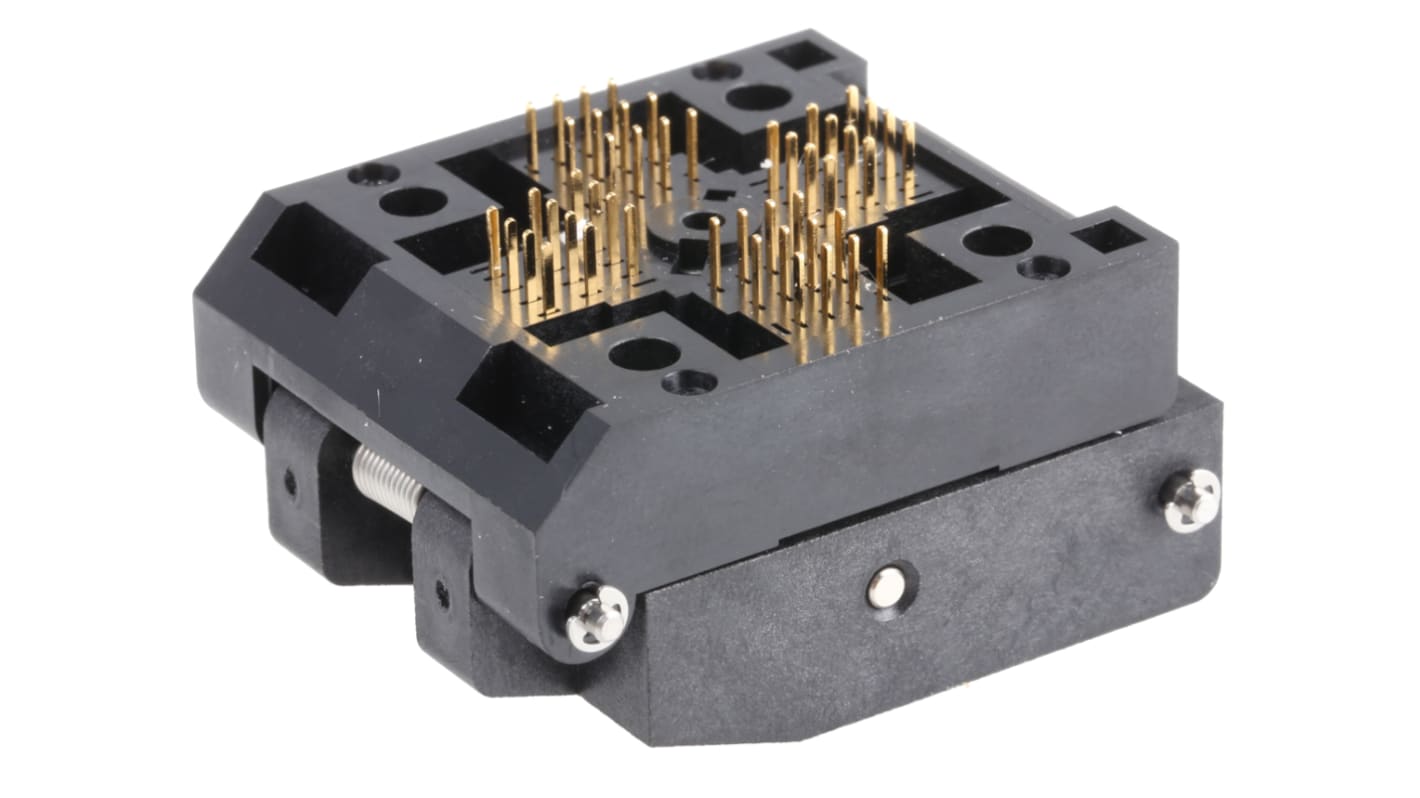

Yamaichi 0.5mm Pitch 48 WaySMT QFP Test IC Socket
- RS Stock No.:
- 372-3403
- Mfr. Part No.:
- IC51-0484-806
- Manufacturer:
- Yamaichi
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR334.87
| Units | Per Unit |
| 1 - 5 | MYR334.87 |
| 6 + | MYR326.64 |
- RS Stock No.:
- 372-3403
- Mfr. Part No.:
- IC51-0484-806
- Manufacturer:
- Yamaichi
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
QFP Test Sockets - Clamshell
Clamshell test sockets for QFP's
Spring loaded hinged lid latches to retain ICs
Easy, repeatable access for test purposes
High reliability, durability and temperature range
Range supports a variety of pitches
Body material Glass Filled PES; Glass Filled PEI
Contact material Beryllium Copper
Contact plating Gold
Insulation Resistance 1000 MΩ (At 500 Vdc)
Contact resistance 30mΩ (at 10mA)
Operating temperature -55°C to 170°C
Durability 10000 insertions
Spring loaded hinged lid latches to retain ICs
Easy, repeatable access for test purposes
High reliability, durability and temperature range
Range supports a variety of pitches
Body material Glass Filled PES; Glass Filled PEI
Contact material Beryllium Copper
Contact plating Gold
Insulation Resistance 1000 MΩ (At 500 Vdc)
Contact resistance 30mΩ (at 10mA)
Operating temperature -55°C to 170°C
Durability 10000 insertions
Specifications
Attribute | Value |
|---|---|
| IC Socket Type | Test Socket |
| Package Type | QFP |
| Gender | Female |
| Number of Contacts | 48 |
| Pitch | 0.5mm |
| Body Orientation | Straight |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold over Nickel |
| Socket Mounting Type | Surface Mount |
| Termination Method | Solder |
| Housing Material | PEI, PES, PSU |
