RS PRO Stainless Steel Hydraulic Ball Valve NPT 1/4
- RS Stock No.:
- 324-4988
- Manufacturer:
- RS PRO
8 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR634.69
| Units | Per Unit |
| 1 - 5 | MYR634.69 |
| 6 - 29 | MYR623.48 |
| 30 + | MYR513.11 |
- RS Stock No.:
- 324-4988
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details

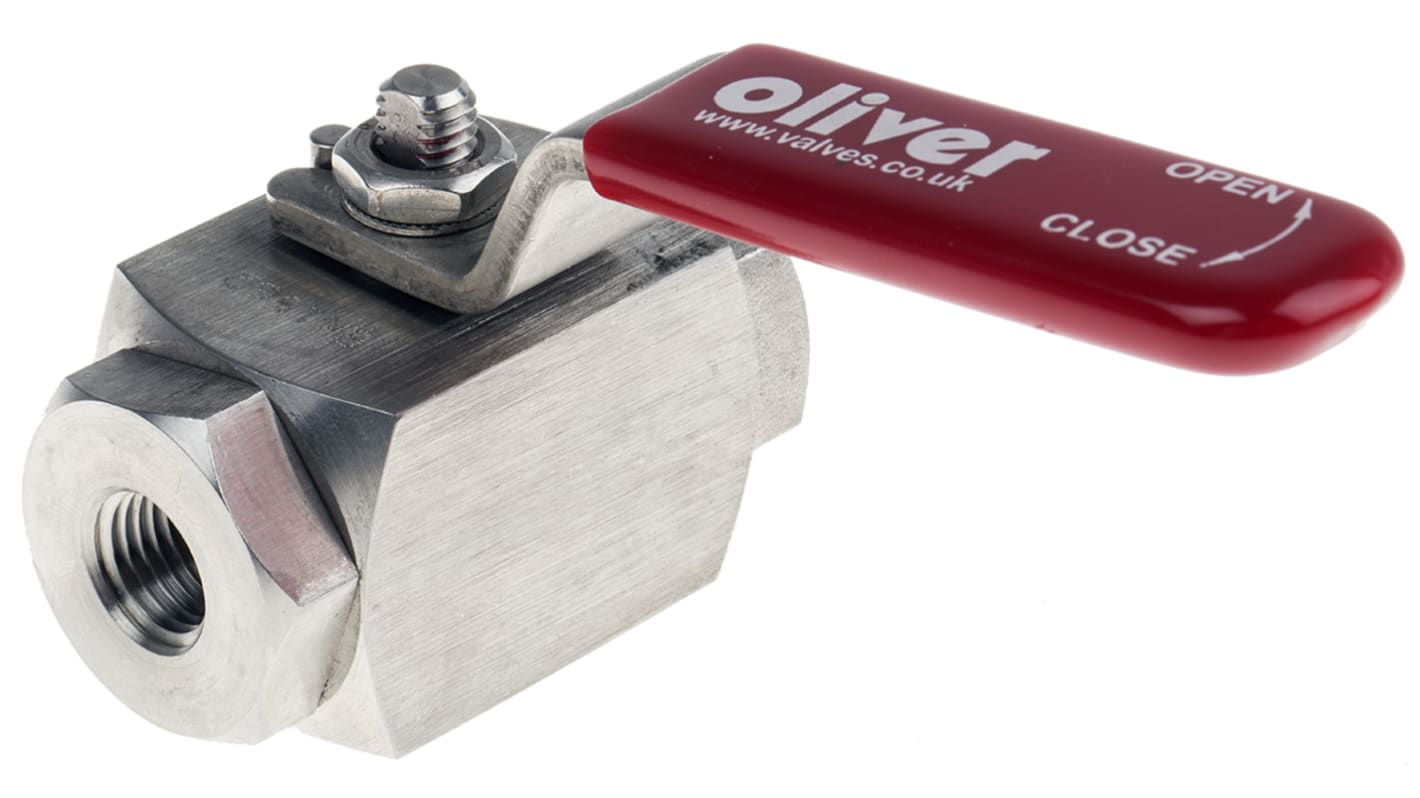

Stainless Steel Ball Valve
316 stainless steel 2 way ball valves with 3 ball valve options. Valves can be locked in either the open or closed position, panel mount which is cost effective and there is also a firesafe/antistatic option.
Reduced bore design
Available in BSP and NPT sizes
Suitable for use with water and oil
PTFE seals
Available in BSP and NPT sizes
Suitable for use with water and oil
PTFE seals
Specifications
Attribute | Value |
|---|---|
| Manufacturer Series | B6BI |
| Number of Ports | 2-way |
| Connection Port Thread | NPT 1/4 |
| Body Material | Stainless Steel |
| Seal Material | PTFE (Stem Seal), Teflon/kel-F (Ball Seal) |
| Maximum Operating Pressure | 6000 psi |
| Thread Standard | NPT |
| Thread Size | 1/4in |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +120°C |
