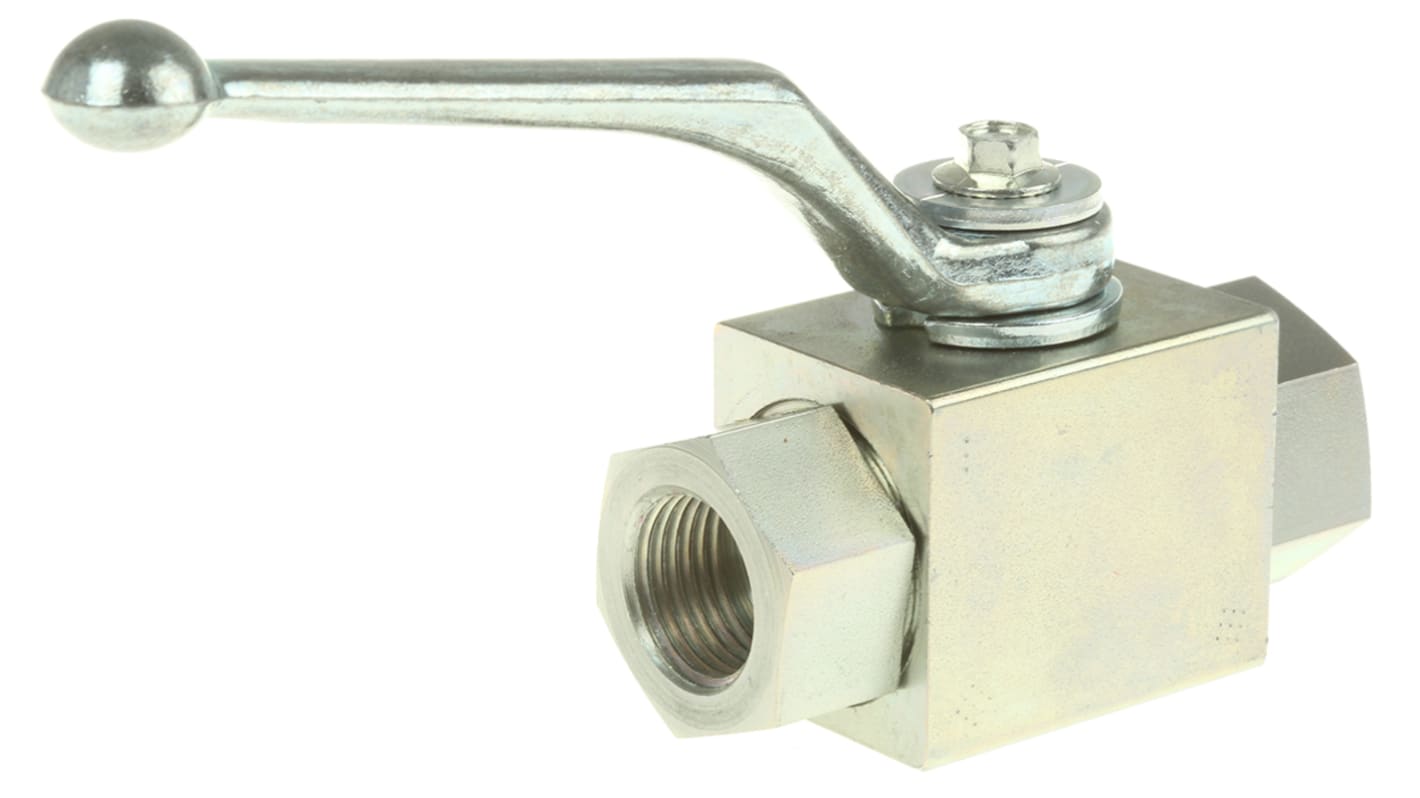

RS PRO Zinc Passivated Steel Hydraulic Ball Valve G 1/2

RS Stock No.:: 297-5849
Manufacturer:: RS PRO

RS PRO Zinc Passivated Steel Hydraulic Ball Valve G 1/2

27 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR186.40

Units	Per Unit
1 - 5	MYR186.40
6 - 29	MYR182.68
30 +	MYR150.35

RS Stock No.:: 297-5849
Manufacturer:: RS PRO

Technical data sheets

RS Pro Datasheet

Legislation and Compliance

RoHS Status: Not Applicable

COO (Country of Origin):: DE

Product Details

RS PRO Zinc Passivated Steel Hydraulic Ball Valve G 1/2

This hydraulic valve from RS PRO has a zinc-passivated carbon steel body to maximise corrosion resistance. This means it's safe to use with water or oil and is a good choice for use in harsh settings.

The valve has a robust polyoxymethylene with molybdenum disulfide (POM-Mos2) ball seal for increased durability. It also has a rustproof brass ball and an oil-resistant nitrile rubber stem seal. Its parallel thread ports provide a tight connection in high-pressure systems.

This two-way valve is appropriate for use on hydraulic pipelines up to 500 bar, such as those on processing control systems and industrial power tools. This type of valve can be found in the utility, automotive and food industries.

Features and Benefits

Zinc-passivated steel body material

G 1/2 connection port thread

Maximum operating pressure of 500 bar

Operating temperature range of -20°C to +100°C

Two-way port

Stem seal material is nitrile rubber

Seal material is POM-Mos2

Thread size of 1/2 in

Thread standard is G

Specifications

Attribute	Value
Manufacturer Series	BKH
Number of Ports	2-way
Connection Port Thread	G 1/2
Body Material	Zinc Passivated Steel
Seal Material	Nitrile Rubber (Stem Seal), POM-Mos2 (Ball Seal)
Maximum Operating Pressure	500 bar
Thread Standard	G
Thread Size	1/2in
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+100°C
