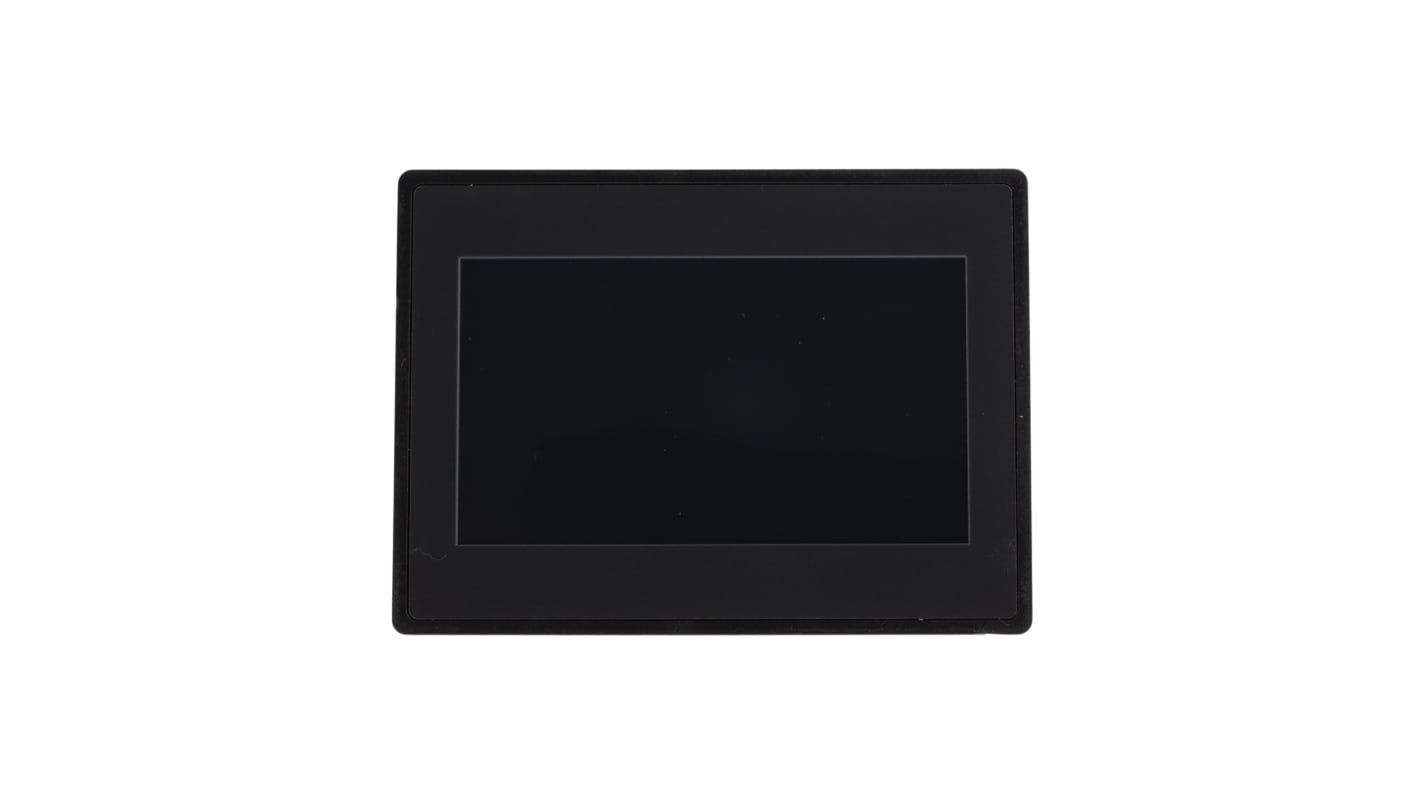

Phoenix Contact BTP 2043W Series Touch Screen HMI - 4.3 in, TFT Display, 480 x 272

RS Stock No.:: 181-1058
Distrelec Article No.:: 303-47-945
Mfr. Part No.:: 1050387
Manufacturer:: Phoenix Contact

Phoenix Contact BTP 2043W Series Touch Screen HMI - 4.3 in, TFT Display, 480 x 272

Subtotal (1 unit)*

MYR2,068.03

FREE delivery for orders over RM 500.00

In Stock

2 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR2,068.03

*price indicative

RS Stock No.:: 181-1058
Distrelec Article No.:: 303-47-945
Mfr. Part No.:: 1050387
Manufacturer:: Phoenix Contact

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Phoenix Contact
	Manufacturer Series	BTP 2043W
	Display Type	TFT
	Manufacturer Part No.	1050387
	Display Resolution	480 x 272
	Number of Ports	5
	Port Type	RJ45 Ethernet
	Processor Type	ARM9
	Processor Speed	454MHz
	Onboard Memory	128 MB
	Backlighting	Yes
	Display Size	4.3 in
	IP Rating	IP20, IP66
	Maximum Operating Temperature	+50°C
	Supply Voltage	24 V dc
	Depth	89mm
	Length	120mm
	Minimum Operating Temperature	0°C
	Dimensions	120 x 5 x 89 mm
	Width	5mm
	Display Colour	Colour

	Select all
	Brand Phoenix Contact
	Manufacturer Series BTP 2043W
	Display Type TFT
	Manufacturer Part No. 1050387
	Display Resolution 480 x 272
	Number of Ports 5
	Port Type RJ45 Ethernet
	Processor Type ARM9
	Processor Speed 454MHz
	Onboard Memory 128 MB
	Backlighting Yes
	Display Size 4.3 in
	IP Rating IP20, IP66
	Maximum Operating Temperature +50°C
	Supply Voltage 24 V dc
	Depth 89mm
	Length 120mm
	Minimum Operating Temperature 0°C
	Dimensions 120 x 5 x 89 mm
	Width 5mm
	Display Colour Colour

Datasheet 1050387

COO (Country of Origin):: IN

Phoenix Contact HMI

The Phoenix Contact BTP 2043W touch screen HMI is a 4.3in 480x272 pixels colour display. It has easy connectivity to a wide range of control systems thanks to a large range of available drivers. It has been developed for basic applications with an attractive price-performance ratio. It has many features for efficiently dealing with industrial requirements that make it an ideal man to machine interface.

Features and Benefits

• ARM processor for high-speed processing
• Cost efficient
• Elegant look
• Multiple display sizes available
• USB memory stick, operating stylus and PCB connector as accessories
• Wide range of communication protocols supported
• Windows operating system for user friendly experience

Applications

• Automotive
• Factory automation
• Fuel stations
• IOT networks
• Public transportation
• Warehouse inventory control

Certifications

• IP20 rated
• IP66 rated
• UL listed
