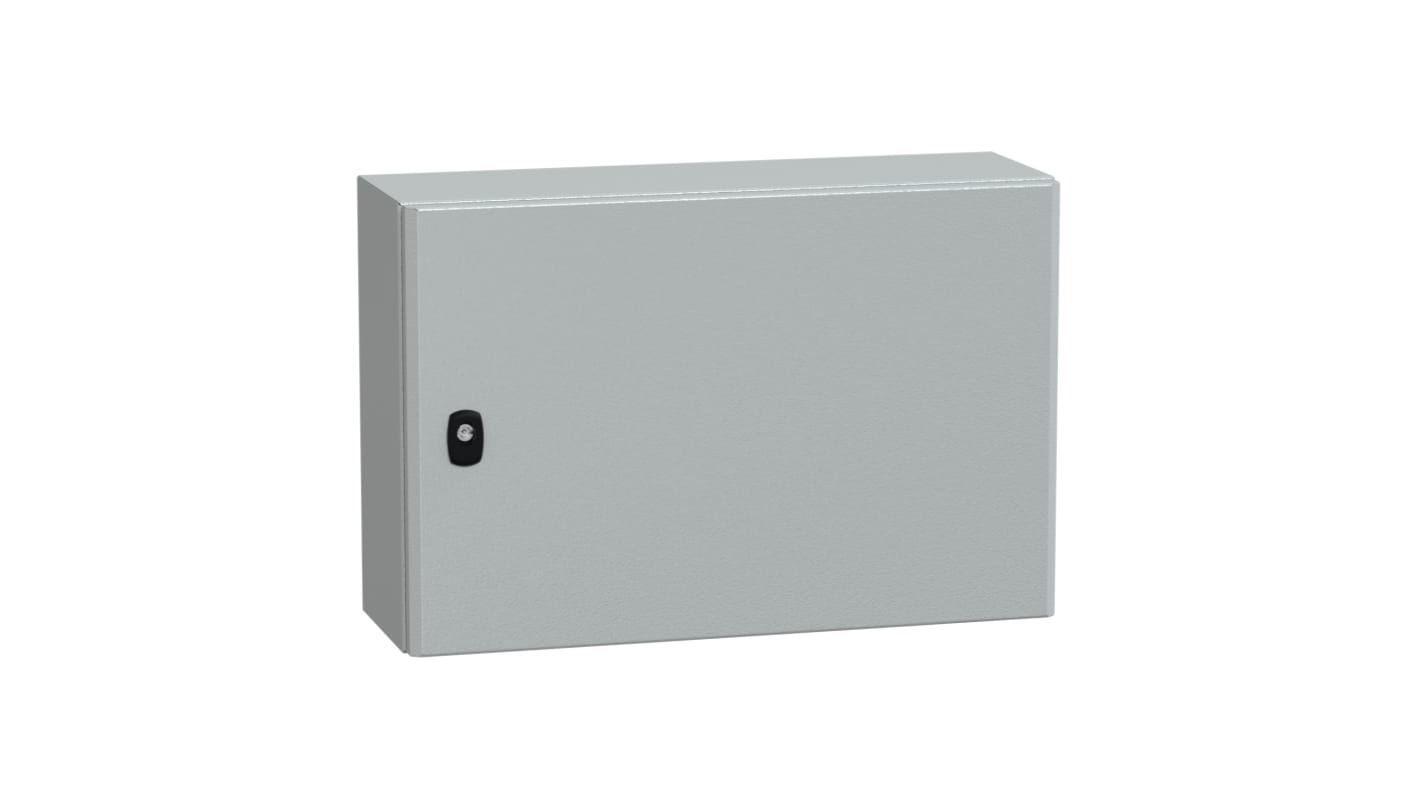

Schneider Electric PanelSet S3D Series Grey Steel Enclosure, IP66, IK10, Grey Lid, 600 x 400 x 200mm

Standard Configuration for the S3D Multi-Function Control Box
● Closed box
● The body of the control box is formed by bending a whole steel sheet and then welding

● Standard double-bit lock cylinder
● Standard handle key
● Standard front door (reinforced) or visible glass front door
(Tempered glass thickness 4 mm)
● Polyurethane (PU) seal on inside of door
● Galvanised mounting plate
● Incoming line baseplate
IP protection class:(EN60529)
● IP66 for single door control box
IK resistance to external mechanical impact:(EN50102)
● Steel box IK 10
●Steel control box with glass front door:IK 08
Surface Treatment
● Textured surface, polyester powder coating
Materials
● Box and front door:Cold-rolled steel
● Mounting plate:Galvanised steel
Colour:RAL 7032

EN50298/UL/CE/DNV

The Schneider Electric PanelSet S3D wall mounted steel enclosure with 2 plain doors.it has 1199 mm height, 1000 mm width and 400 mm depth. It is 3-point closure system with handle. It is made up of steel. It has IP55 degree of protection.

Mercury free
RoHS compliant
IK10 degree of protection
IP66 degree of protection
