Schneider Electric Thalassa TBP Series Grey Polycarbonate General Purpose Enclosure, IP66, IK08, Grey Lid, 225 x 175 x

RS Stock No.:: 221-0823
Mfr. Part No.:: NSYTBP241910H
Manufacturer:: Schneider Electric

Schneider Electric Thalassa TBP Series Grey Polycarbonate General Purpose Enclosure, IP66, IK08, Grey Lid, 225 x 175 x

Subtotal (1 unit)**

MYR233.78

Stock check temporarily unavailable - call for stock availability

FREE delivery for orders over MYR700.00

Units	Per Unit
1 +	MYR233.78

**price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 221-0823
Mfr. Part No.:: NSYTBP241910H
Manufacturer:: Schneider Electric

Schneider Electric Thalassa TBP Polycarbonate Industrial Wall Box Enclosures.

From Schneider Electric the Thalassa TBP wall box enclosures provide protection for small components with various applications plus offering 2 types of cover, Opaque and Clear Transparent. Excellent for protecting components from liquids as is IP 66 rated to NEMA 4-4X (IK 08 mechanical resistance) and is Type II double electrical insulated with Glow wire resistance to 960°C. The Thalassa TBP offers you a choice of 36 plus different models in various sizes.

Thalassa TBP Wall Box Enclosure Features and Benefits.

Certification to UL 508A.

Covers lock by 4 plastic captive screws (course thread outside seal).

Choose from over 30 plus Thalassa TBP models.

Low covers from 10 mm and 20 mm.

High covers from 40 mm, 60 mm, and 80 mm.

2 x Types of cover (opaque and transparent).

Fixing studs for enclosure and cover.

Easy to machine.

Protection.

Watertight to IP 66, NEMA 4-4X.

Polyurethane gasket on the wall box enclosure lid.

Double electrical insulation, Type II.

Glow wire resistance: 960°C.

Operating temperature -25°C to +80°C.

IK 08 Mechanical resistance.

Solid hard-wearing rounded design.

Applications.

Thalassa TBP Wall Box enclosure has many applications where protecting components is important in all environments.

Junction boxes, protecting electronic cards, where you require to protect from dust or liquid including at sea in harsh conditions.

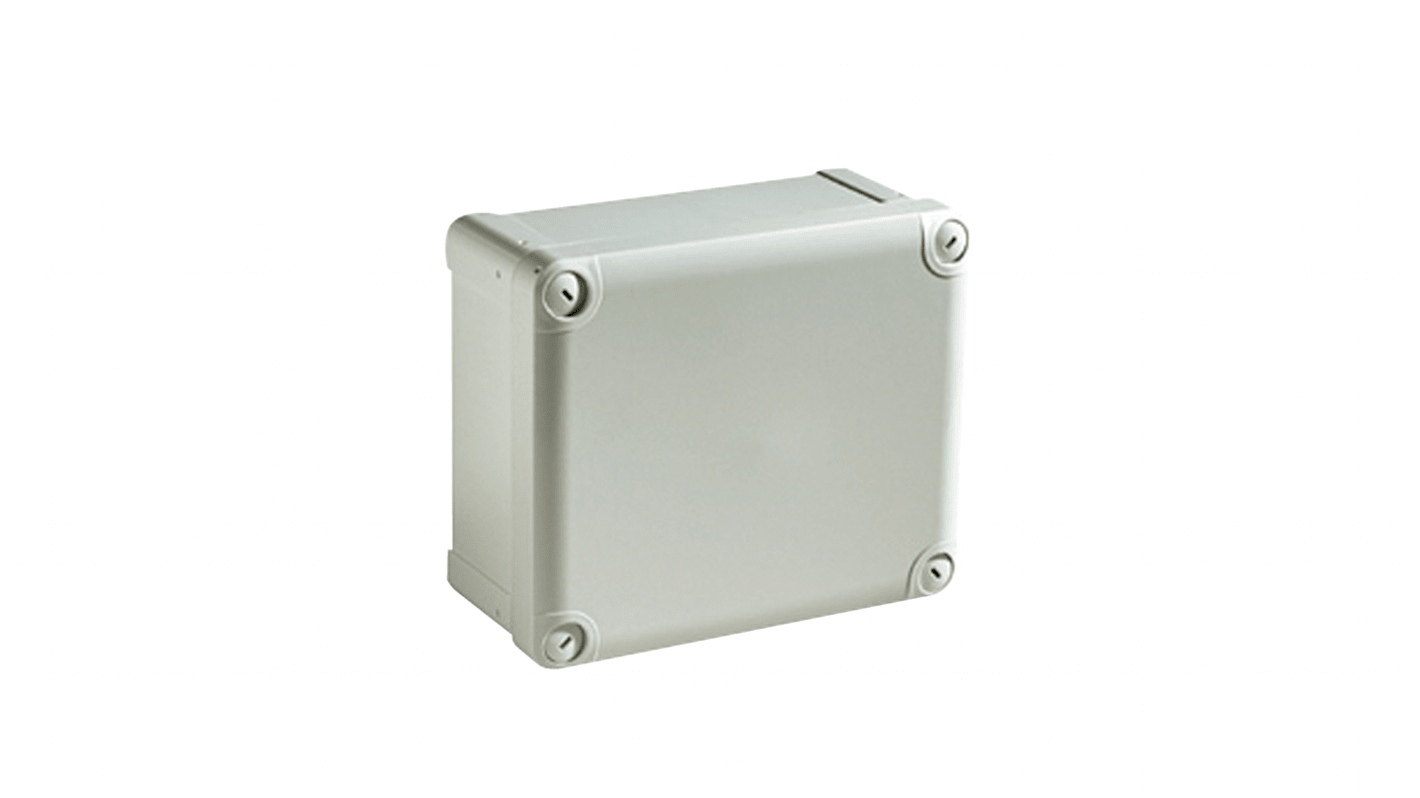

NSYTBP241910H Thalassa TBP General Purpose Industrial Polycarbonate Wall Box Enclosure.

Thalassa TBP industrial box enclosure.

Wall mounted.

Outdoor (with canopy or shelter and anticondensation valve)

One-piece moulded body.

High Plain front cover.

Fixing with Plastic screws.

Locked by Outside sealed area – Flat captive screw.

Cover and captive screws are removeable.

Made from Grey RAL 7035, Polycarbonate.

Insulation class II.

IP66 conforming to NEMA 4.4X.

IK08 conforming to IEC 62262.

Fire resistant to 960°.

Internal Dimensions.

Height 225mm, Width 175 mm, Depth 100 mm.

What is included?

1 x Enclosure body, 1 x Enclosure Cover, 4 x Cover screws.

Approvals

TÜV, UL.

Standards

IEC 62208, UL 508 A.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Manufacturer	Schneider Electric
	Body Material	Polycarbonate
	External Length	100 mm
	External Height	225 mm
	External Width	175 mm
	External Dimensions	225 x 175 x 100 mm
	IP Rating	IP66
	Range	Thalassa
	Colour	Grey
	Lid Colour	Grey
	Series	Thalassa TBP
	IK Rating	IK08
	Better World Verification	Green Premium
	Better World Product	Yes
	RAL Code	RAL 7035

	Select all
	Manufacturer Schneider Electric
	Body Material Polycarbonate
	External Length 100 mm
	External Height 225 mm
	External Width 175 mm
	External Dimensions 225 x 175 x 100 mm
	IP Rating IP66
	Range Thalassa
	Colour Grey
	Lid Colour Grey
	Series Thalassa TBP
	IK Rating IK08
	Better World Verification Green Premium
	Better World Product Yes
	RAL Code RAL 7035
